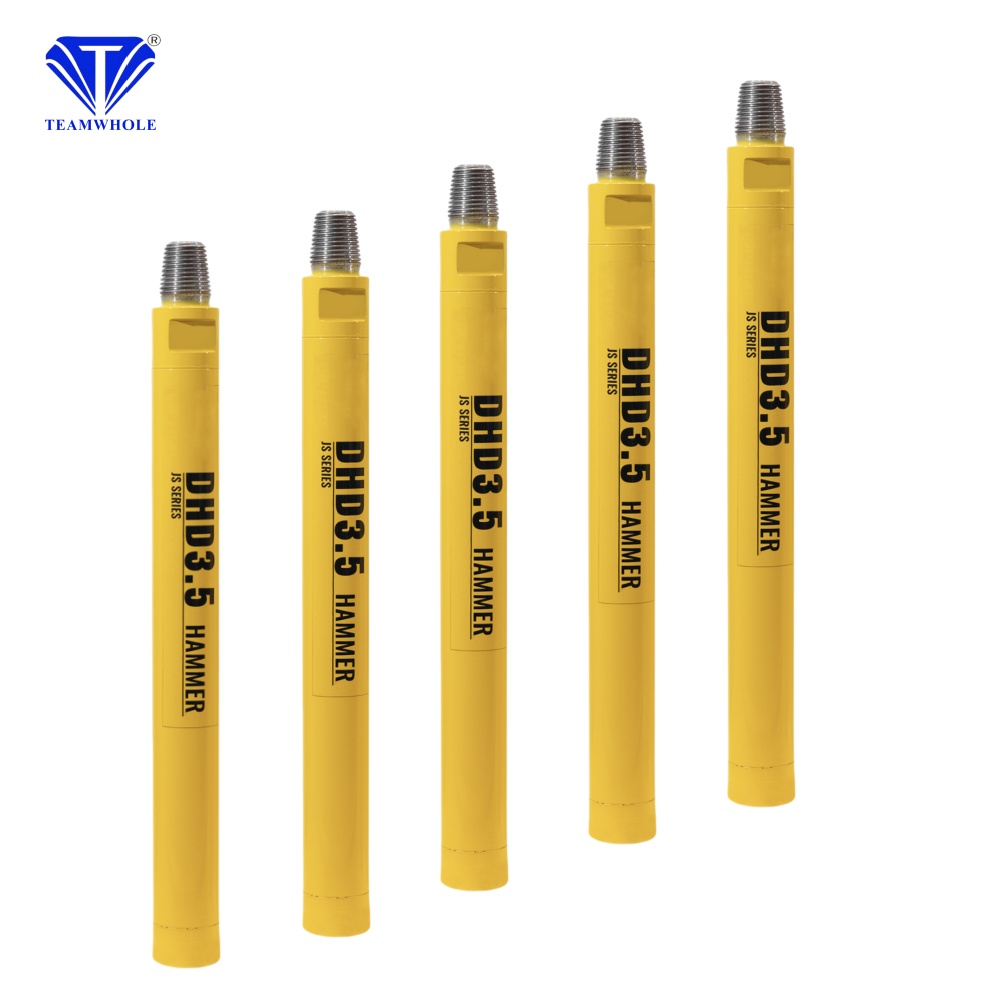

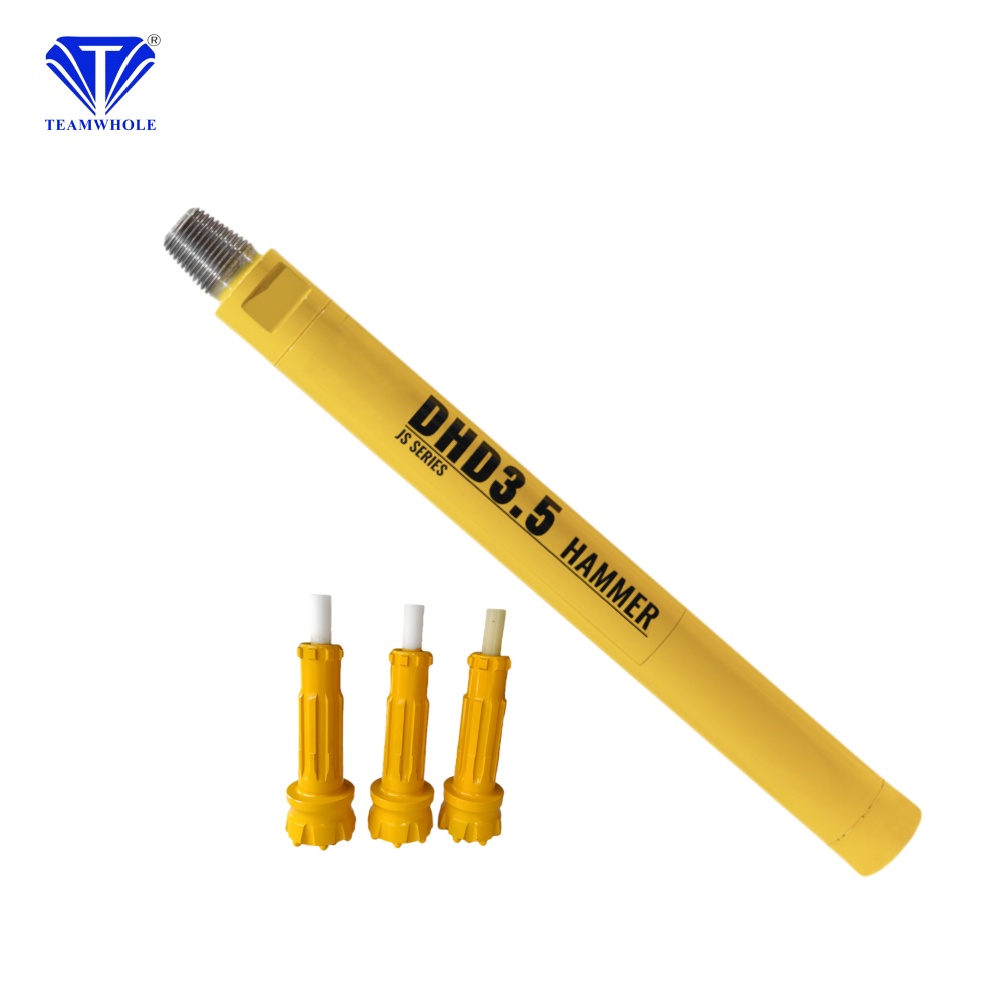

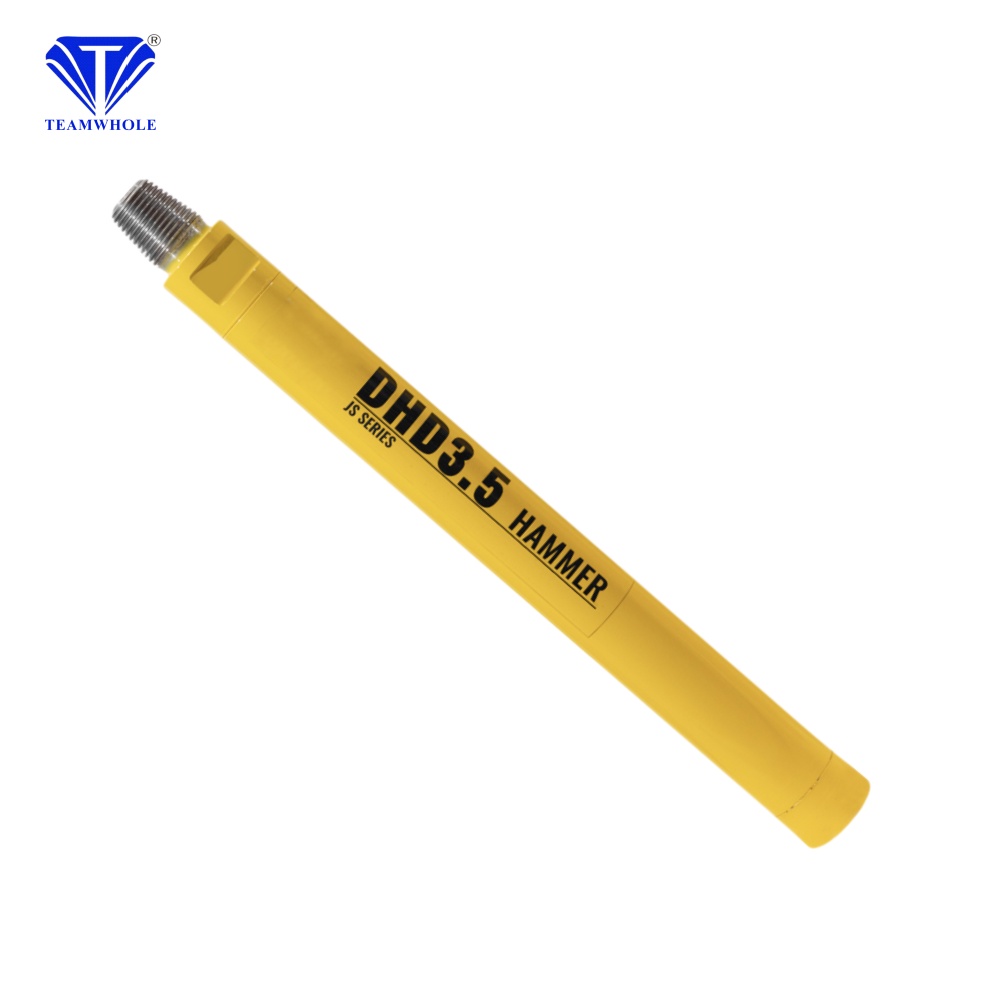

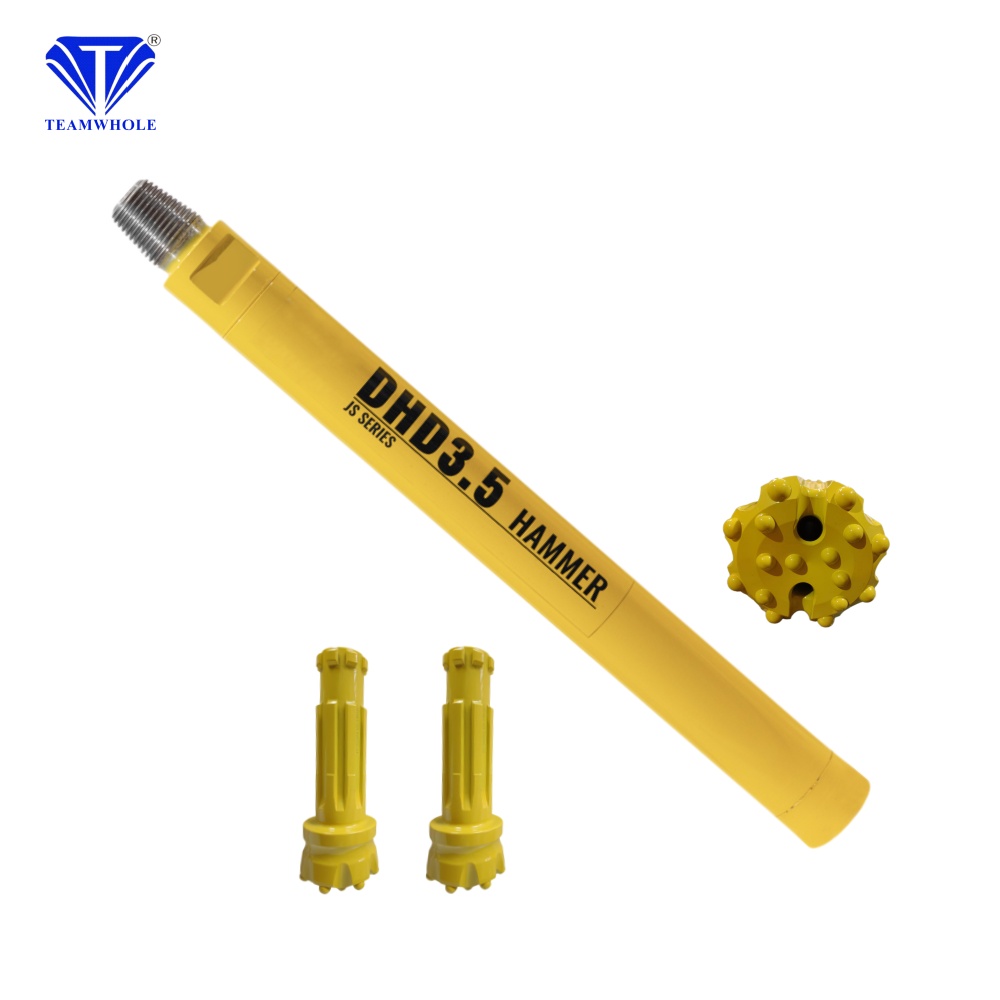

TEAMWHOLE DHD3.5 90mm DTH Hammer Drill Bit Rig Tools With Pump Engine & Gear For Well Drilling Quarry Blasting Hole
The JS series DTH hammer is a new type of high pressure hammer. It is one of the most cost-effective DTH hammers. This series of hammers matches to bits without foot valves. It features fast penetration, low air consumption, good stability, and long service life.
Features at a Glance

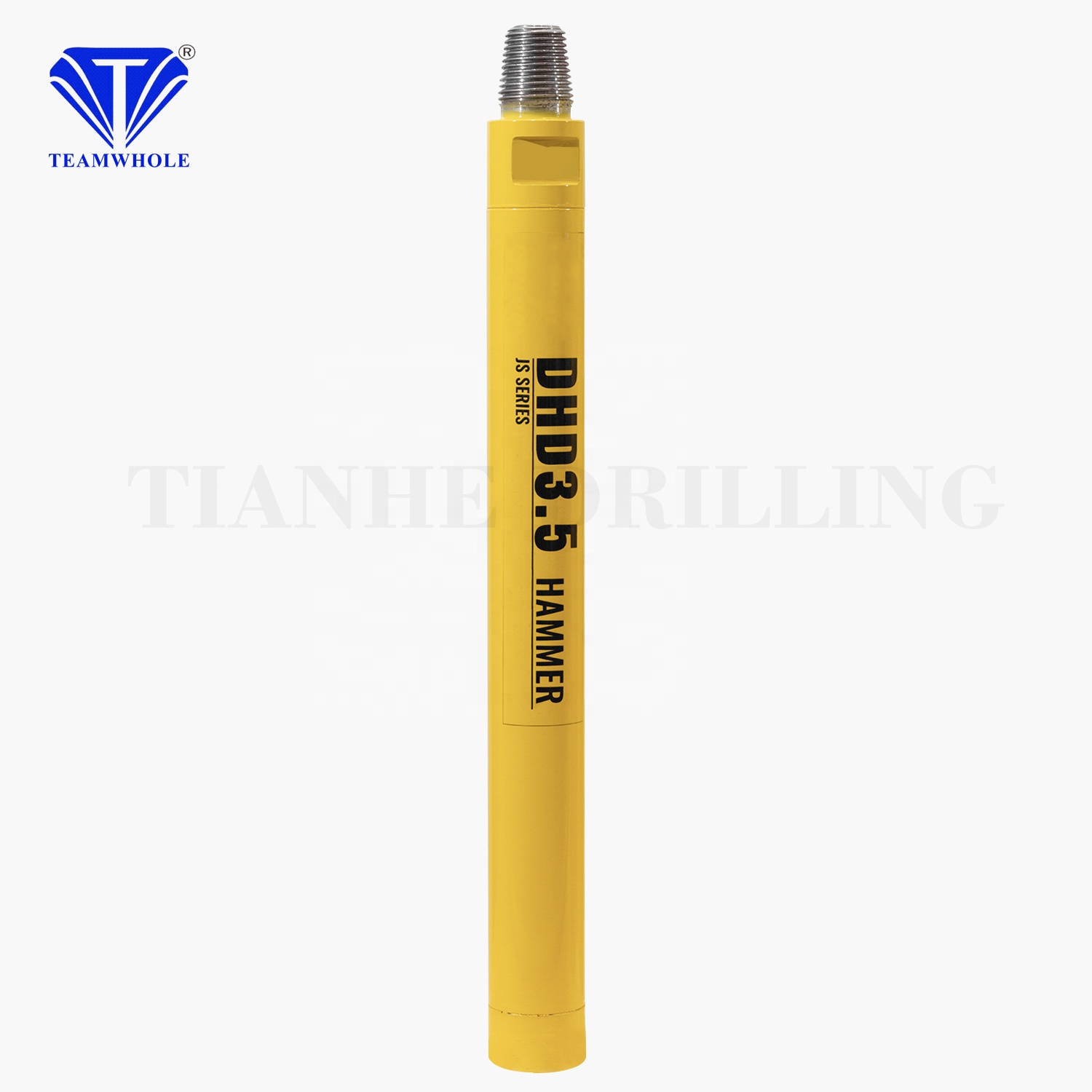

Right elevation

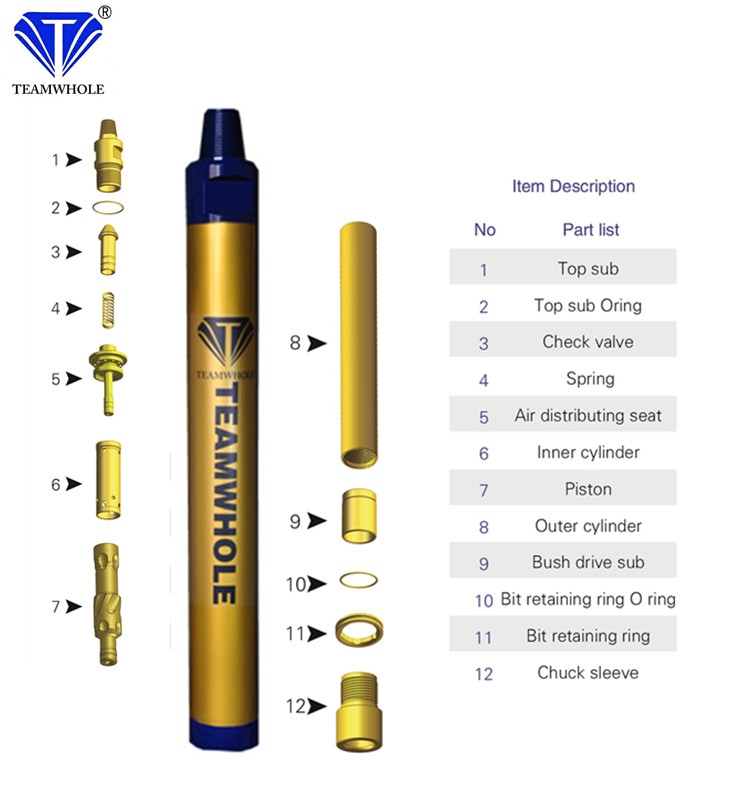

Left elevation

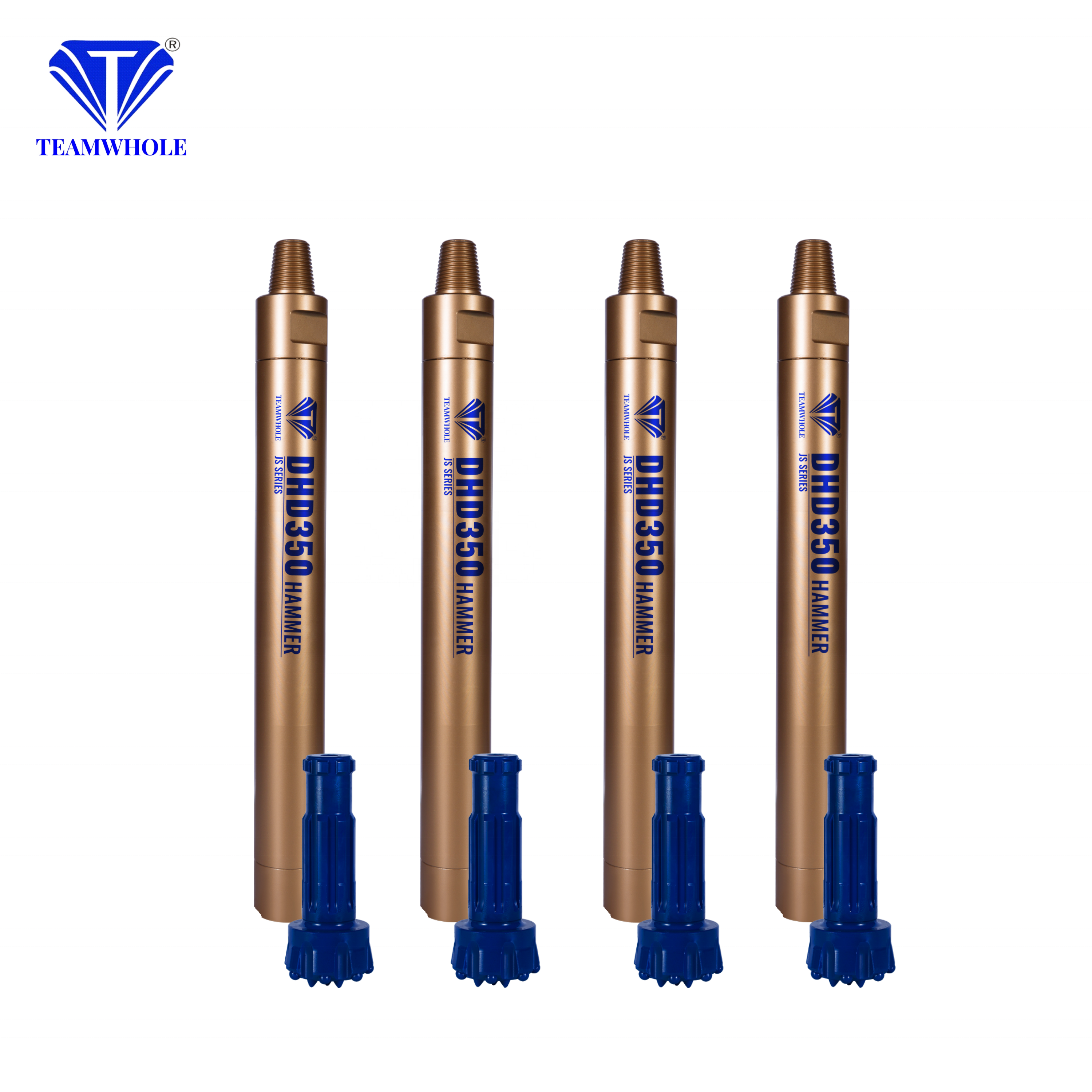

Front elevation
Product Specifications
JS--DHD SHANK DTH HAMMER SPECIFICATION
Bit shank
Length (mm)
Thread
OD (mm)
Work pressure
Rec. speed rotation (r/min)
Air consumption (m³/min at 18bar)
Weight (kg)
DHD3.5
863mm
API 2 3/8"REG
80MM
2.0Mpa
30-60
7
22
DHD340
967mm
API 2 3/8"REG
99MM
2.5Mpa
30-60
11
38.4
DHD350
1070mm
API 3 1/2"REG
126MM
2.8Mpa
25-55
16
68.4
DHD360
1164mm
API 3 1/2"REG
148.5MM
3.0Mpa
25-55
20
101.5
DHD380
1366mm
API 4 1/2"REG
185MM
3.0Mpa
25-55
23
152.7
DHD112
1522mm
API 6 5/8"REG
275MM
3.0Mpa
25-55
41
295
JS-SD SHANK DTH HAMMER SPECIFICATION
Bit shank
Length (mm)
Thread
OD (mm)
Work pressure
Rec. speed rotation (r/min)
Air consumption (m³/min at 18bar)
Weight (kg)
SD4
967mm
API 2 3/8"REG
99MM
2.5Mpa
30-60
11
38.4
SD5
1070mm
API 3 1/2"REG
126MM
2.8Mpa
25-55
16
68.4
SD6
1164mm
API 3 1/2"REG
148.5MM
3.0Mpa
25-55
20
101.5
SD8
1366mm
API 4 1/2"REG
185MM
3.0Mpa
25-55
23
152.7
SD12
1522mm
API 6 5/8"REG
275MM
3.0Mpa
25-55
41
295
JS--QL SHANK DTH HAMMER SPECIFICATION
Bit shank
Length (mm)
Thread
OD (mm)
Work pressure
Rec. speed rotation (r/min)
Air consumption (m³/min at 18bar)
Weight (kg)
QLX40
967mm
API 2 3/8"REG
99MM
2.5Mpa
30-60
11
38.4
QL50
1070mm
API 3 1/2"REG
126MM
2.8Mpa
25-55
16
68.4
QL60
1164mm
API 3 1/2"REG
148.5MM
3.0Mpa
25-55
20
101.5
QL80
1366mm
API 4 1/2"REG
185MM
3.0Mpa
25-55
23
152.7
QL120
1522mm
API 6 5/8"REG
275MM
3.0Mpa
25-55
41
295
Product Configuration
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
Successful Projects
Water well drilling
Open mine drilling
Mine blasting hole drilling
Products Description
Similar Products
Profile Overview
Established in 2002, our company is a leading enterprise specializing in DTH rock drilling tools. The facility covers 60,000 square meters and employs over 100 technical experts, with 50 specialists having more than 20 years of industry experience. We offer a wide range of products, including DTH hammers and bits (3" to 43"), deep hole drilling tools, eccentric and concentric casing systems, RC hammers and bits, and drill accessories. These high-performing tools are extensively used in mining, water wells, geothermal exploration, and civil construction. Following ISO9001:2015 quality standards, we implement advanced manufacturing processes to deliver high-quality drilling solutions to clients in over 50 countries.

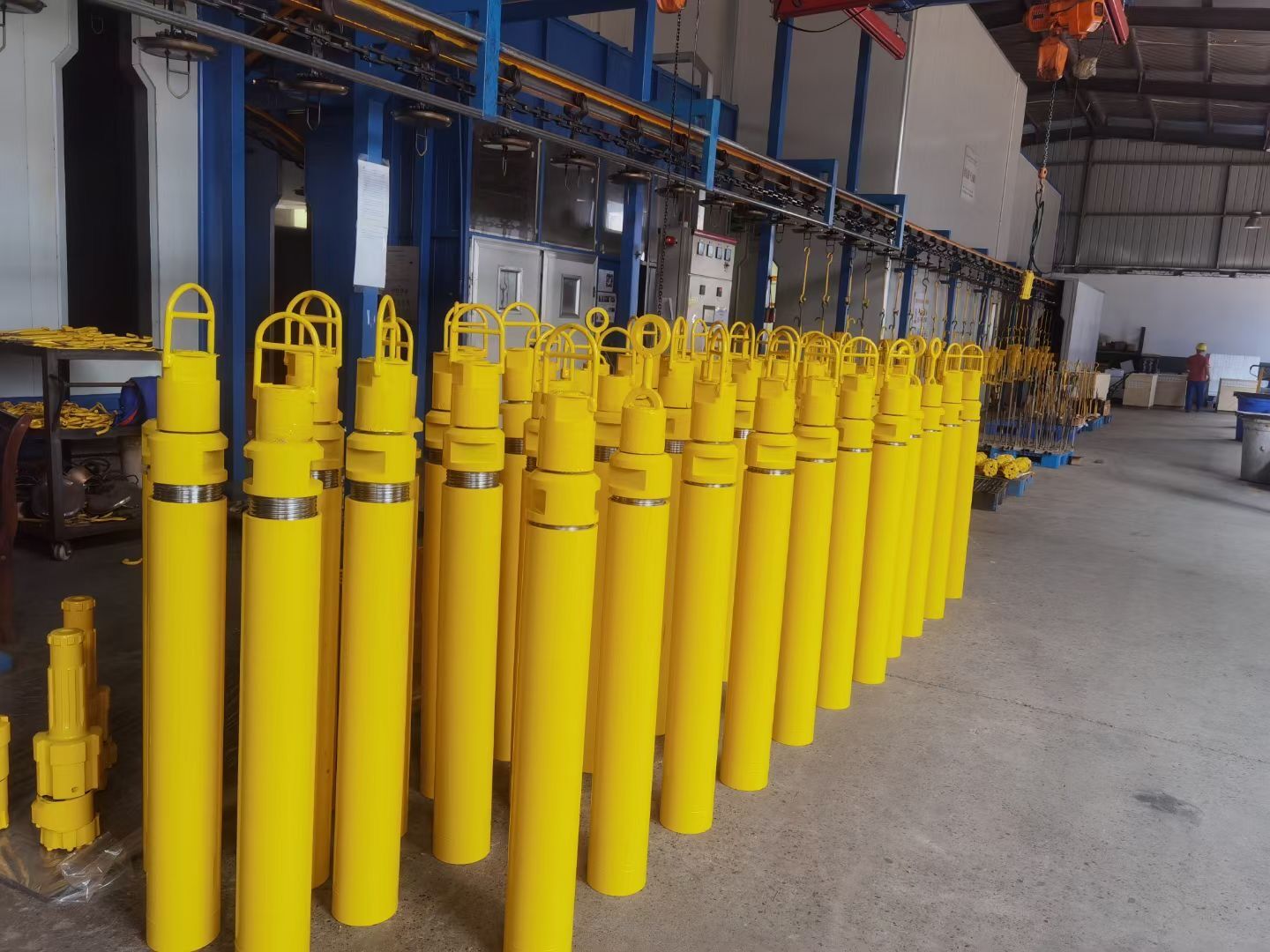

Our Workshop
