Explore our high-performance engineering lineup. Built to deliver maximum impact energy, durability, and operational precision under critical geotechnical conditions.
A technical guide to selecting, operating, and optimizing percussive rock fragmentation equipment.

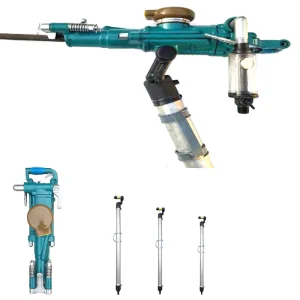

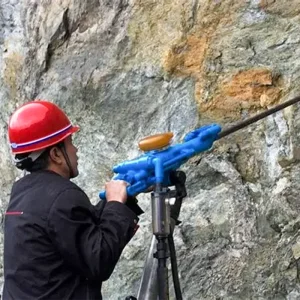

Utilized extensively in underground mines, machines like the YT28 Pneumatic Rock Drill rely on compressed air to cycle a dual-acting piston. As air enters the valve chest, the piston accelerates forward, striking the shank of the drill steel at high frequencies (up to 3000 Hz). The system integrates an automated rifle bar rotation mechanism to turn the bit fractionally after each blow, ensuring circular blast hole geometries. Our models operate optimally at 0.5 to 0.63 MPa of dynamic line pressure, maintaining maximum rotational torque.
For extreme locations lacking infrastructure support, the YN27C Gasoline Rock Drill features an integrated two-stroke internal combustion engine. Dynamic power transfer occurs directly within the cylinder block; explosion pressure drives the percussion piston down while simultaneously powering a secondary ventilation piston that sweeps exhaust gas down through the drill rod. This clears drilling dust instantly without requiring external air compressors or water pumps, providing rapid setup deployment.
| Drill Type / Model Family | Optimal Working Pressure | Impact Frequency (Hz / BPM) | Air / Fuel Consumption | Ideal Structural Formats |
|---|---|---|---|---|

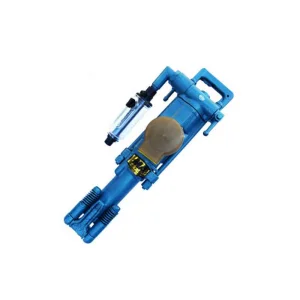

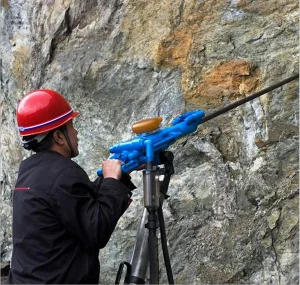

| Pneumatic Air-Leg (YT28 / YT27) | 0.40 - 0.63 MPa | ≥ 37 Hz (2220 BPM) | ≤ 81 L/s (2.86 m³/min) | Hard Granites, Shales, Underground Galeries |
| Gasoline Self-Powered (YN27C) | Atmospheric Pressure | ≥ 2450 BPM | ≤ 0.12 L/m (Petroleum mix) | Mountainous terrains, Infrastructure repairs |
| Hydraulic Heavy-Duty | 110 - 140 Bar | ≥ 4000 BPM | Closed loop hydr. oil flow | High strength basalt, hard limestone quarries |
| Electric Diamond Core (HZ-160) | 220V - 240V AC | Rotational Only (1900W) | Continuous electrical supply | Concrete brickwork, civil core sampling |
Driving Innovation in Industrial Machinery and Building a New Era of Advanced Equipment Manufacturing.
Shandong E-Way Machine Co., Ltd. is a modern industrial equipment manufacturer dedicated to the research, development, production, and service of high-quality machinery and engineering solutions. With a strong focus on technological innovation and manufacturing excellence, the company serves customers in mining, construction, and various heavy-duty industrial sectors worldwide.
Over the years, Shandong E-Way Machine has developed a diversified product portfolio covering mining and construction drilling equipment, pneumatic and hydraulic tools, anchoring and support systems, mechanical transmission components, and a wide range of spare parts and accessories. In addition, the company provides customized machining services, including precision components, structural parts, and wear-resistant engineering plastic products, meeting the specific needs of different working conditions and industries.
Component assembly
Integral assembly
Slice
Drum
Weld
Assembly table
Cutting machine
Barrel winder
Buried welder
Harnessing Shandong's industrial cluster to optimize cost-efficiency and metallurgical quality control.
Shandong E-Way Machine utilizes premium alloy steels like 20CrNiMo for core internal wear components, including pistons, rotation sleeves, and impact cylinders. This specialized alloy profile undergoes gaseous carburizing heat treatment processes, ensuring an external hardness rating of HRC 58-62. This guarantees superior fatigue limit properties when exposed to high frequency impact shocks.
By consolidating casting, precision structural welding, CNC multi-axis milling, and heat treatments under a single roof, we eliminate intermediate delays. The integration of robotic assembly tables and barrel winders ensures precision component fits. This results in consistent tolerances that minimize internal friction, maintaining stable air consumption profiles.
Located near major Chinese maritime logistics corridors, we offer global businesses secure packing, customs brokerage, and transport flexibility. Utilizing specialized ocean-ready packaging systems, our drills and accompanying accessories are guaranteed to arrive free of salt-air oxidation and moisture ingress.
Customization capabilities, structural warranties, and international regulatory alignment.

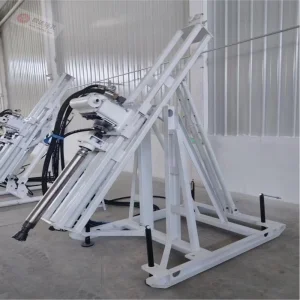

We customize drill chuck configurations (hexagonal profiles of 22mm x 108mm or 25mm x 108mm) to fit your existing inventories. Custom air-leg stroke expansions and specific drilling rigs can be adjusted to meet site depth requirements. We provide flexible lubrication integrations (such as FY200B oil lubricators) to match specific operation routines.
For operations at high altitudes (above 3,000 meters) or in freezing northern climates, our engineering department designs tailored fuel/air mixing carburetion solutions and anti-freeze pneumatic fluid paths to maintain constant power performance and prevent mechanical failure.
Our manufacturing practices align with CE Certification directives for machine safety and are certified under the ISO 9001:2015 framework. We control acoustic outputs through integrated mufflers and low-vibration handles, reducing hand-arm vibration syndrome (HAVS) risks in compliance with EU directives.
Additionally, we supply comprehensive testing logs for every batch exported. This includes chemical analysis sheets of raw alloys, pressure testing certificates of cylinders, and dynamic rotation reports, ensuring seamless site operations from day one.
Practical deployment environments and configuration recommendations.
The next evolutionary phase of handheld drilling technology.
Newer developments integrate pneumatic air cushions and spring-isolated handles to isolate the operator from high percussive cycles, complying with international safety standards.
Advancements are shifting toward electro-hydraulic handheld units. These deliver the impact strength of hydraulics with the clean operation and lightweight benefits of electric powertrains.
Expert engineering insights regarding operations, maintenance, and system customization.

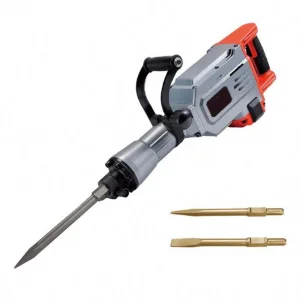

Specialized diamond core machines, portable well drilling rigs, and internal combustion jackhammers.
