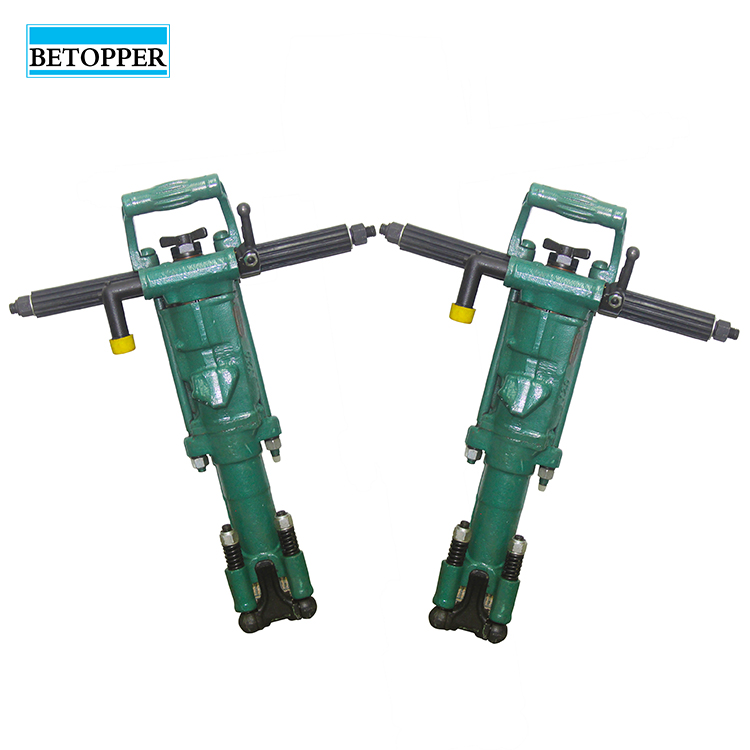

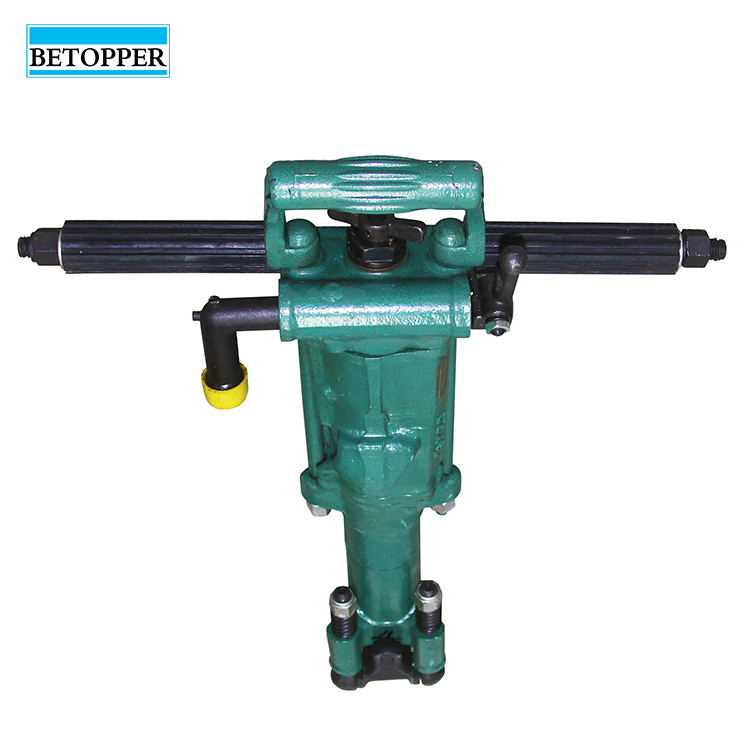

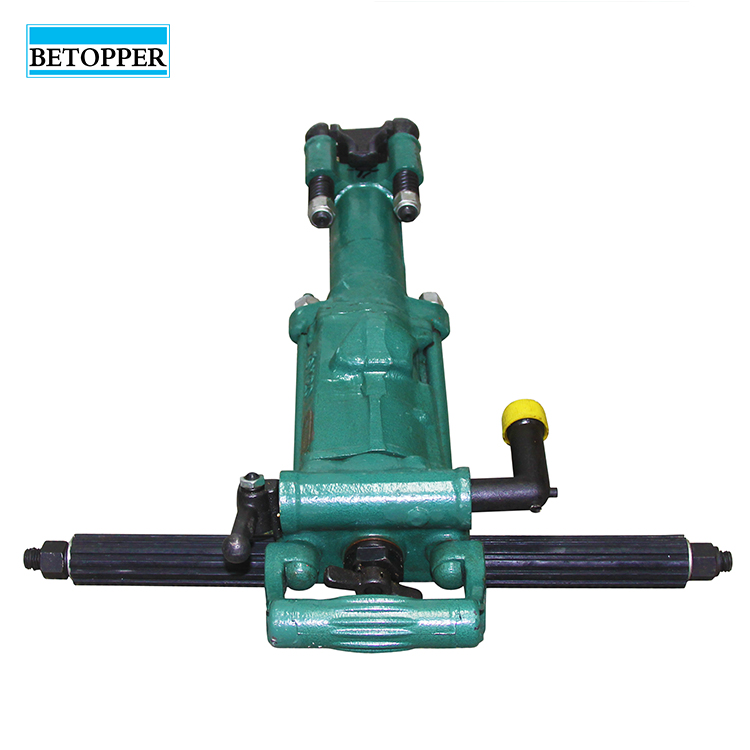

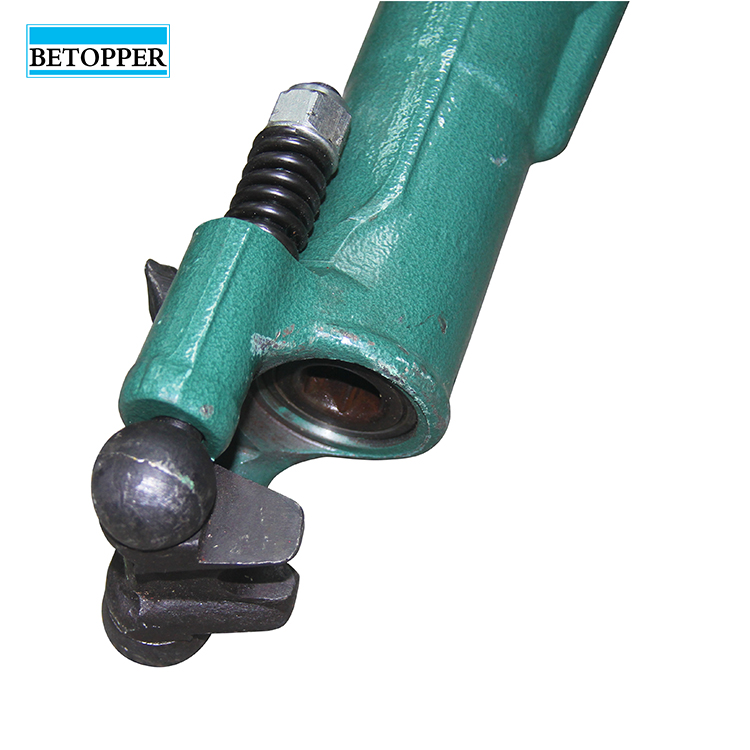

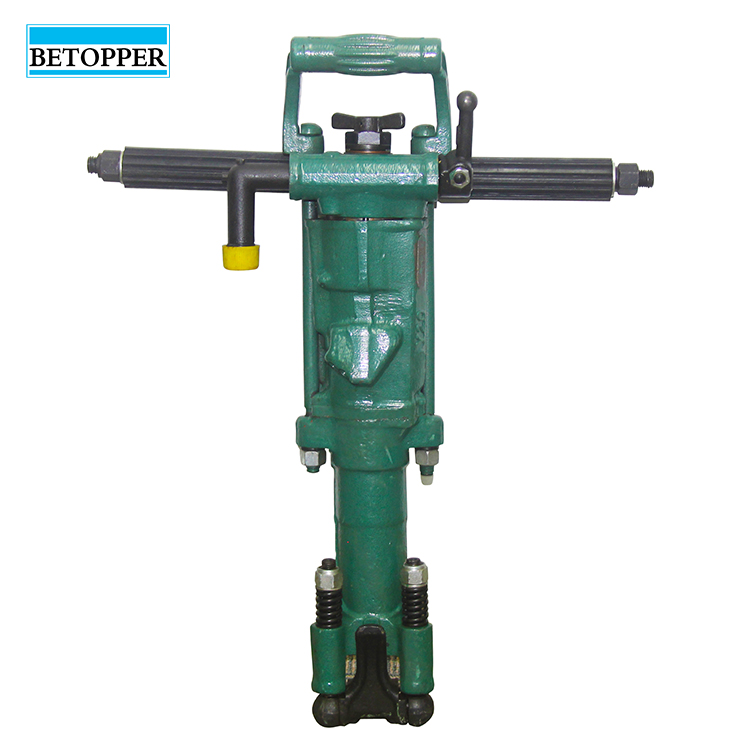

| Product Name: | Hand-operated pneumatic drill machine | |||||
|---|---|---|---|---|---|---|

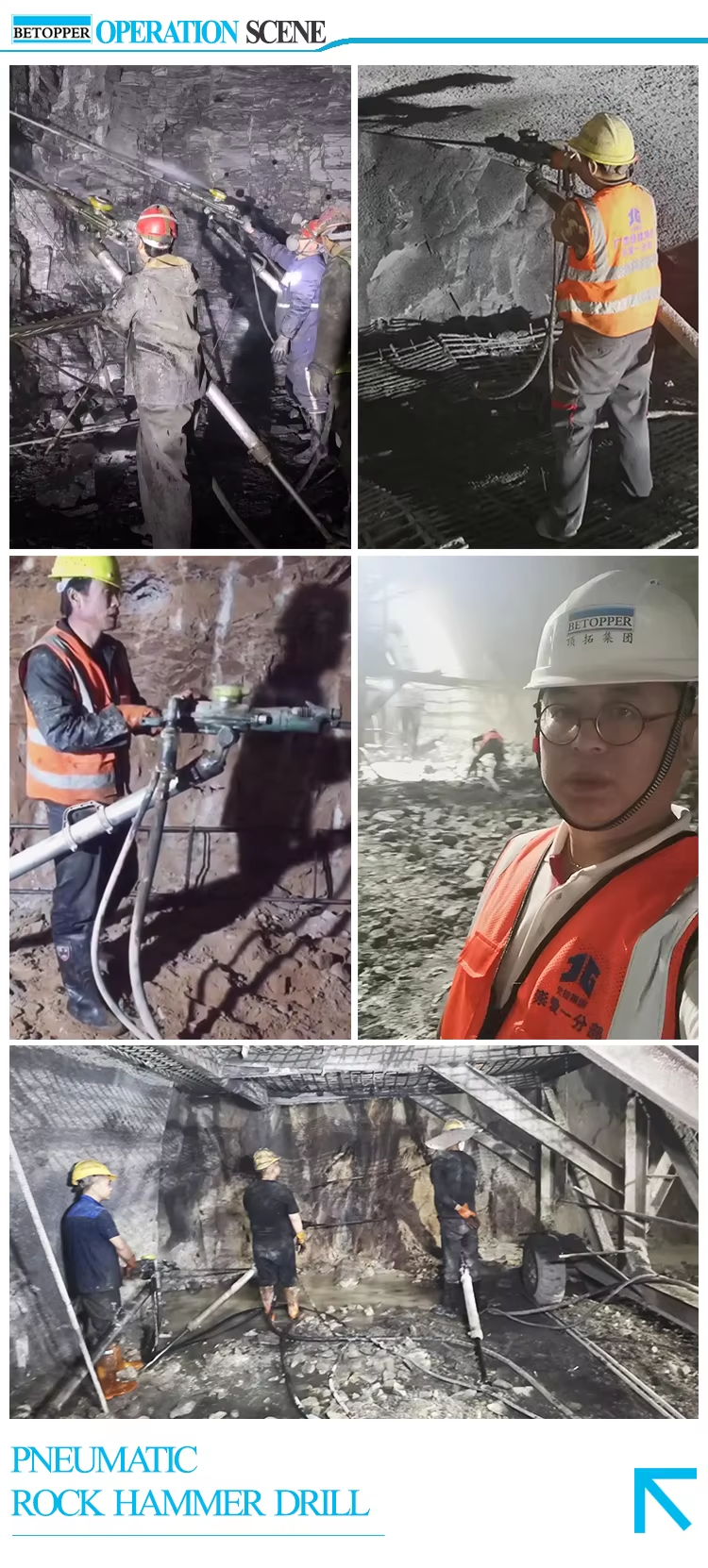

| Description: | The series of pneumatic rock drills are mainly used in mine, railway, water irrigation works and quarrying works to drill holes. It's suitable for wet or dry drilling in all kinds of rocks. | |||||
| Drilling Direction: | Hand held type for perpendicular; Air leg type for tilting direction | |||||
| Advantages: |
Light weight & convenient operation, Low consumption & long life parts, High efficiency & fast drilling velocity. |
|||||
| MOQ: | No requirement for testing and trial order | |||||

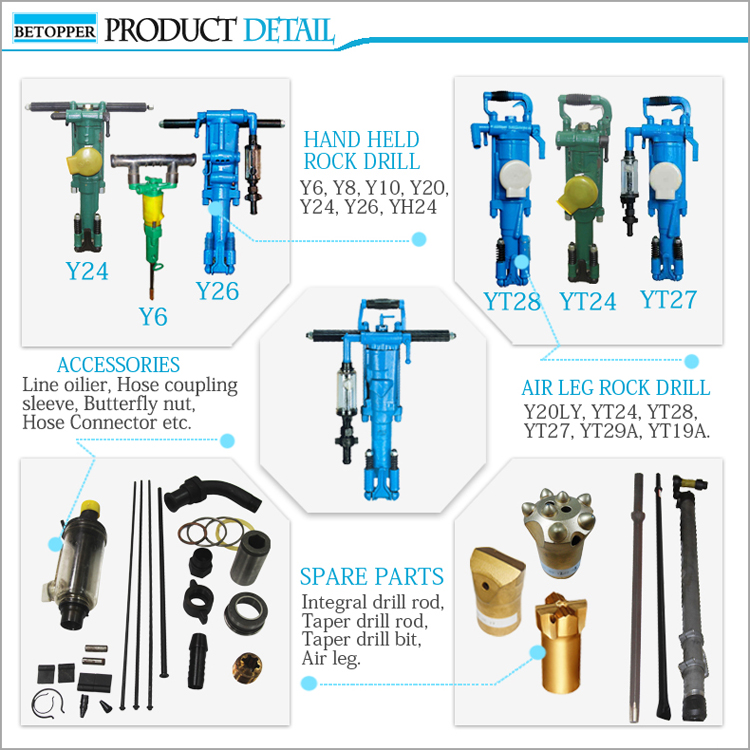

| Spare Parts: | Integral drill rod, Plug hole drill rods, Tapered/threaded drill rods, Tapered/threaded drill bits (button bits, chisel bits, cross bits) | |||||
| Specification of Pneumatic Handheld Drill | ||||||
| Hand Held Rock Drill | Y6 | Y8 | Y20 | Y24 | Y26 | YH24 |
| Weight (kg) | 6 | 8 | 18 | 24 | 26 | 24 |
| Air consumption (L/s) | ≤9.5 | 9.5 | 25 | 55 | ≤47 | 55 |
| Drill hole diameter (mm) | 20 | 20-24 | 34-42 | 34-42 | 34-42 | 34-42 |
| Max. drilling depth (m) | 0.5 | 0.5 | 3 | 5 | 5 | 5 |
| Shank (mm) | 15*88 | 15 | 22*108 | 22*108 | 22*108 | 22*108 |
| Specification of Air Leg Rock Drill | ||||||
| Air Leg Rock Drill | YT19a | Y20ly | YT24 | YT27 | YT28 | YT29a |
| Weight (kg) | 18 | 18 | 24 | 26 | 26 | 26.5 |
| Air consumption (L/s) | 28 | ≤25 | ≤67 | ≤85 | ≤81 | ≤65 |
| Drill hole diameter (mm) | 34-42 | 34-42 | 34-42 | 34-42 | 34-42 | 34-45 |
| Max. drilling depth (m) | 3 | 3 | 5 | 5 | 5 | 5 |
| Shank (mm) | 22*108 | 22*108 | 22*108 | 22*108 | 22*108 | 22*108 |
