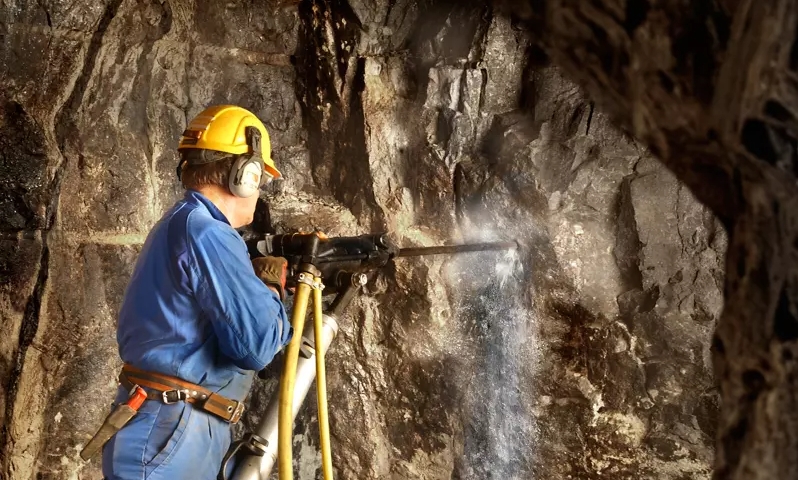

Designed for medium-hard to hard rock (f=8–18), this pneumatic rock drill delivers compressed-air percussion and rotation to efficiently drill blast, bolt, and probe holes with wet dust control.
Its intrinsically safe, simply robust, and highly adaptable design excels in gassy, humid, and dusty conditions across underground mining, tunneling, quarrying, slope support, and infrastructure projects — offering a safe, reliable, flexible, and cost-effective drilling solution.

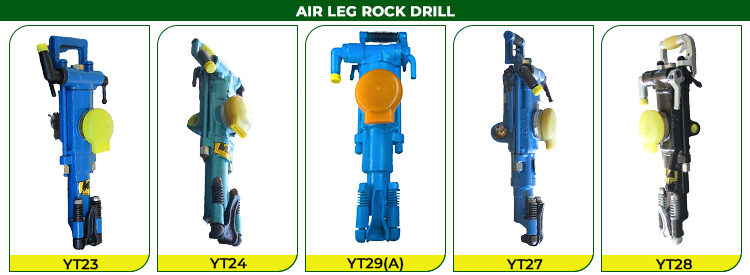

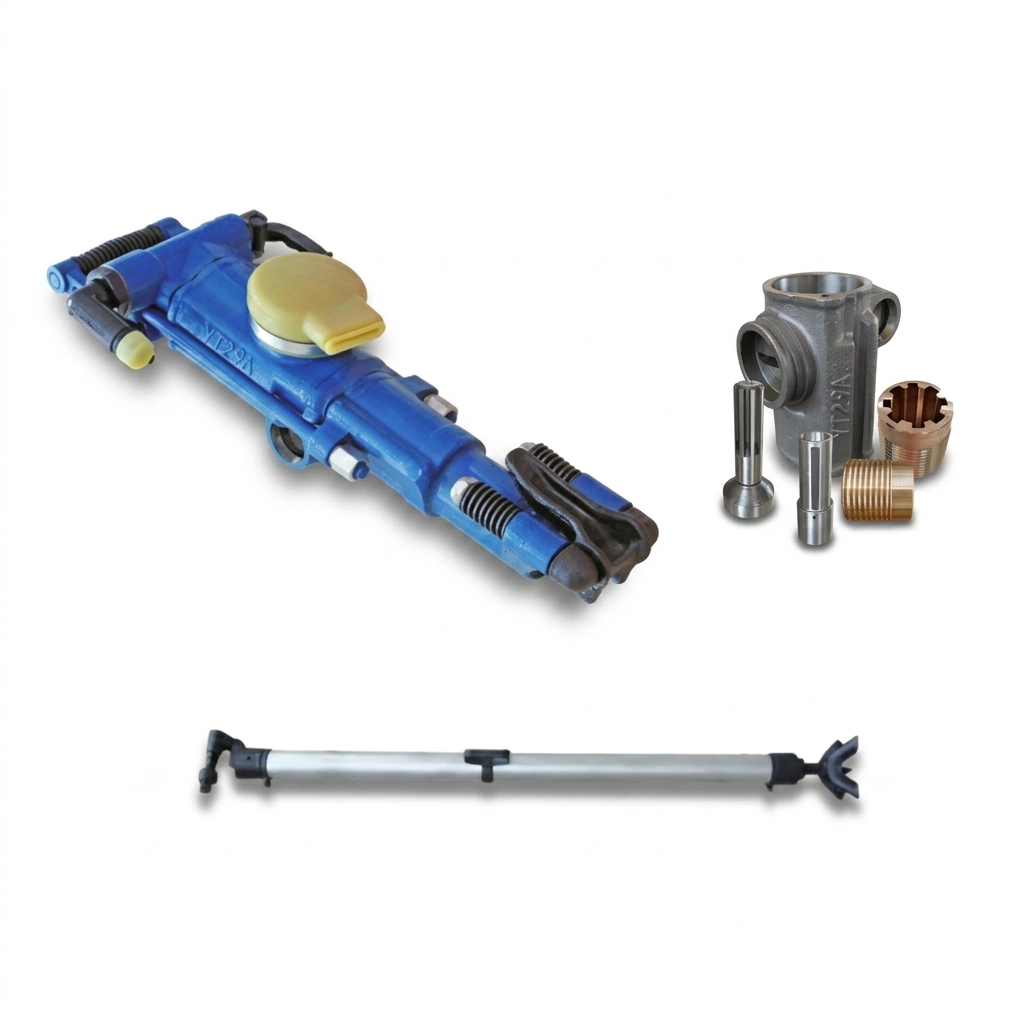

| AIR LEG ROCK DRILL | |||||
|---|---|---|---|---|---|
| Model | YT27 | YT28 | YT29(A) | YT23 | YT24 |
| Weight (kg) | 27 | 26 | 27 | 24 | 24 |
| Length (mm) | 668 | 661 | 659 | 675 | 628 |
| Shank Size (mm) | H22x108 | H22x108 | H22x108 | H22x108 | H22x108 |
| Drilling diameter (mm) | 34-45 | 34-42 | 34-45 | 34-42 | 34-42 |
| Working Pressure (MPa) | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 |
| Piston diameter (mm) | 80 | 80 | 82 | 70 | 76 |
| Piston stroke (mm) | 60 | 60 | 60 | 70 | 55 |
| Air pipe inner diameter (mm) | 25 | 25 | 25 | 19 | 25 |

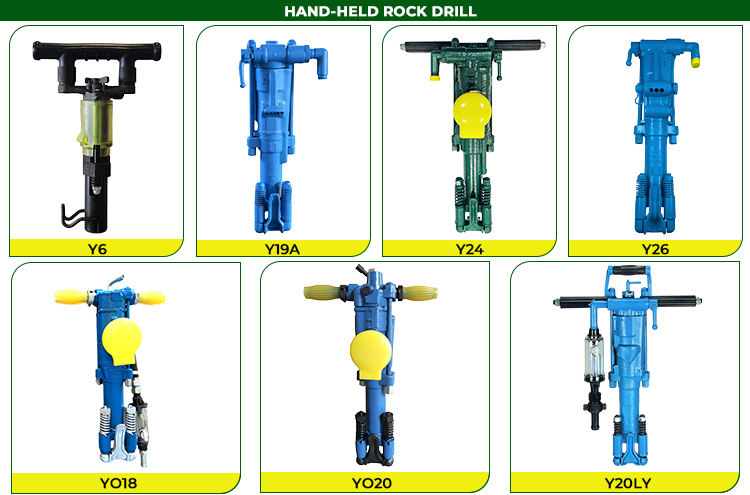

| HAND HELD ROCK DRILL | |||||||
|---|---|---|---|---|---|---|---|
| Model | Y6 | Y24 | Y26 | Y19A | YO18 | YO20 | Y20LY |
| Weight (kg) | 6 | 24 | 26 | 19 | 19 | 20 | 18 |
| Length (mm) | 426 | 604 | 650 | 600 | 550 | 561 | 609 |
| Shank Size (mm) | H22x108 | H22x108 | H22x108 | H22x108 | H22x108 | H22x108 | H22x108 |
| Drilling diameter (mm) | 20 | 34-42 | 34-42 | 34-40 | 34-40 | 34-40 | 34-40 |
| Working Pressure (MPa) | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 | 0.4-0.5 | 0.4-0.5 | 0.4-0.63 | 0.4-0.63 |
| Piston diameter (mm) | 70 | 70 | 65 | 65 | 58 | 63 | 60 |
| Piston stroke (mm) | 60 | 70 | 70 | 54 | 45 | 55 | 50 |
| Air pipe inner diameter (mm) | 19 | 19 | 19 | 19 | 19 | 19 | 16/19 |
We are a leader in the mining export industry. We integrate premium national product resources to promise that our customers acquire competitive prices, high quality, and timely after-sales technical support.
Our main products include pneumatic rock drills, drill bits, drill rods, pneumatic breakers, picks, PDC bits, DTH hammers & bits, air duct cloths, and other mechanical equipment and accessories suitable for mining. In the past ten years, our products have been exported to South America, Europe, Africa, Southeast Asia, Central Asia, and other international markets, with annual sales exceeding 50 million US dollars.
In addition, we are well-equipped with CE and various quality certificates to ensure stability and facilitate hassle-free customs clearance. We sincerely look forward to cooperating with you.

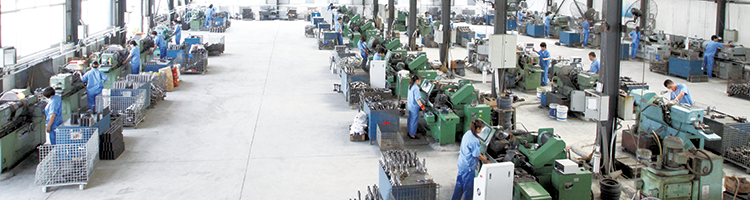

Five dedicated production lines for drill bits with a monthly capacity of 400,000 pieces, and five lines for top hammer tools ensure stable and fast delivery.

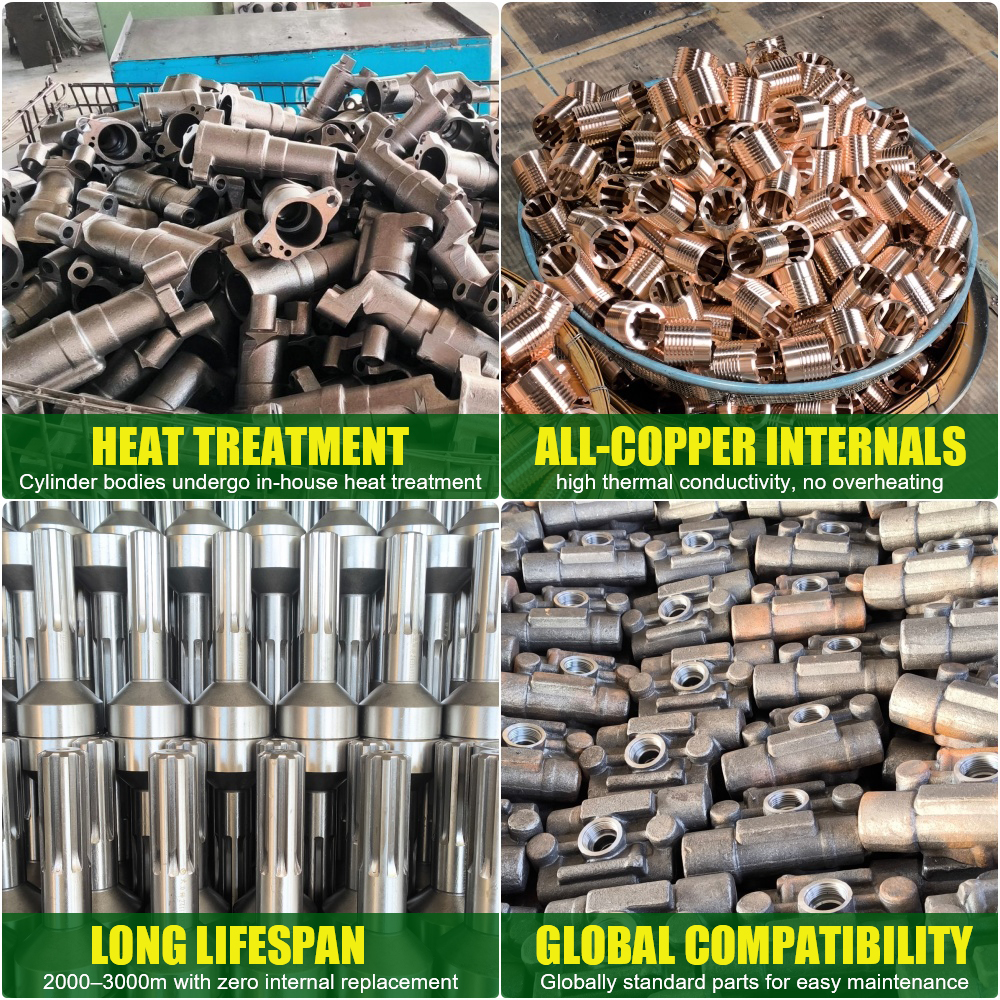

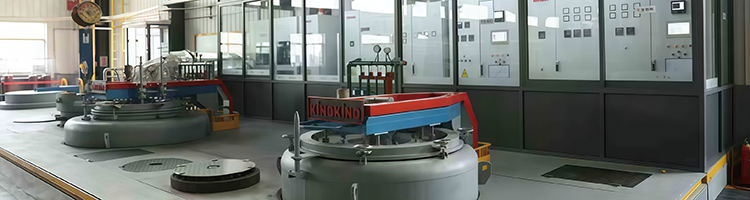

Our own heat treatment furnace ensures superior quality control, stable product characteristics, and shorter overall delivery cycles.

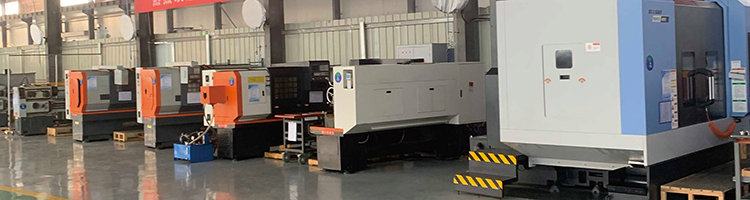

We utilize imported CNC machines to achieve high precision and consistency in every drill bit, drill rod, and shank adapter we produce.

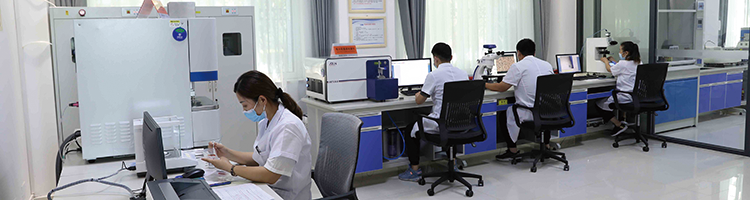

Our lab analyzes metal microstructures, verifies heat treatments, and optimizes processes to ensure zero-defect quality before delivery.
We serve customers globally, with key markets in South America, Europe, Central Asia, Africa, and Asia. Our products are primarily exported to Peru, Colombia, Ecuador, and Bolivia, where they enjoy strong sales locally. Our products are suitable for various mining applications and are tailored to meet the specific needs of our clients.
You can place an order by contacting our sales team through our website or by sending us an email. We will assist you in selecting the right product and guide you through the ordering process.
Lead time depends on the product and order quantity. Typically, delivery takes between 1 to 3 weeks. For custom orders, lead time may vary, and we will provide you with an accurate estimate upon order confirmation.
Yes, we offer comprehensive product support and technical assistance. Our team is available to help with installation, maintenance, and troubleshooting to ensure your mining equipment operates efficiently.
Yes, we offer samples for many of our products. Feel free to request details regarding sample terms.
Yes, we provide customization options for certain products, including color, cylinder logo, and air-leg lengths to meet specific on-site requirements.
