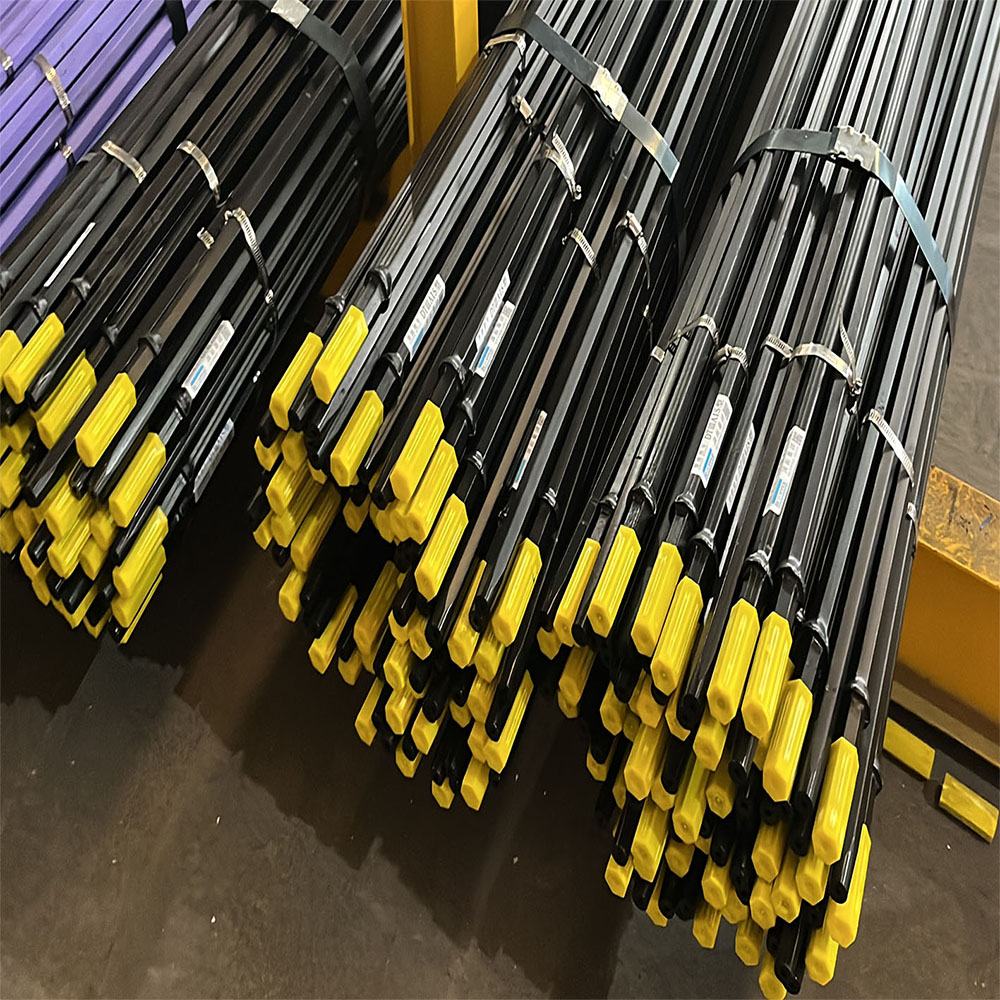

High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use
1 / 5
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use

High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool ISO9001 Certified Mining Use

Send Inquiry

Product Description

High Quality 7 11 12 Degree Taper Drill Steel Rod Special Hard Rock Drilling Hole Machine Part H22 H25 Taper Drill Pipe Mining
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool Mining Use
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool Mining Use
High Quality H22 H25 Taper Drill Carbide Pipe 7 11 12 Degree Taper Drilling Tool Mining Use
Taper Drill Rod Dimensions

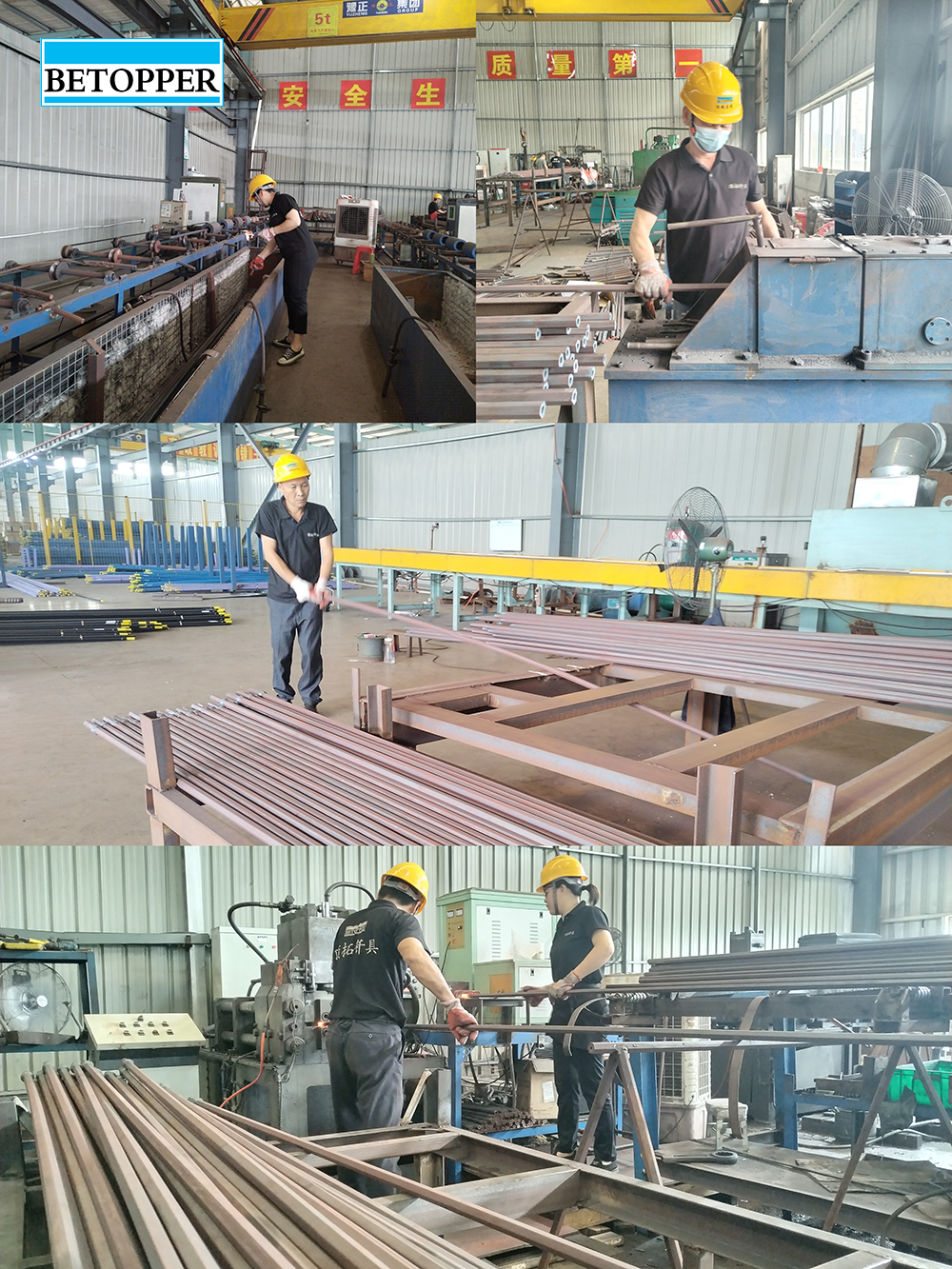

Taper Drill Rod Production
Taper Drill Rod Section
Taper Drill Rod Specification Detail
Product Description
Product Name: High Quality 7 11 12 Degree Taper Drill Steel Rod Special Hard Rock Drilling Hole Machine Part H22 H25 Taper Drill Pipe Mining
Types: Tapered drill rods, Integral drill rods, Plug hole rods

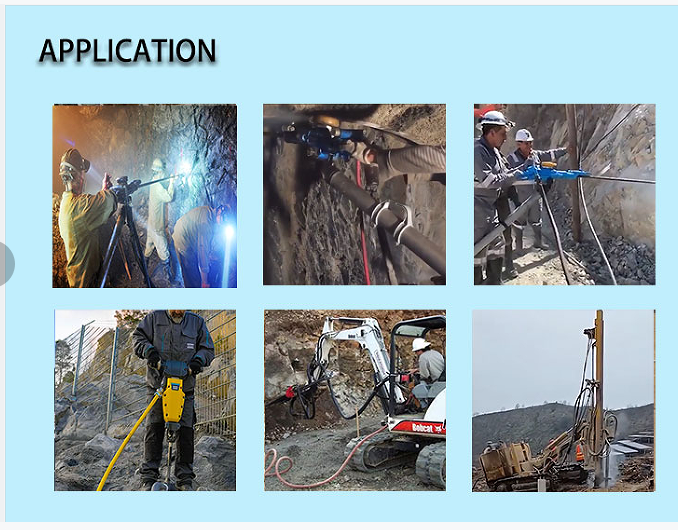

Application: Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
Material: High quality carbide and high quality steel
MOQ: No requirement for testing and trial order
★ We can produce as your request of carbide size, different length of drill rods.
Types of drill rods Specifications Length (mm) Shank Weight (kg)
Tapered drill rods Taper Angle: 4, 6, 7, 11, 12 degree 400mm to 8000mm Hex22mm*108mm
Hex25mm*159mm
Hex19mm*108mm 		1.7 - 24.9
Integral drill steel Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm 400mm to 4800mm 3 – 15.4
Plug hole rods Chisel bit diameter: 17mm, 20mm, 22mm 150mm to 710mm 0.6 - 2.9
drill rod la barra de taladro broca Rod forer tige Bohrgestänge çubuk matkap

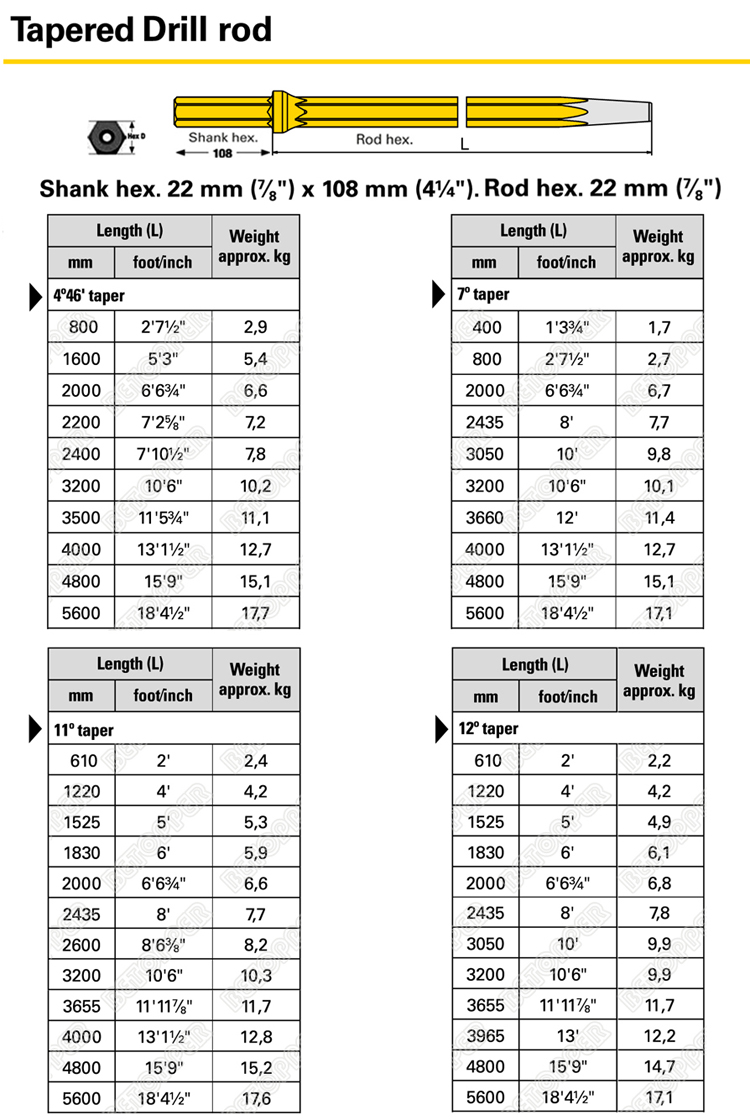

Taper Drill Rod Detailed Structure
Frequently Asked Questions (FAQ)
⬥ What sizes of tapered drill rods are available?
We offer tapered drill rods in lengths ranging from 400mm to 8000mm, with taper angles of 4, 6, 7, 11, and 12 degrees. Shank sizes include Hex 22mm*108mm, Hex 25mm*159mm, and Hex 19mm*108mm.
⬥ What materials are used to construct these drill rods?
The drill rods are manufactured using high-quality carbide and high-quality alloy steel to ensure maximum durability, wear resistance, and high performance in hard rock drilling environments.
⬥ Can you produce customized lengths and carbide sizes?
Yes, we can custom manufacture drill rods with specific lengths, carbide sizes, and designs to match your specific machinery and rock drilling requirements.
⬥ What are the primary applications for tapered drill rods?
Tapered drill rods are primarily utilized in granite and marble quarrying, gold mines, railways, tunnel excavations, and other hard rock drilling construction projects.
⬥ Do you require a Minimum Order Quantity (MOQ)?
We have no MOQ requirement for testing and trial orders, allowing you to evaluate our product quality before making bulk purchases.
⬥ What is the difference between tapered drill rods and integral drill steel?
Tapered drill rods connect to a detachable taper bit and are highly versatile. Integral drill steel rods have a fixed carbide bit directly integrated onto the rod end, which is suitable for smaller, standard hole drilling.
