Note: This price is the deposit price for product production.
We are a professional mining equipment manufacturer dedicated to providing high quality mining equipment, supporting equipment, lifting equipment, running equipment and rescue equipment to customers around the world.

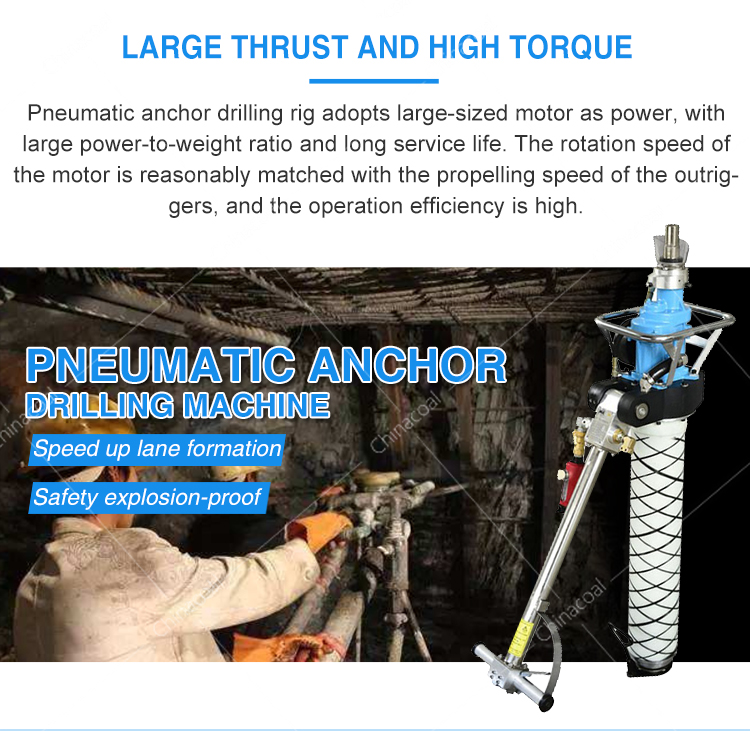

Introduction of MQT Anchor Drilling Machine Pneumatic Roof Bolter

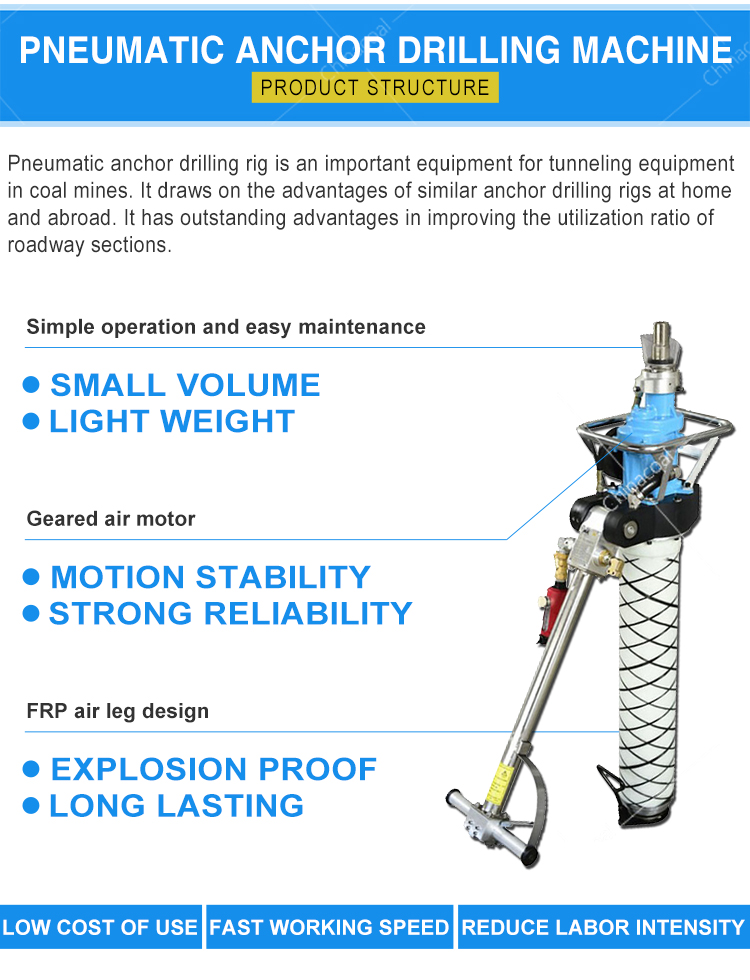

MQT Anchor Drilling Machine Pneumatic Roof Bolter has the advantages of higher output power, high rotate speed and drilling power; convenient operation and maintenance to the air & water control valve; and special silencer bringing comfortable working condition, etc.
Available Models: MQT-70/1.8, MQT-85/2.2, MQT-90/2.3A, MQT-100/3.1, MQT-110/2.8, MQT-120/3.0 and MQT-130/3.2. Each model can be equipped with drilling rod with two connection types, B19 and B22. In addition, we also provide various drill bits & rod fitting for different rock hardness for your selection.
Product Parameters Of Mqt130/2.8 Pneumatic Roof Bolter Mining Anchor Support Roof Bolter Roadway Anchor Support Roof Bolter

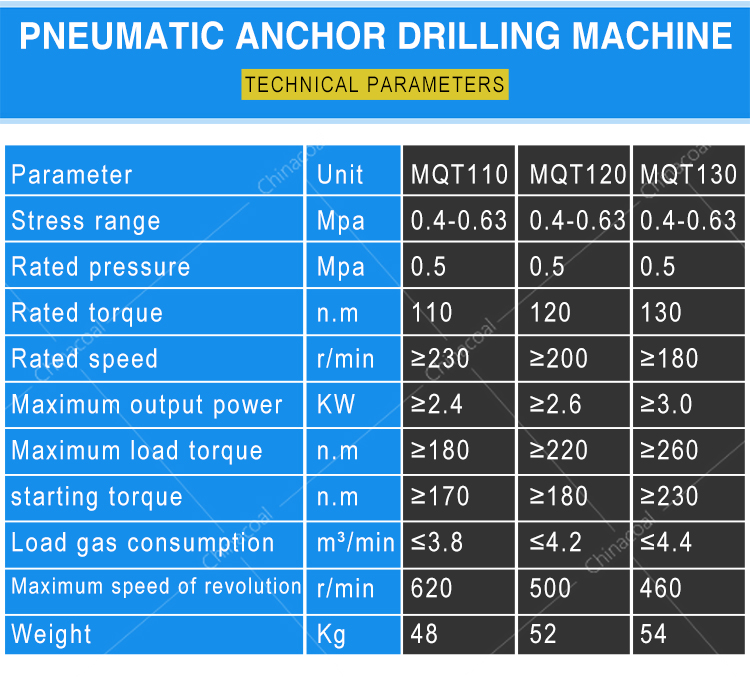

| Roof Bolter Parameters | |||||
|---|---|---|---|---|---|
| Parameter | MQT-90/2.3A | MQT-100/3.1 | MQT-110/2.8 | MQT-120/3.0 | MQT-130/3.2 |
| Applicable air pressure (Mpa) | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 |
| Rated air pressure (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Flushing water pressure (Mpa) | 0.6-1.2 | 0.6-1.2 | 0.6-1.2 | 0.6-1.2 | 0.6-1.2 |
| Rated torque (N.m) | 90 | 100 | 110 | 120 | 130 |
| Rated rotary speed (r/min) | 240 | 280 | 240 | 240 | 240 |
| Idle propelling speed (mm/s) | 400 | 400 | 400 | 400 | 400 |
| Max. output power (Kw) | 2.3 | 3.1 | 2.8 | 3 | 3.2 |
| Idle rotary speed (r/min) | 650 | 900 | 700 | 700 | 700 |
| Idle torque (N.m) | 230 | 180 | 230 | 240 | 240 |
| Max. loading torque(N.m) | 220 | 170 | 220 | 230 | 230 |
| Air consumption (m³/min) | ≤3.2 | ≤3.8 | ≤3.6 | ≤3.8 | ≤4.0 |
| Noise (dB(A)) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |

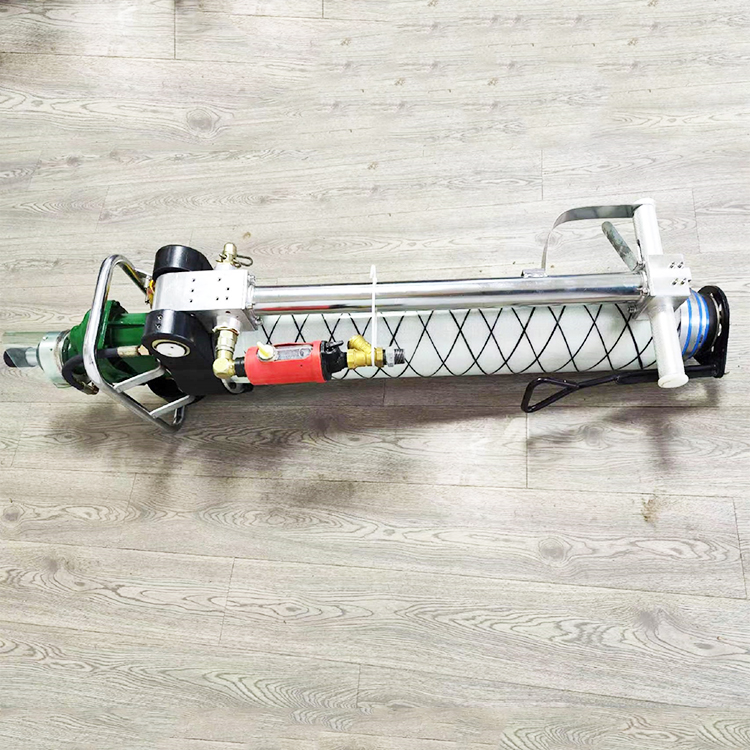

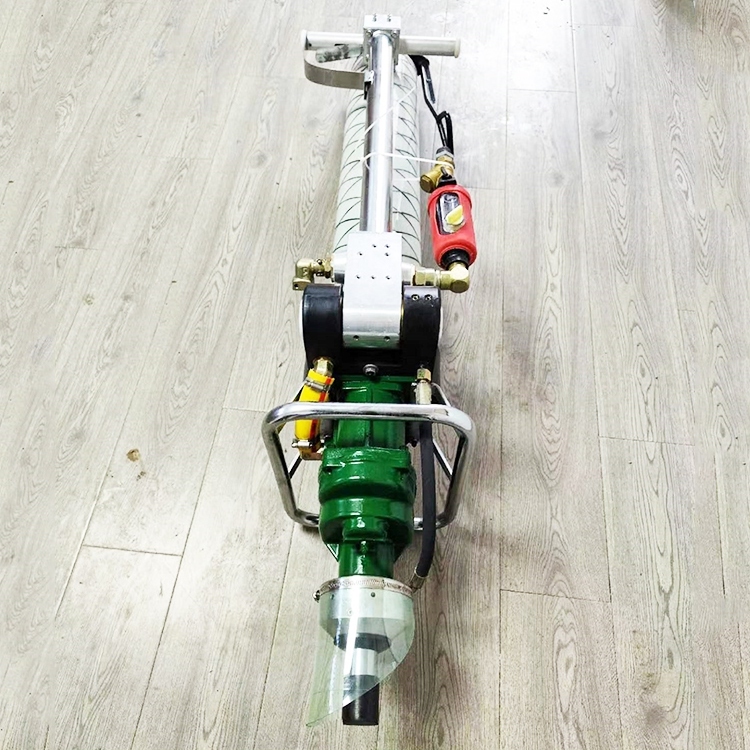

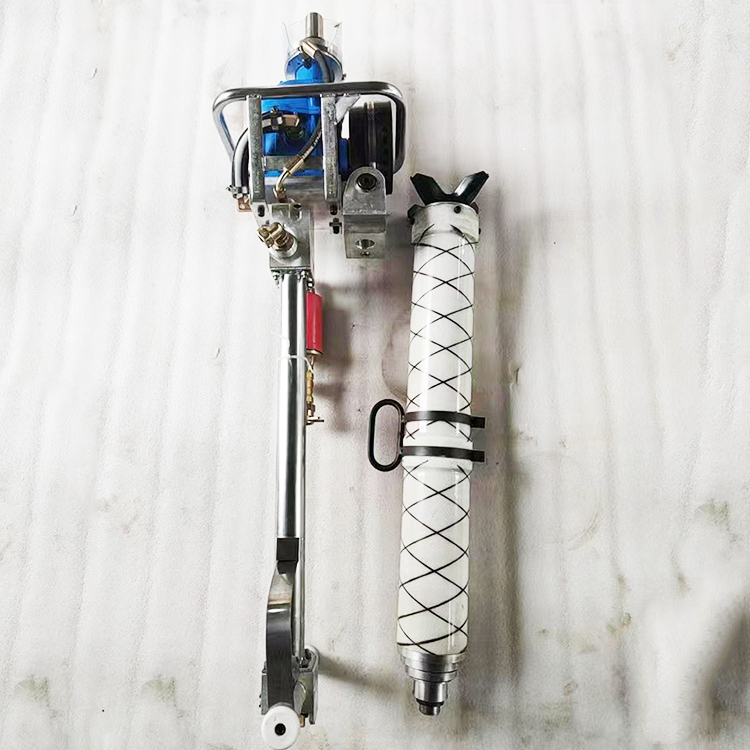

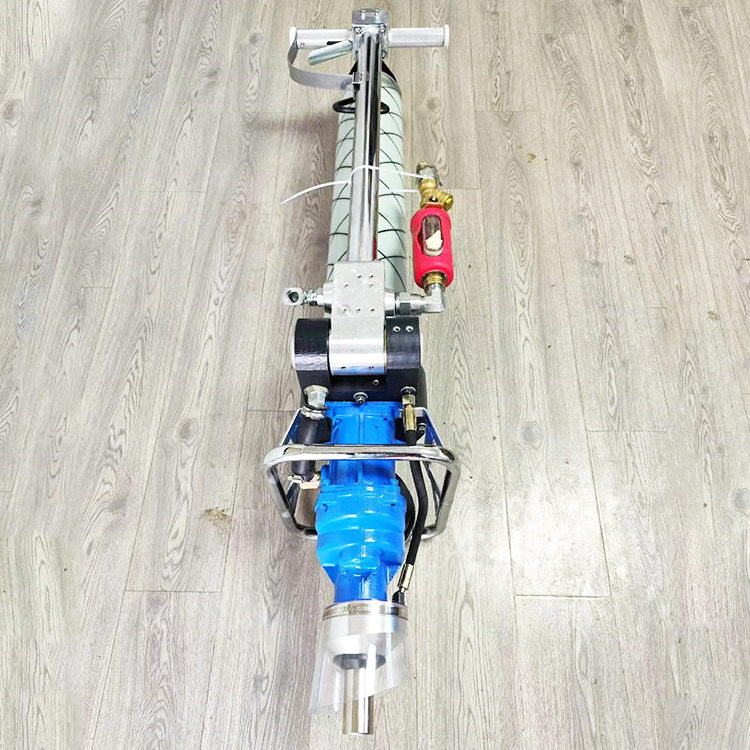

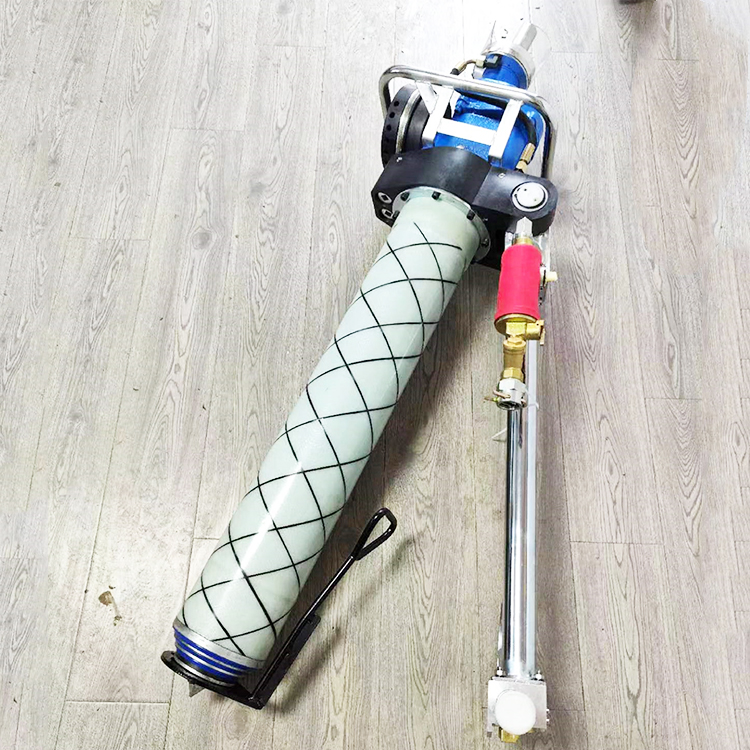

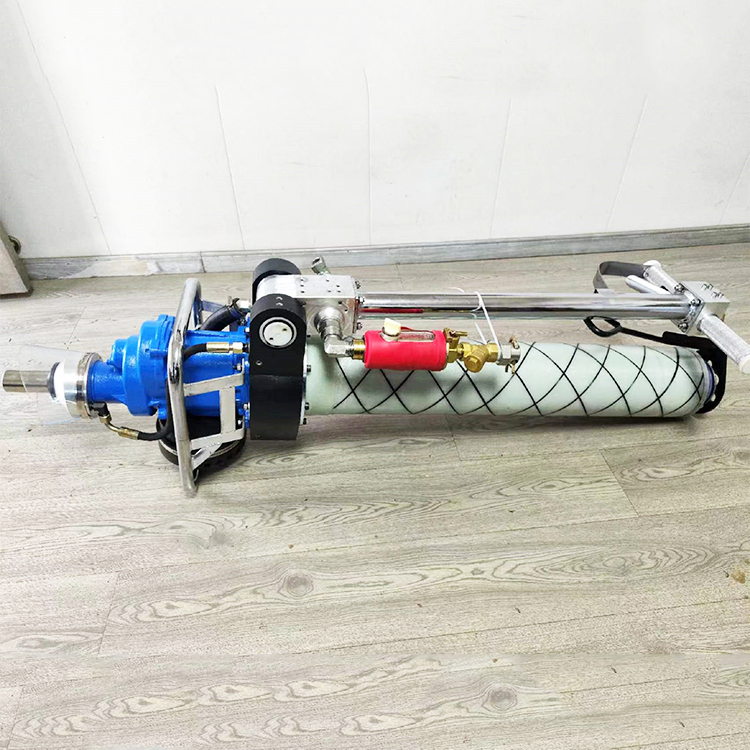

Product Image Of Mqt130/2.8 Pneumatic Roof Bolter Mining Anchor Support Roof Bolter Roadway Anchor Support Roof Bolter
We have a team of professional designers who can meet customers' needs for color, sticker appearance, engine and weight, as well as other aspects of customization.
Our products are very popular abroad, we will provide perfect information support, convenient for you to send.
As our own factory, we can provide a stable supply of goods to ensure timely delivery of orders.
We have a perfect after-sales team, providing one-year warranty to ensure that customers in the use of various needs can be timely response and solution.
