| PRODUCT SPECIFICATIONS |
| Product Name: |

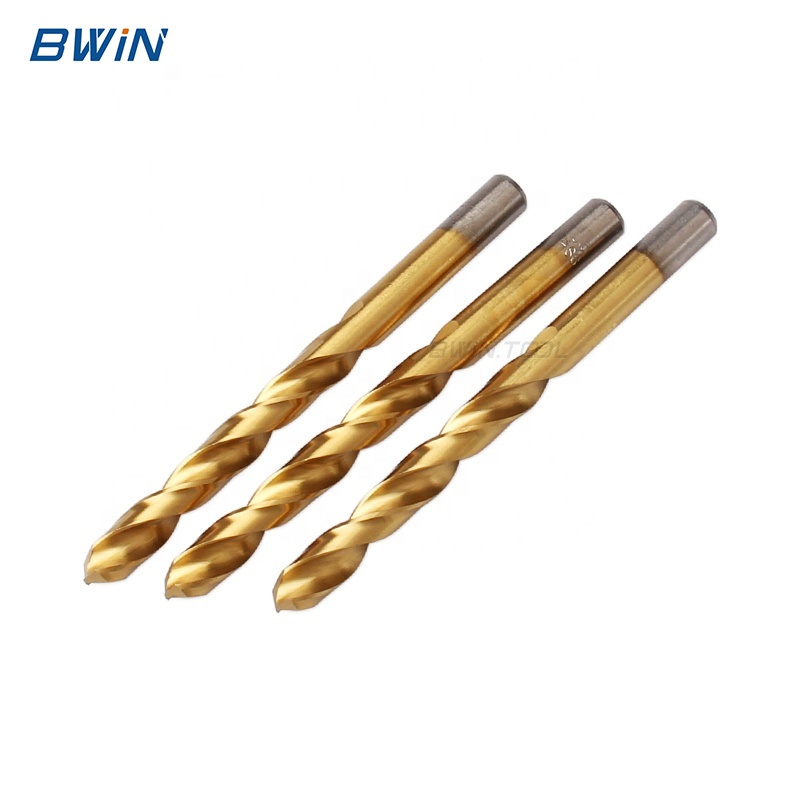

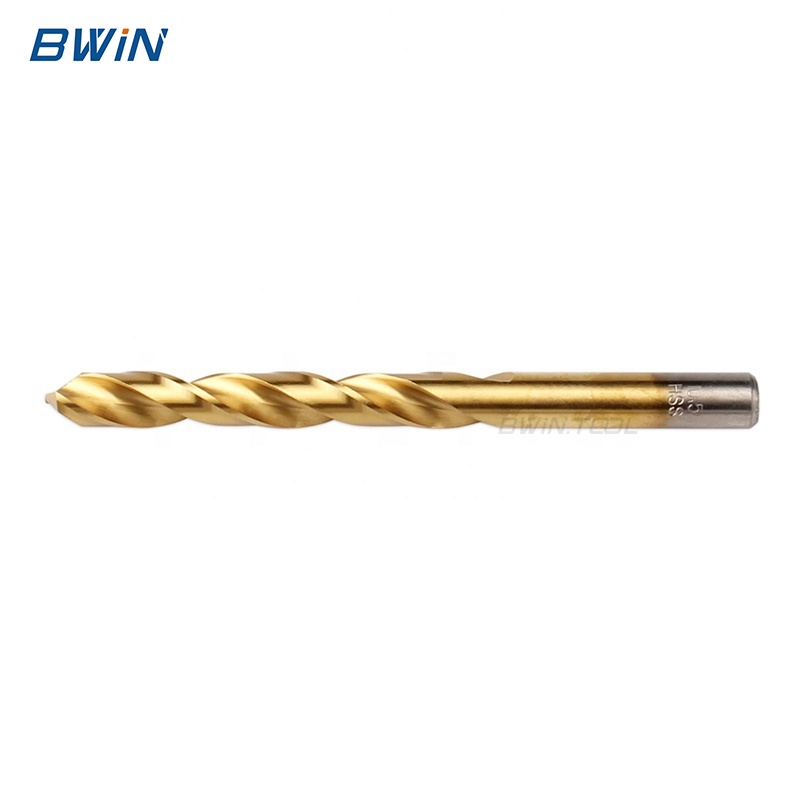

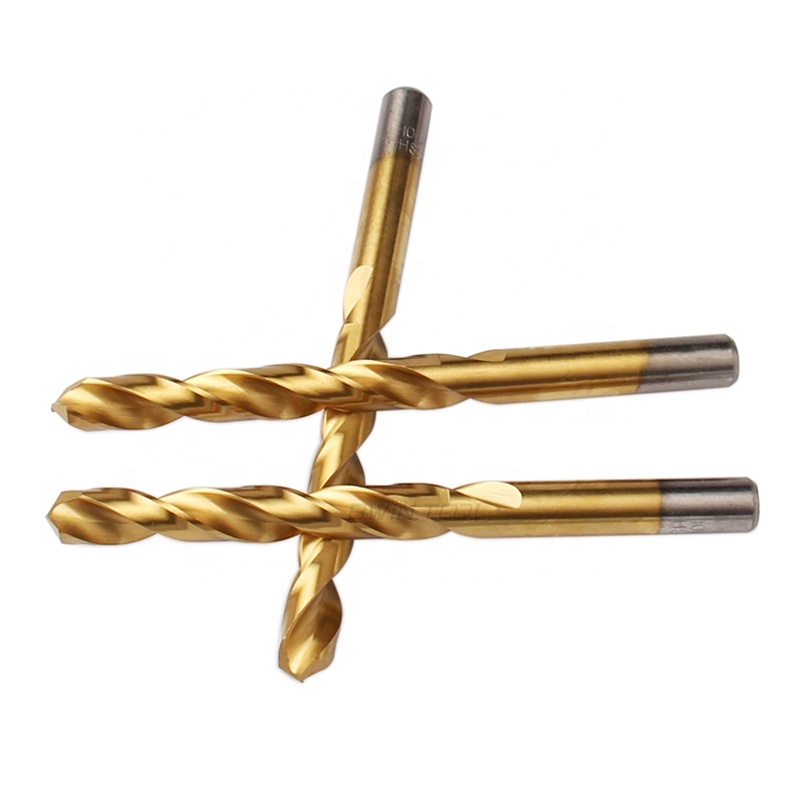

DIN338 Jobber Length M35 HSS Cobalt Drill Bit |
| Material: |
M35(HSS-E HSS-Co5%), M2, HSS is Available |
| Process: |

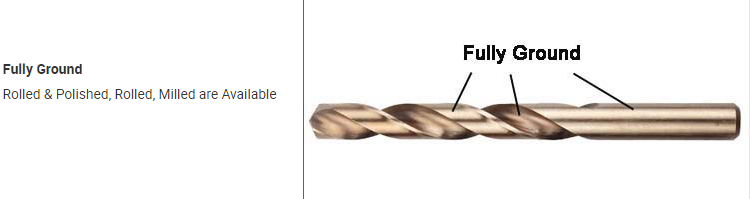

Fully Ground (Rolled & Polished, Rolled, Milled are Available) |
| Standard: |
DIN338 (Long DIN340, Extra Long DIN1869) |
| Size: |
0.3 - 20mm, 1/16" - 1" |

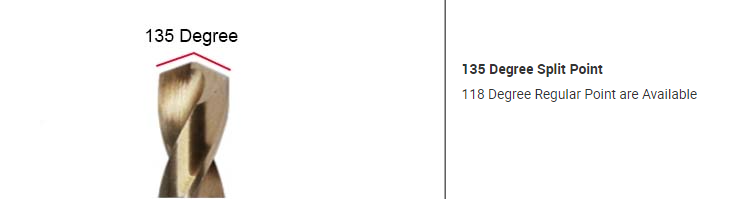

| Point Type: |
135 Degree Split Point (118 Degree Regular Point) |
| Shank Type: |
Straight Shank |

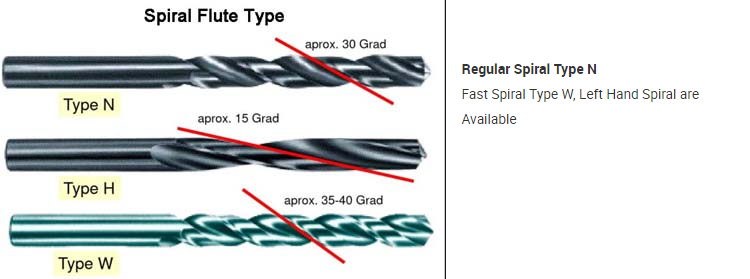

| Helix Angle: |
Regular Spiral Type N |
| Surface Finish: |
Amber Color (Bright, Black Oxide, Titanium) |
| Package: |
10/5 Pcs in Plastic Box |
Key Features
★
Cobalt drill bits are more expensive than other drill bits, but if you regularly drill through metal, they are a good investment since they tend to last longer.
★

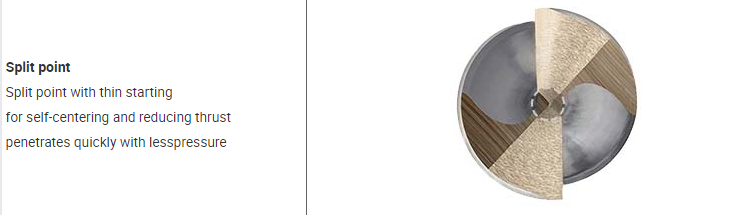

No center punch is needed—the aggressive 135° Quick-Cut points are self-centering and penetrate quickly with less pressure. Will not "walk" or "wander".
★
Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.

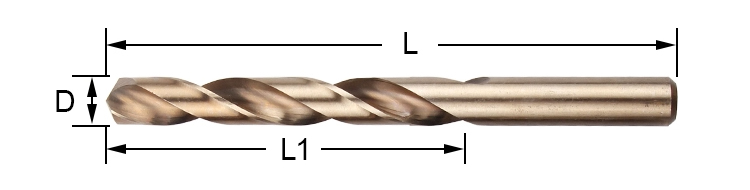

DIN338 Parallel shank twist drills, jobber series
| D(mm) |
L1 |
L |
D(mm) |
L1 |
L |
D(mm) |
L1 |
L |
| 0.2 |
2.5 |
19 |
5.4 |
57 |
93 |
10.6 |
94 |
142 |
| 0.3 |
3 |
19 |
5.5 |
57 |
93 |
10.7 |
94 |
142 |
| 0.4 |
5 |
20 |
5.6 |
57 |
93 |
10.8 |
94 |
142 |
| 0.5 |
6 |
22 |
5.7 |
57 |
93 |
10.9 |
94 |
142 |
| 0.6 |
7 |
24 |
5.8 |
57 |
93 |
11 |
94 |
142 |
| 0.7 |
9 |
28 |
5.9 |
57 |
93 |
11.1 |
94 |
142 |
| 0.8 |
10 |
30 |
6 |
57 |
93 |
11.2 |
94 |
142 |
| 0.9 |
11 |
32 |
6.1 |
63 |
101 |
11.3 |
94 |
142 |
| 1.0 |
12 |
34 |
6.2 |
63 |
101 |
11.4 |
94 |
142 |
| 1.1 |
14 |
36 |
6.3 |
63 |
101 |
11.5 |
94 |
142 |
| 1.2 |
16 |
38 |
6.4 |
63 |
101 |
11.6 |
94 |
142 |
| 1.3 |
16 |
38 |
6.5 |
63 |
101 |
11.7 |
94 |
142 |
| 1.4 |
18 |
40 |
6.6 |
63 |
101 |
11.8 |
94 |
142 |
| 1.5 |
18 |
40 |
6.7 |
63 |
101 |
11.9 |
101 |
151 |
| 1.6 |
20 |
43 |
6.8 |
69 |
109 |
12 |
101 |
151 |
| 1.7 |
20 |
43 |
6.9 |
69 |
109 |
12.1 |
101 |
151 |
| 1.8 |
22 |
46 |
7 |
69 |
109 |
12.2 |
101 |
151 |
| 1.9 |
22 |
46 |
7.1 |
69 |
109 |
12.3 |
101 |
151 |
| 2.0 |
24 |
49 |
7.2 |
69 |
109 |
12.4 |
101 |
151 |
| 2.1 |
24 |
49 |
7.3 |
69 |
109 |
12.5 |
101 |
151 |
| 2.2 |
27 |
53 |
7.4 |
69 |
109 |
12.6 |
101 |
151 |
| 2.3 |
27 |
53 |
7.5 |
69 |
109 |
12.7 |
101 |
151 |
| 2.4 |
30 |
57 |
7.6 |
75 |
117 |
12.8 |
101 |
151 |
| 2.5 |
30 |
57 |
7.7 |
75 |
117 |
12.9 |
101 |
151 |
| 2.6 |
30 |
57 |
7.8 |
75 |
117 |
13 |
101 |
151 |
| 2.7 |
33 |
61 |
7.9 |
75 |
117 |
13.1 |
108 |
160 |
| 2.8 |
33 |
61 |
8 |
75 |
117 |
13.2 |
108 |
160 |
| 2.9 |
33 |
61 |
8.1 |
75 |
117 |
13.3 |
108 |
160 |
| 3.0 |
33 |
61 |
8.2 |
75 |
117 |
13.4 |
108 |
160 |
| 3.1 |
36 |
65 |
8.3 |
75 |
117 |
13.5 |
108 |
160 |
| 3.2 |
36 |
65 |
8.4 |
75 |
117 |
13.6 |
108 |
160 |
| 3.3 |
36 |
65 |
8.5 |
75 |
117 |
13.7 |
108 |
160 |
| 3.4 |
39 |
70 |
8.6 |
81 |
125 |
13.8 |
108 |
160 |
| 3.5 |
39 |
70 |
8.7 |
81 |
125 |
13.9 |
108 |
160 |
| 3.6 |
39 |
70 |
8.8 |
81 |
125 |
14 |
108 |
160 |
| 3.7 |
39 |
70 |
8.9 |
81 |
125 |
14.5 |
114 |
169 |
| 3.8 |
43 |
75 |
9 |
81 |
125 |
15 |
114 |
169 |
| 3.9 |
43 |
75 |
9.1 |
81 |
125 |
15.5 |
120 |
178 |
| 4.0 |
43 |
75 |
9.2 |
81 |
125 |
16 |
120 |
178 |
| 4.1 |
43 |
75 |
9.3 |
81 |
125 |
16.5 |
125 |
184 |
| 4.2 |
43 |
75 |
9.4 |
81 |
125 |
17 |
125 |
184 |
| 4.3 |
47 |
80 |
9.5 |
81 |
125 |
17.5 |
130 |
191 |
| 4.4 |
47 |
80 |
9.6 |
87 |
133 |
18 |
130 |
191 |
| 4.5 |
47 |
80 |
9.7 |
87 |
133 |
18.5 |
135 |
198 |
| 4.6 |
47 |
80 |
9.8 |
87 |
133 |
19 |
135 |
198 |
| 4.7 |
47 |
80 |
9.9 |
87 |
133 |
19.5 |
140 |
205 |
| 4.8 |
52 |
86 |
10 |
87 |
133 |
20 |
140 |
205 |
| 4.9 |
52 |
86 |
10.1 |
87 |
133 |
|
|
|
| 5.0 |
52 |
86 |
10.2 |
87 |
133 |
|
|
|
| 5.1 |
52 |
86 |
10.3 |
87 |
133 |
|
|
|
| 5.2 |
52 |
86 |
10.4 |
87 |
133 |
|
|
|
| 5.3 |
52 |
86 |
10.5 |
87 |
133 |
|
|
|
Customer Evaluate
Production & Quality Control
FAQ
Q1. Are you manufacturer or trading company?
We are professional manufacturer with more than 10 years experience in this field.
Q2. How to place an order?
1. Fill your Order List in our online Inquiry System.
2. Directly contact our sales representatives by email or social messaging channels.
We will give feedback to you ASAP after receiving your order list.
Q3. What is your payment terms?
T/T, Paypal, Western Union, and Alibaba Trade Assurance are supported for different circumstances.
Q4. What's your delivery way?
Express delivery (DHL, TNT, FEDEX, EMS), air shipping, and sea shipping are available based on your request.
Q5. Do you offer OEM?
Yes, we do. We use laser marking machines to engrave your logo and tool specifications on the body of tools. We can also print customized designs on plastic boxes.
Q6. How about the delivery time?
Usually, delivery time is 2-3 days after receiving the advance payment. For customized products, it takes 7-10 days after receiving the advance payment.
