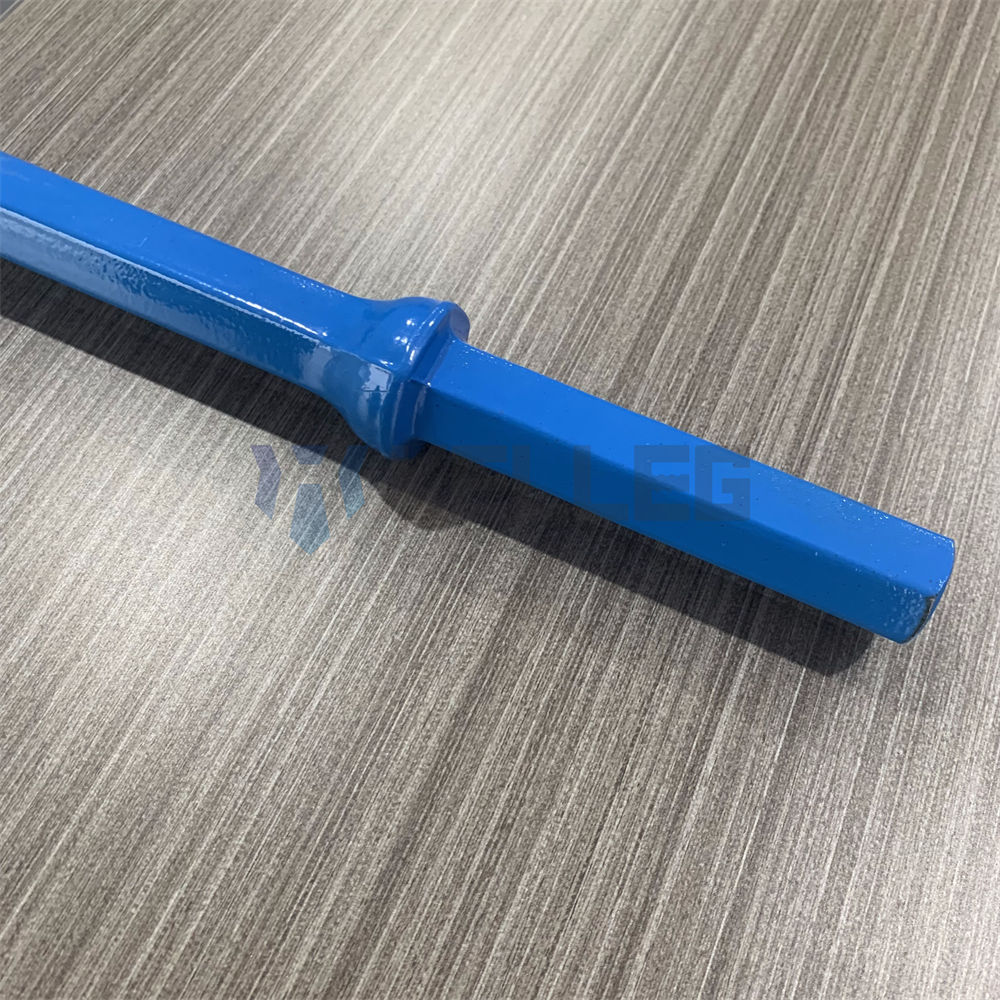

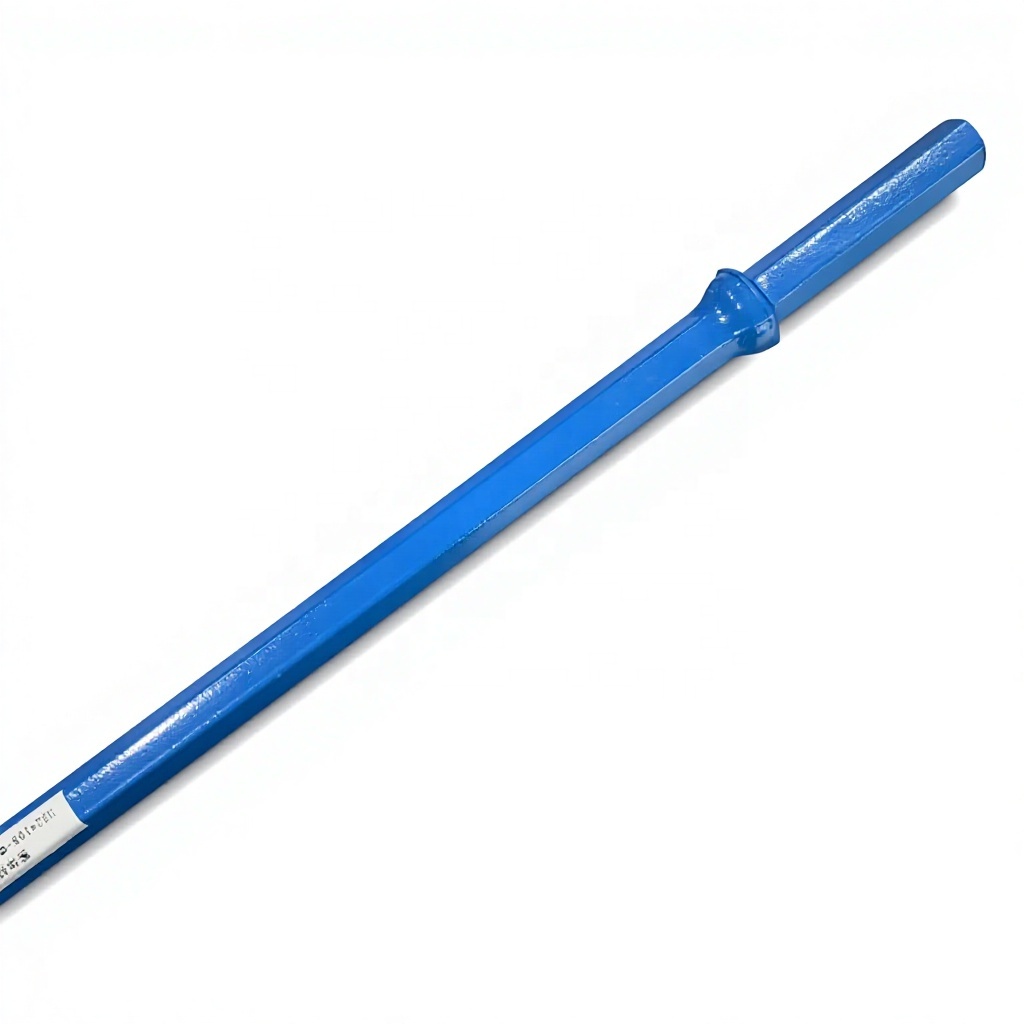

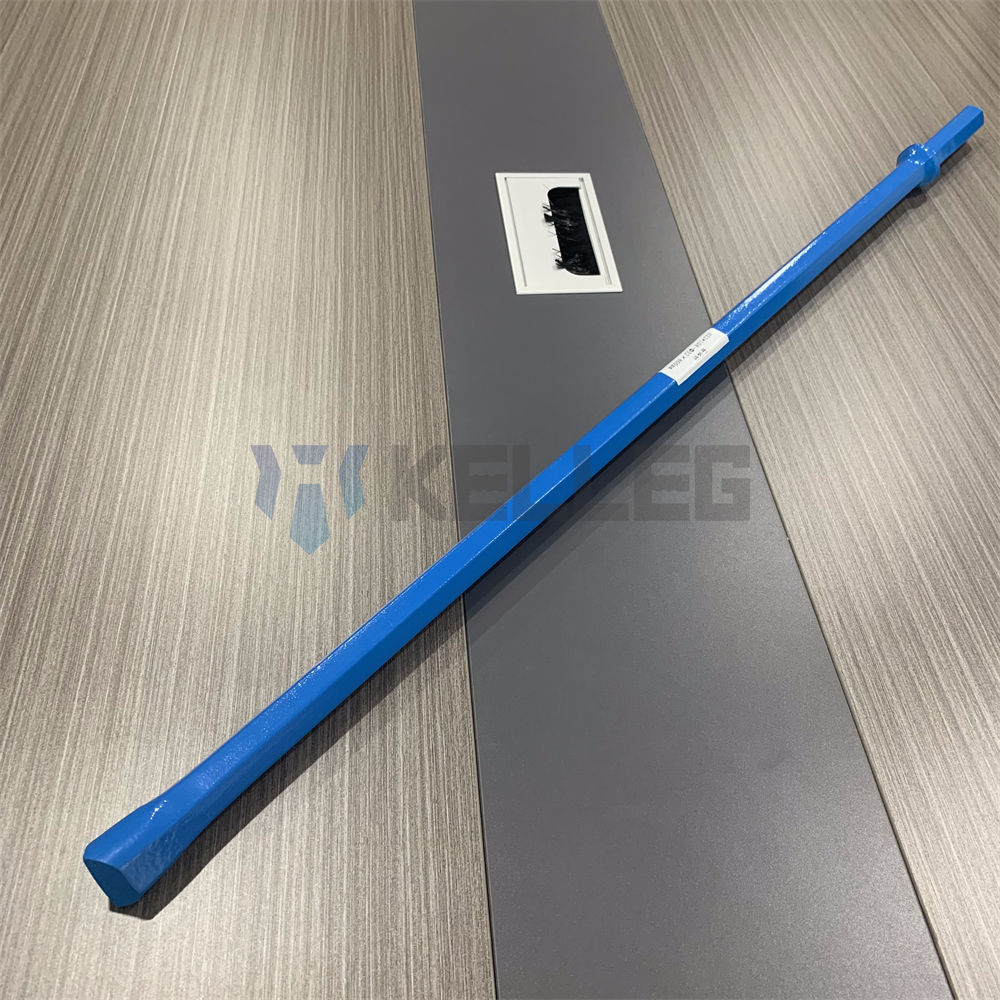

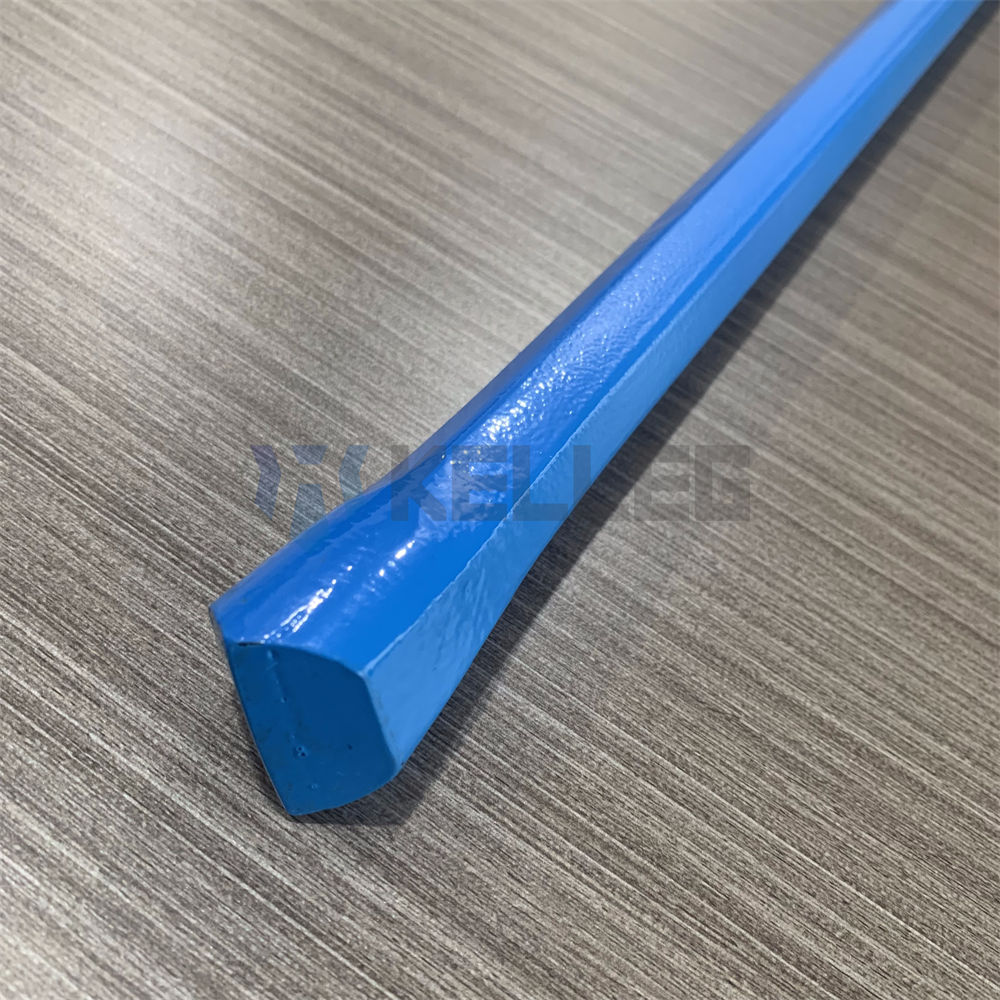

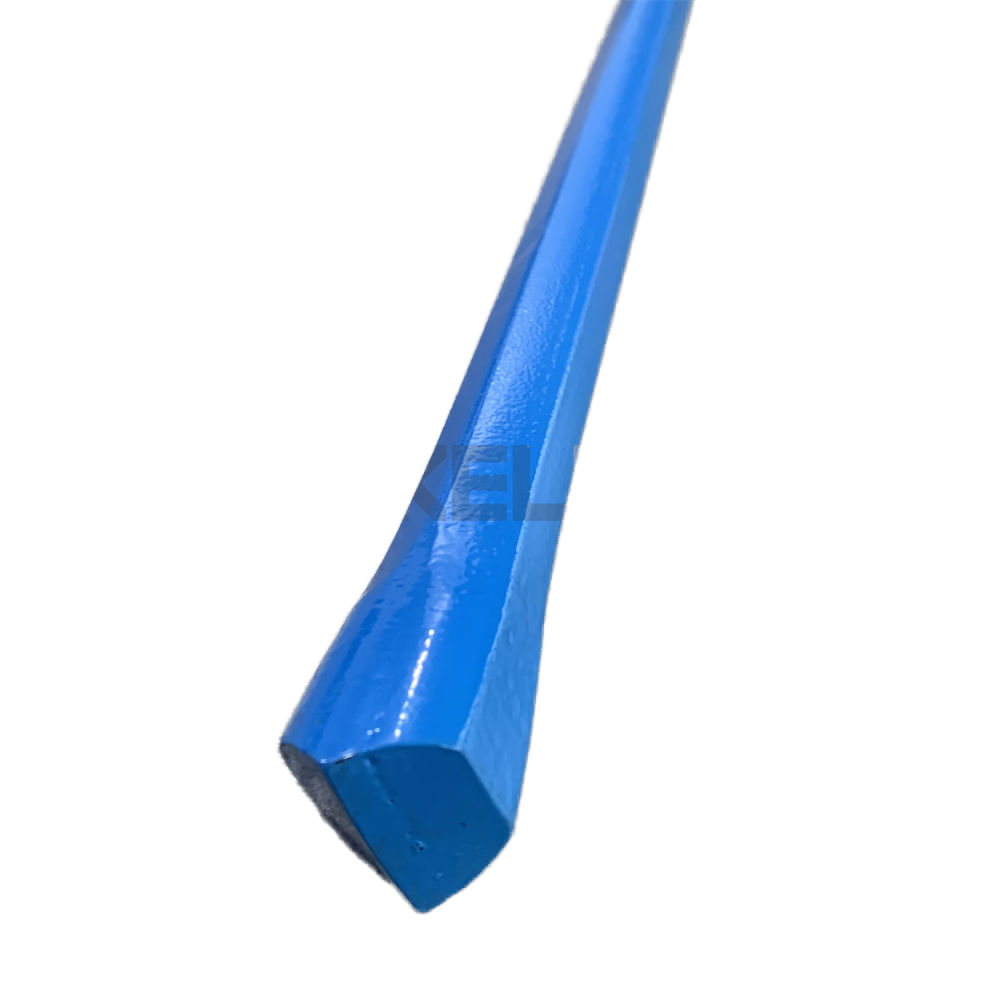

Rock drill rods are made of high-quality carbide and special steel, generally used with light rock drills. They are designed for drilling rock holes up to 50 mm in diameter.
Rock drilling tools are widely used in metallurgical mining, geological exploration, water conservancy, water conservancy construction, electric power, transportation, tunnels, quarries, national defense stone projects, and other drilling applications.

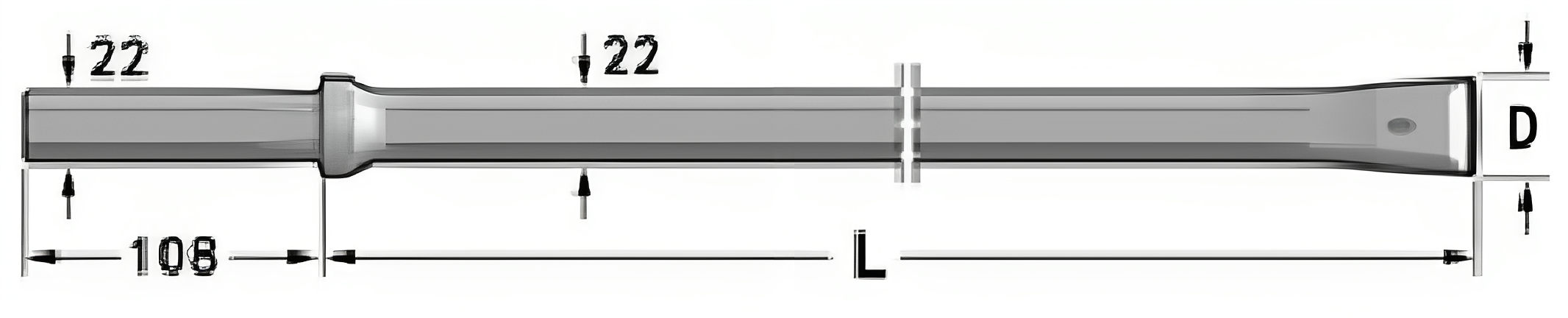

| Shank | Length | Bit Dia. (mm) | Weight (kg) | P/N | |
|---|---|---|---|---|---|
| mm | foot | ||||
| H22×108mm | 800 | 2'7" | 34 | 3.0 | K5H22-341810-0800-40-2 |
| 1600 | 5'3" | 33 | 5.2 | K5H22-331810-1600-40-2 | |
| 2400 | 7'10" | 32 | 8.0 | K5H22-321808-2400-40-2 | |
| 3200 | 10'6" | 31 | 10.2 | K5H22-311808-3200-40-2 | |
| 4000 | 13'1" | 30 | 12.9 | K5H22-301808-4000-40-2 | |
| 4800 | 15'9" | 29 | 15.1 | K5H22-291508-4800-40-2 | |
| 5600 | 18'4" | 28 | 17.6 | K5H22-281508-5600-40-2 | |
| 6400 | 21' | 27 | 20.1 | K5H22-271508-6400-40-2 | |
| 7200 | 23'6" | 26 | 22.5 | K5H22-261508-7200-40-2 | |
| 800 | 2'7" | 40 | 3.0 | K5H22-401810-0800-40-2 | |
| 1600 | 5'3" | 39 | 5.2 | K5H22-391810-1600-40-2 | |
| 2400 | 7'10" | 38 | 8.0 | K5H22-381810-2400-40-2 | |
| 3200 | 10'6" | 37 | 10.2 | K5H22-371810-3200-40-2 | |
| 4000 | 13'1" | 36 | 12.9 | K5H22-361810-4000-40-2 | |
| 4800 | 15'9" | 35 | 15.1 | K5H22-351810-4800-40-2 | |
| 5600 | 18'4" | 34 | 17.6 | K5H22-341810-5600-40-2 | |
| 6400 | 21' | 33 | 20.1 | K5H22-331810-6400-40-2 | |
| 7200 | 23'6" | 32 | 22.5 | K5H22-321808-7200-40-2 | |
| 8000 | 26'2" | 31 | 25.0 | K5H22-311808-8000-40-2 | |
| 400 | 1'4" | 34 | 1.7 | K5H22-341810-0400-40-2 | |
| 800 | 2'7" | 33 | 3.0 | K5H22-331810-0800-40-2 | |
| 1200 | 3'11" | 32 | 4.1 | K5H22-321808-1200-40-2 | |
| 1600 | 5'3" | 31 | 5.2 | K5H22-311808-1600-40-2 | |
| 2000 | 6'7" | 30 | 6.7 | K5H22-301808-2000-40-2 | |
| 600 | 2' | 41 | 2.4 | K5H22-411810-0600-40-2 | |
| 1200 | 3'11" | 40 | 4.3 | K5H22-401810-1200-40-2 | |
| 1800 | 5'11" | 39 | 6.2 | K5H22-391810-1800-40-2 | |
| 2400 | 7'10" | 38 | 8.0 | K5H22-381810-2400-40-2 | |
| 400 | 1'4" | 41 | 1.7 | K5H22-411810-0400-40-2 | |
| 800 | 2'7" | 29 | 3.0 | K5H22-291508-0800-40-2 | |
| 800 | 2'7" | 38 | 3.1 | K5H22-381810-0800-40-2 | |
| 1200 | 3'11" | 39 | 4.3 | K5H22-391810-1200-40-2 | |
| 1600 | 5'3" | 36 | 5.2 | K5H22-361810-1600-40-2 | |
| 1800 | 5'11" | 36 | 6.0 | K5H22-361810-1800-40-2 | |
| 2000 | 6'7" | 32 | 8.0 | K5H22-321808-2000-40-2 | |
| 2400 | 7'10" | 27 | 8.0 | K5H22-271508-2400-40-2 | |
| 3200 | 10'6" | 27 | 10.2 | K5H22-271508-3200-40-2 | |
| 3200 | 10'6" | 32 | 10.3 | K5H22-321808-3200-40-2 | |
| 6400 | 21' | 30 | 20.1 | K5H22-301808-6400-40-2 | |
| 8000 | 26'2" | 26 | 25.0 | K5H22-261508-8000-40-2 | |
A: We generally have no minimum order quantity. Trial orders of all sizes are welcome.
A: Yes, we perform 100% strict inspection and testing for every order before packing to ensure the highest quality and performance standards.
A: Delivery takes 1-3 days for products currently in stock; regular customized order delivery is completed in 2-3 weeks.
A: Technical support and pre-sale consulting are available at any time to help you choose the right tools and solutions for your project.
A: Free replacements will be provided immediately once the failure is confirmed to be caused by product quality issues.
A: The support team will respond to your questions within 24 hours (excluding holidays).
