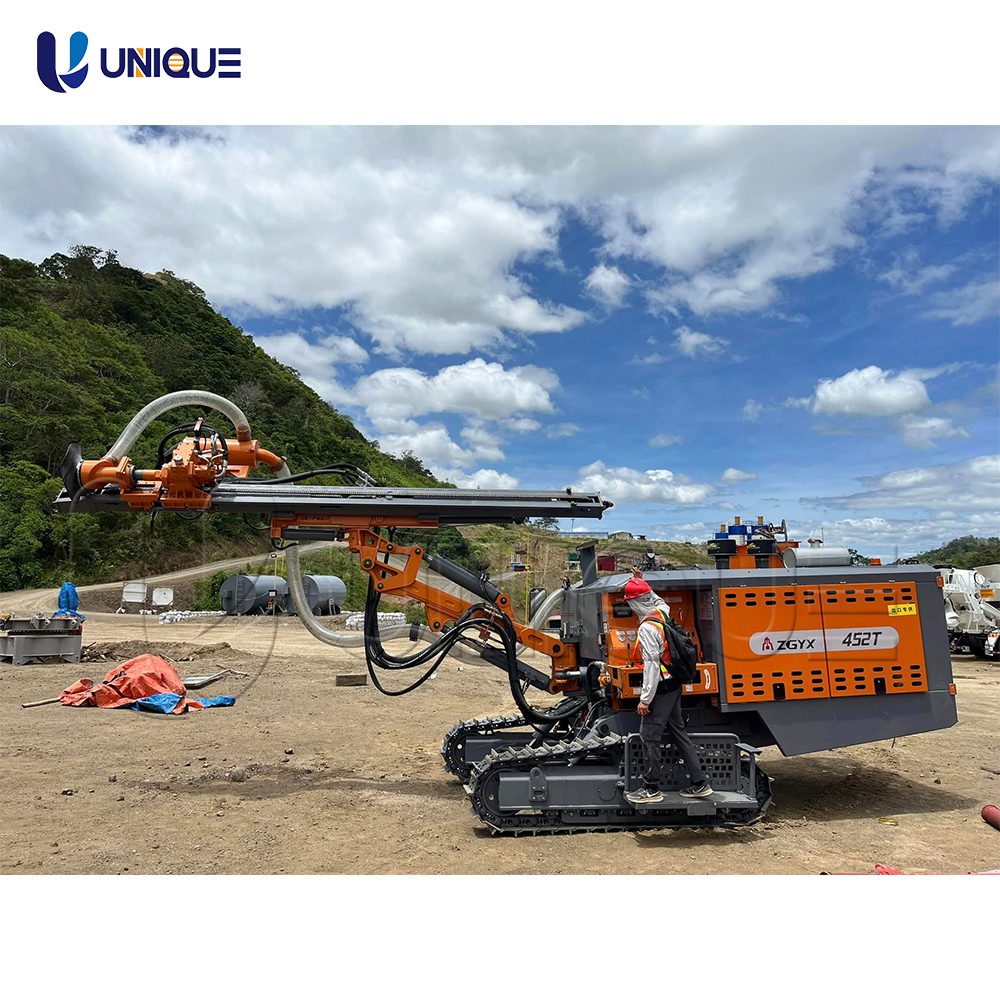

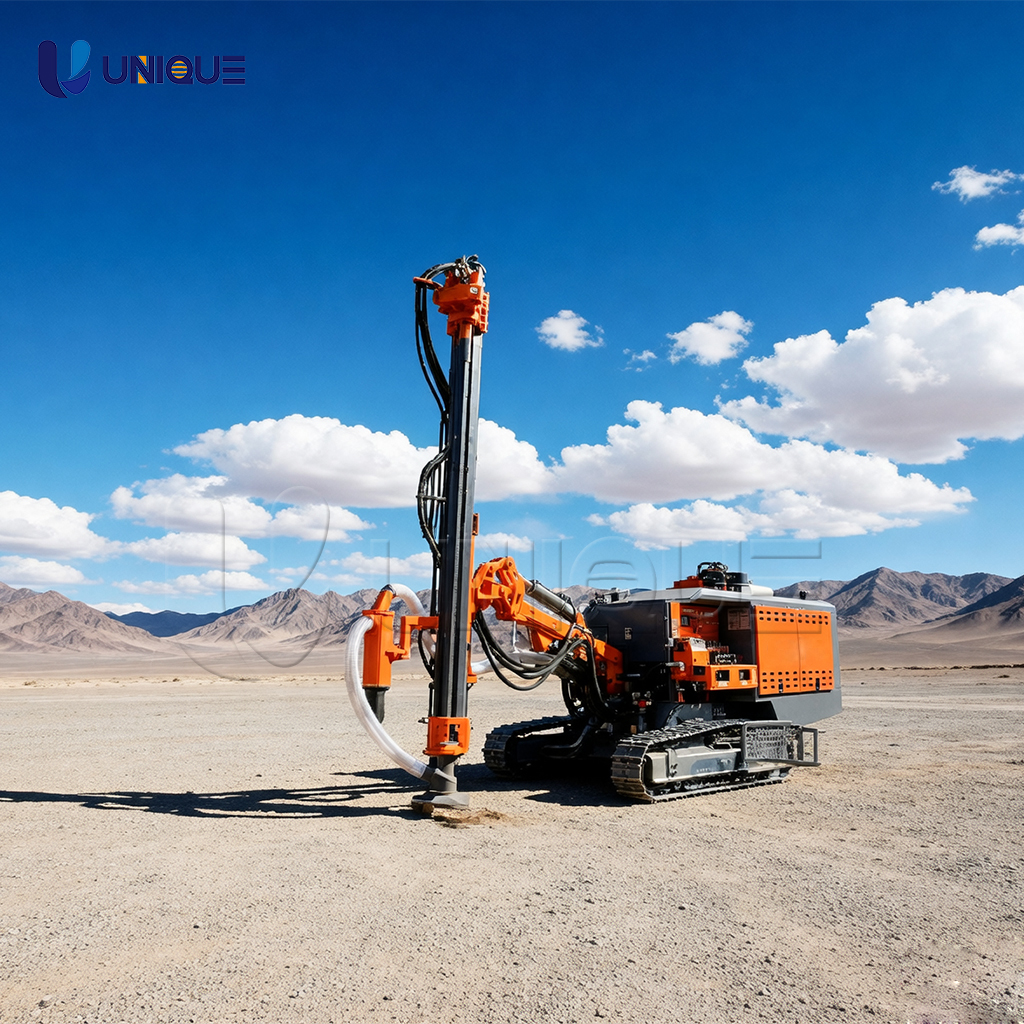

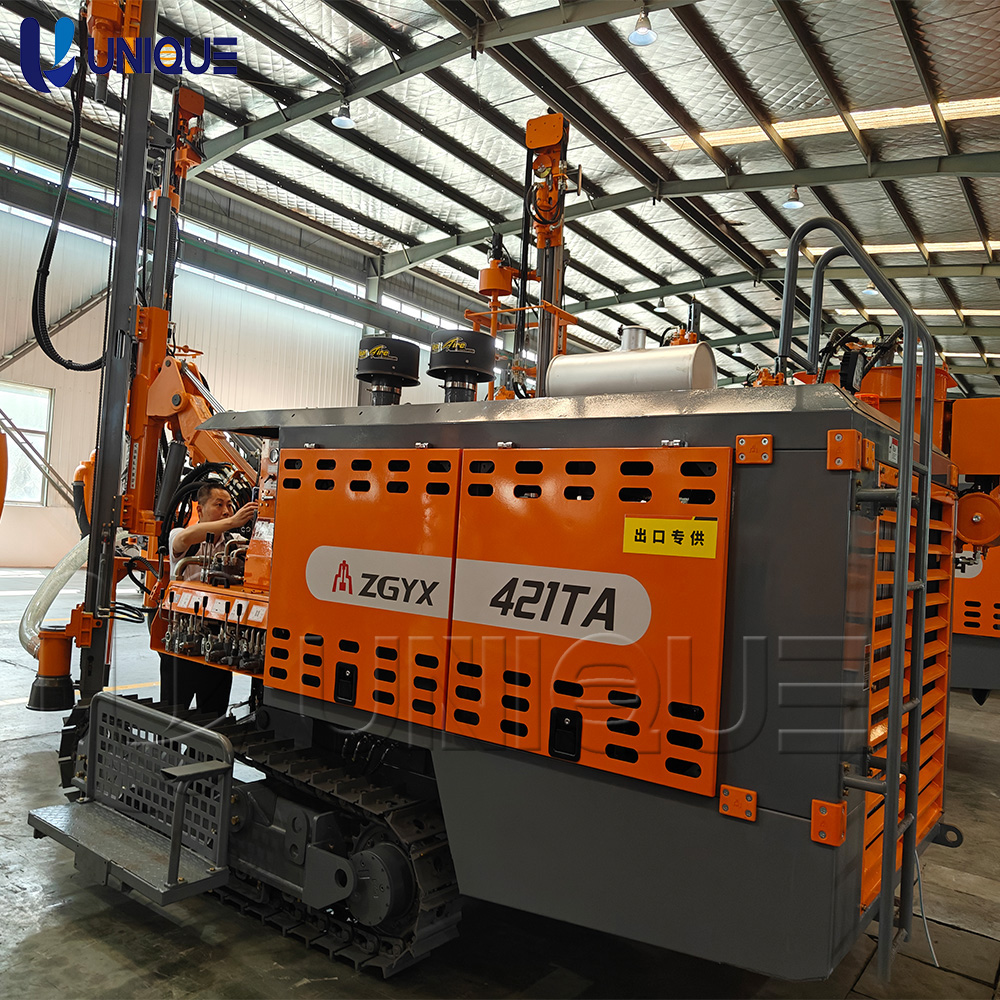

Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation
Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation
Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation
Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation
Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation
1 / 5
Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation
Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation
Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation
Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation
Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation

Factory Price ZGYX Blasthole DTH Mine Drilling Rig CE Certified Rock Drill Machine For Construction Foundation

Send Inquiry

Product Description

Products Description

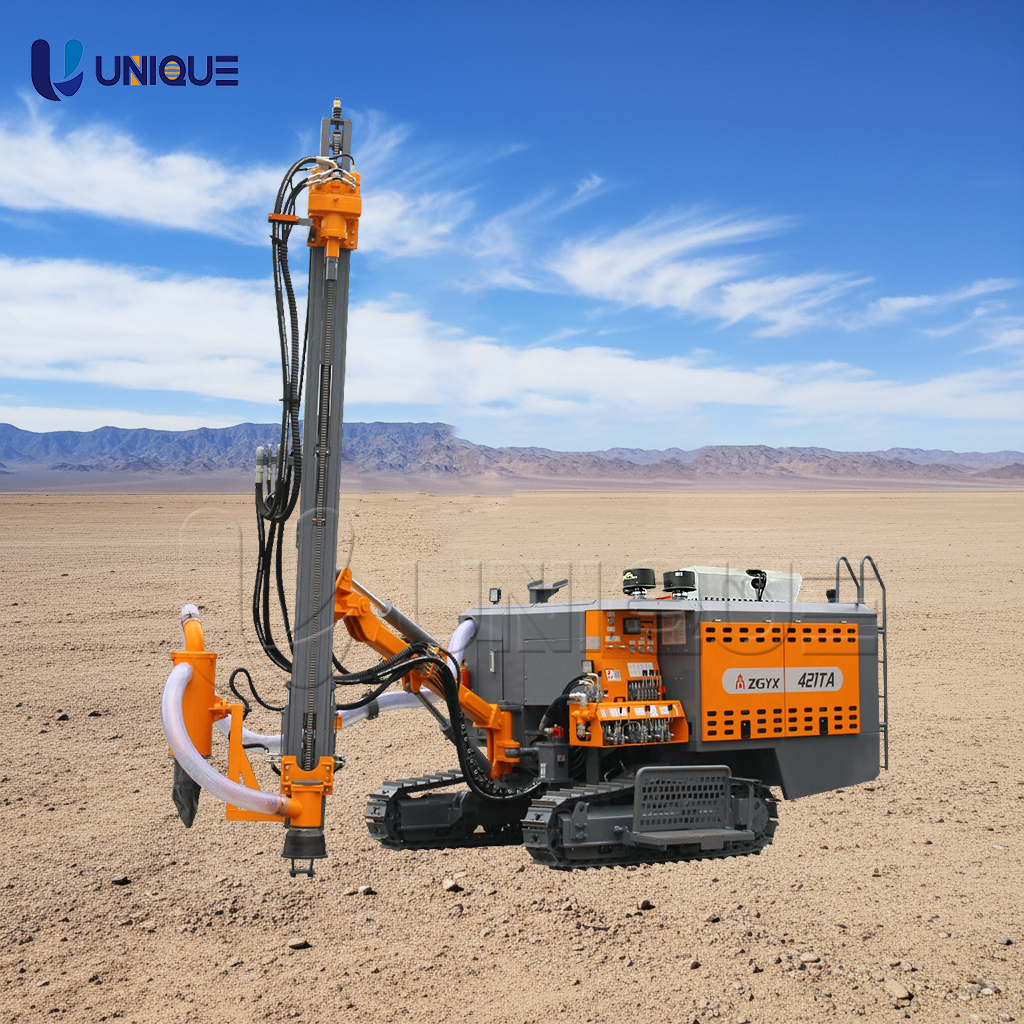

Drilling Rig Product Overview
Drilling Rig Features Details
  • Standard equipped with Yuchai 4 cylinder diesel engine or electric motor for 3 meter drill rod with 68mm or 76mm, dry dust collector for option.
  • All structural parts reinforced for various work conditions.
  • The rotation unit driven by cycloid motor for more compact structure and low failure rate.
  • Torque improved for larger hole range drilling and widely used for foundation bolting and anchoring, casing and large hole spiral drilling.
  • New enclosure design for better appearance and convenient for maintenance and service.
  • Optional dry dust collector for dust free drilling, more environment friendly and energy saving.
  • Standard equipped with plunger piston tramming motor for more powerful climbility & more reliable quality.
Drilling Rig Structural Design

Product Parameters

Model ZGYX-421T ZGYX-452T ZGYX-453 ZGYX-454
Dimension (L×W×H) (mm) 7480×2300×2750 9000×2360×3000 9300×2360×3000 11200×2360×3100
Weight (kg) 8870 10360 13960 15000
Engine (Standard) Yuchai / 162kW Yuchai / 191kW Yuchai / 221kW Yuchai / 264kW
Rotation torque (MAX) (N.m) 1500 2200 2800 4000
Drilling Hole Diameter (mm) 90-127 90-138 90-138 115-152
DTH hammer (Standard) (inch) 3.5 4 4 5
Drilling rod (mm) dia60x3000 dia36x3000 dia76x4000 dia89x5000
Diesel Tank volume (L) 250 300 480
Technical Specifications Chart

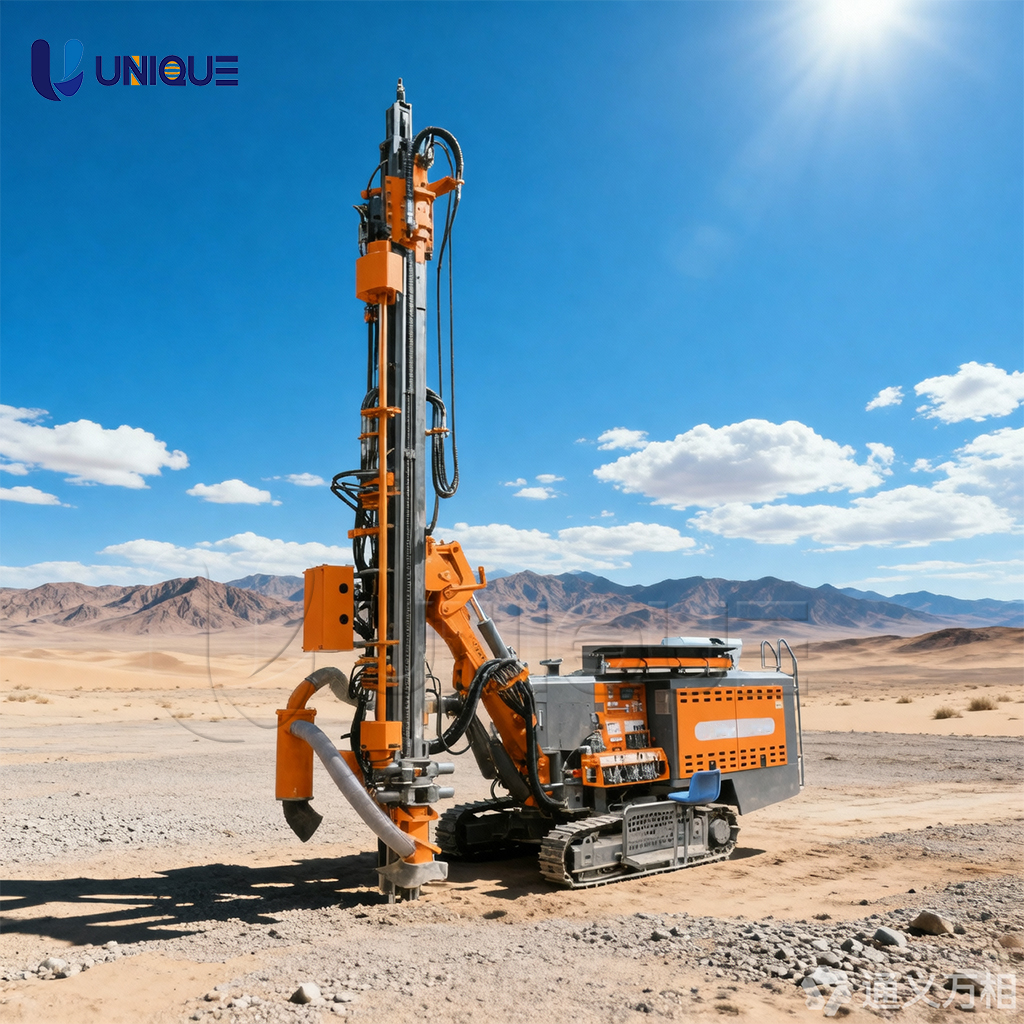

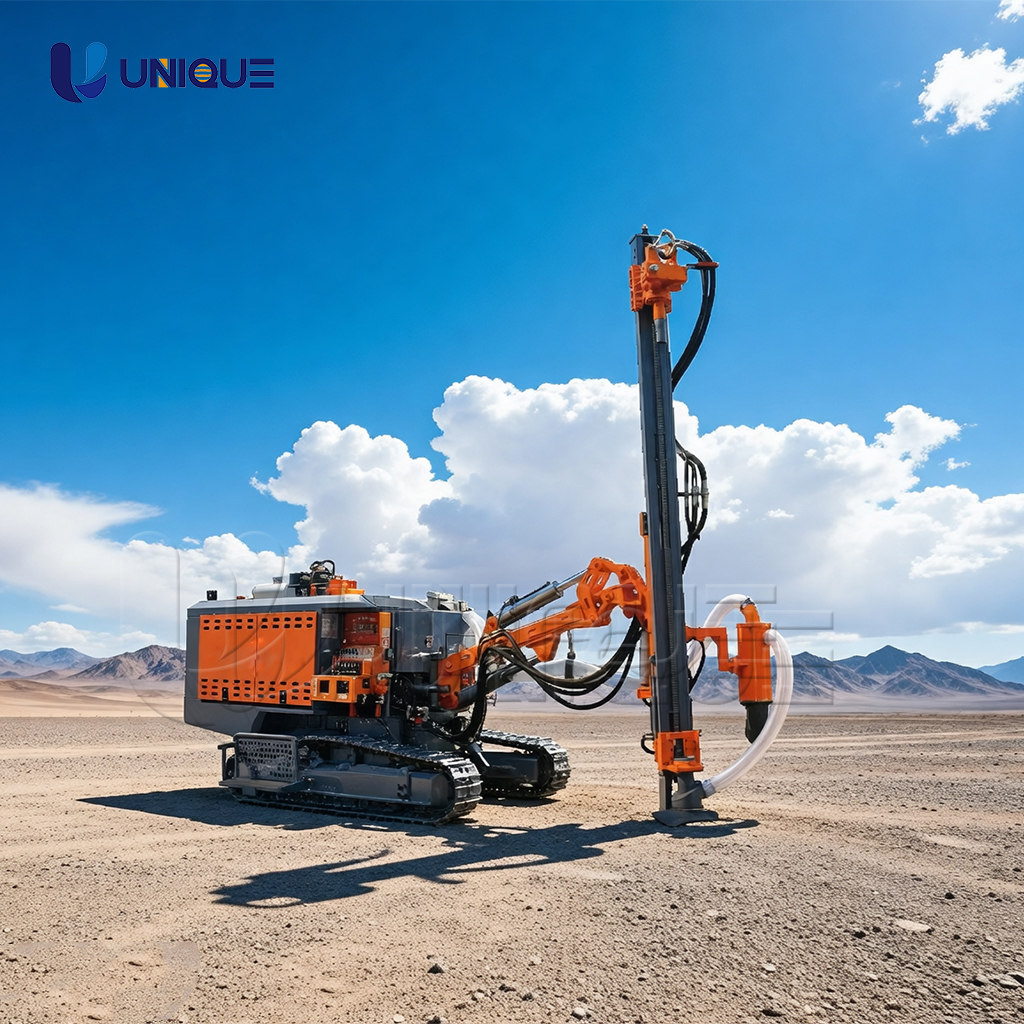

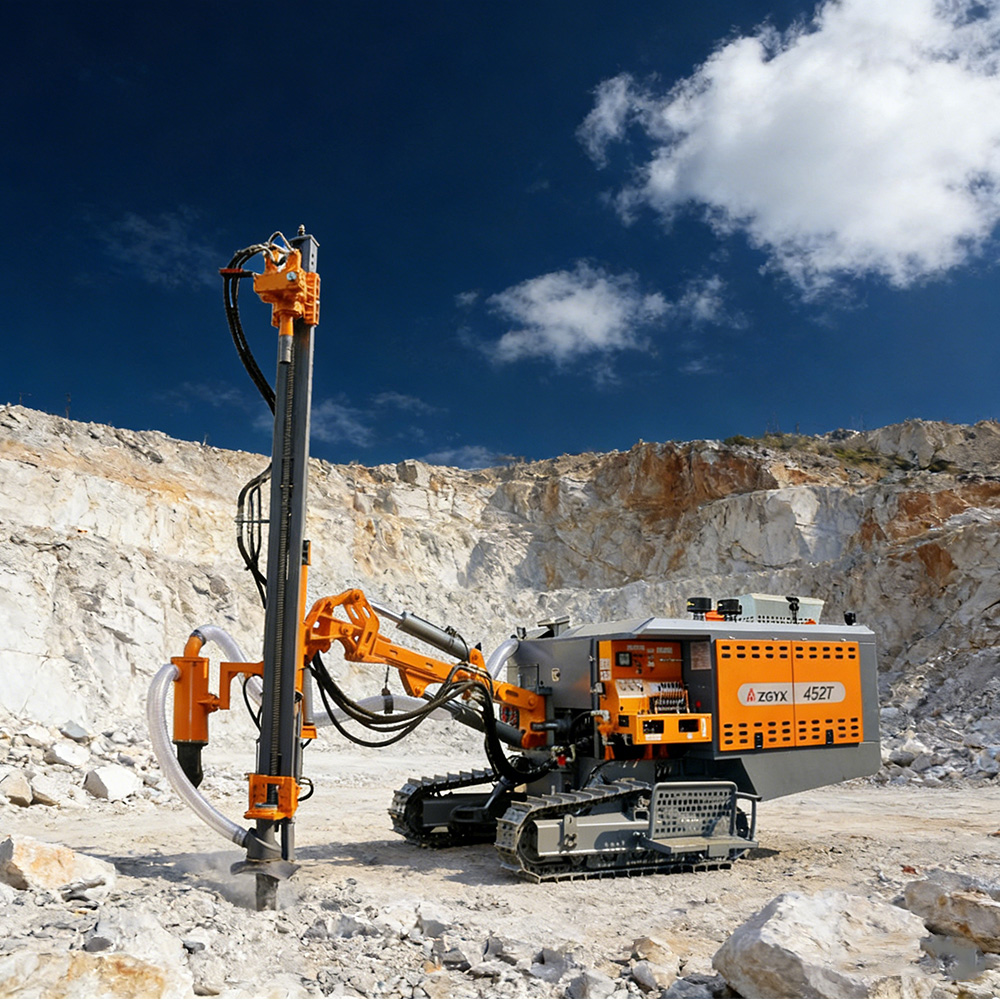

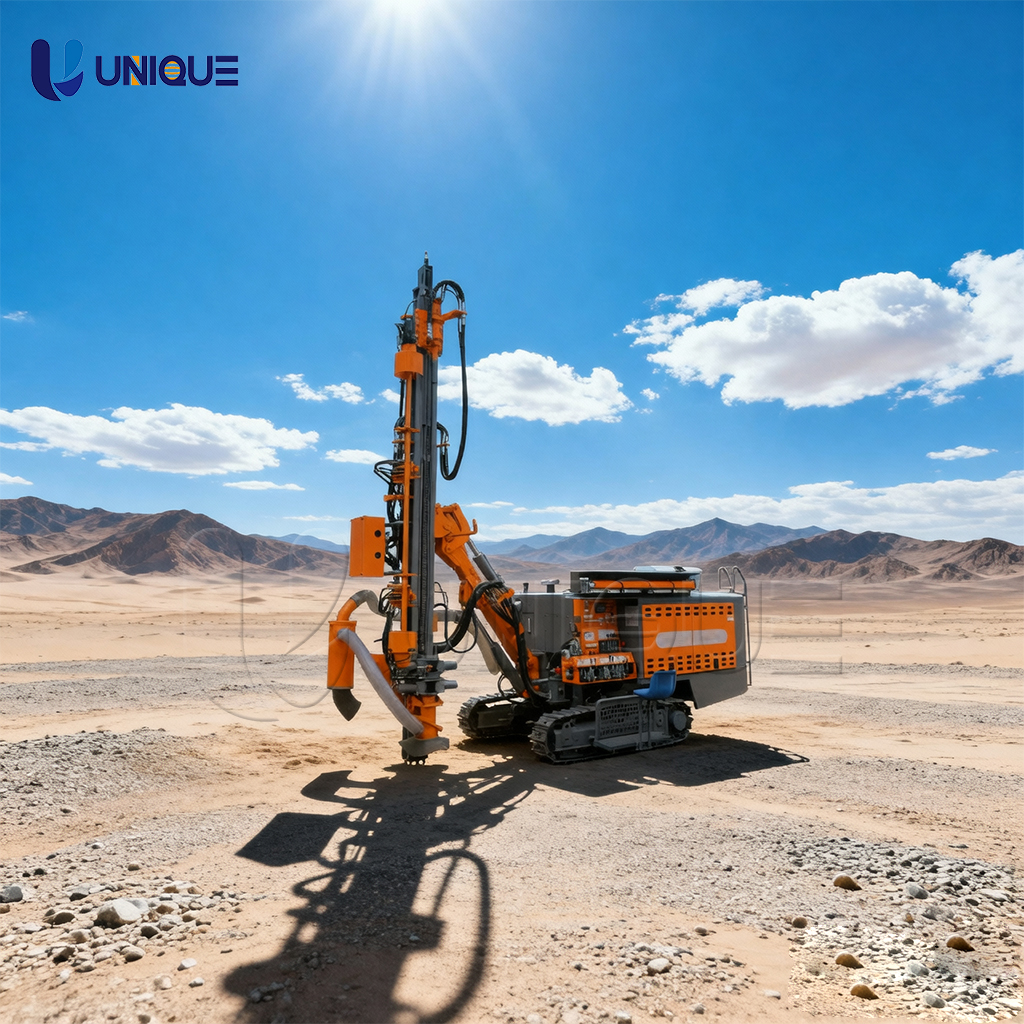

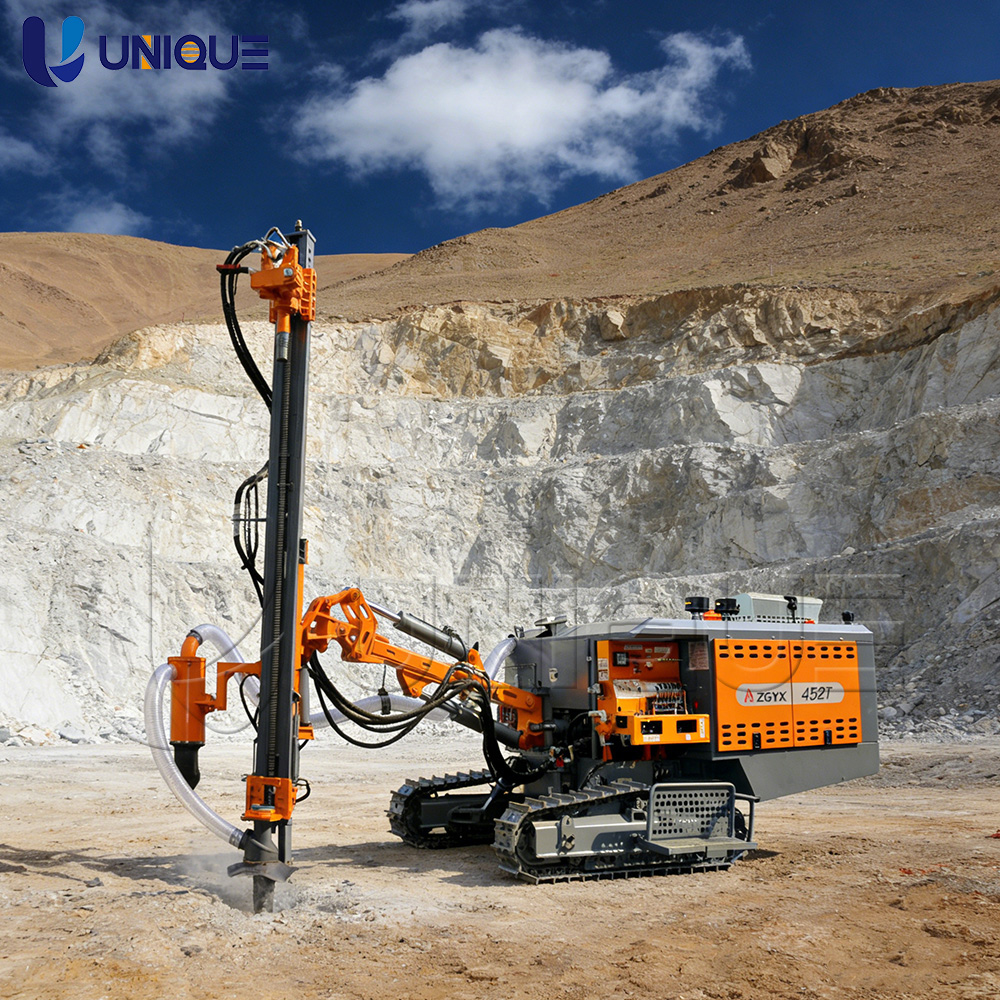

Production Process 1 Production Process 2 Production Process 3 Production Process 4 Production Process 5 Production Process 6 Production Process 7

Application

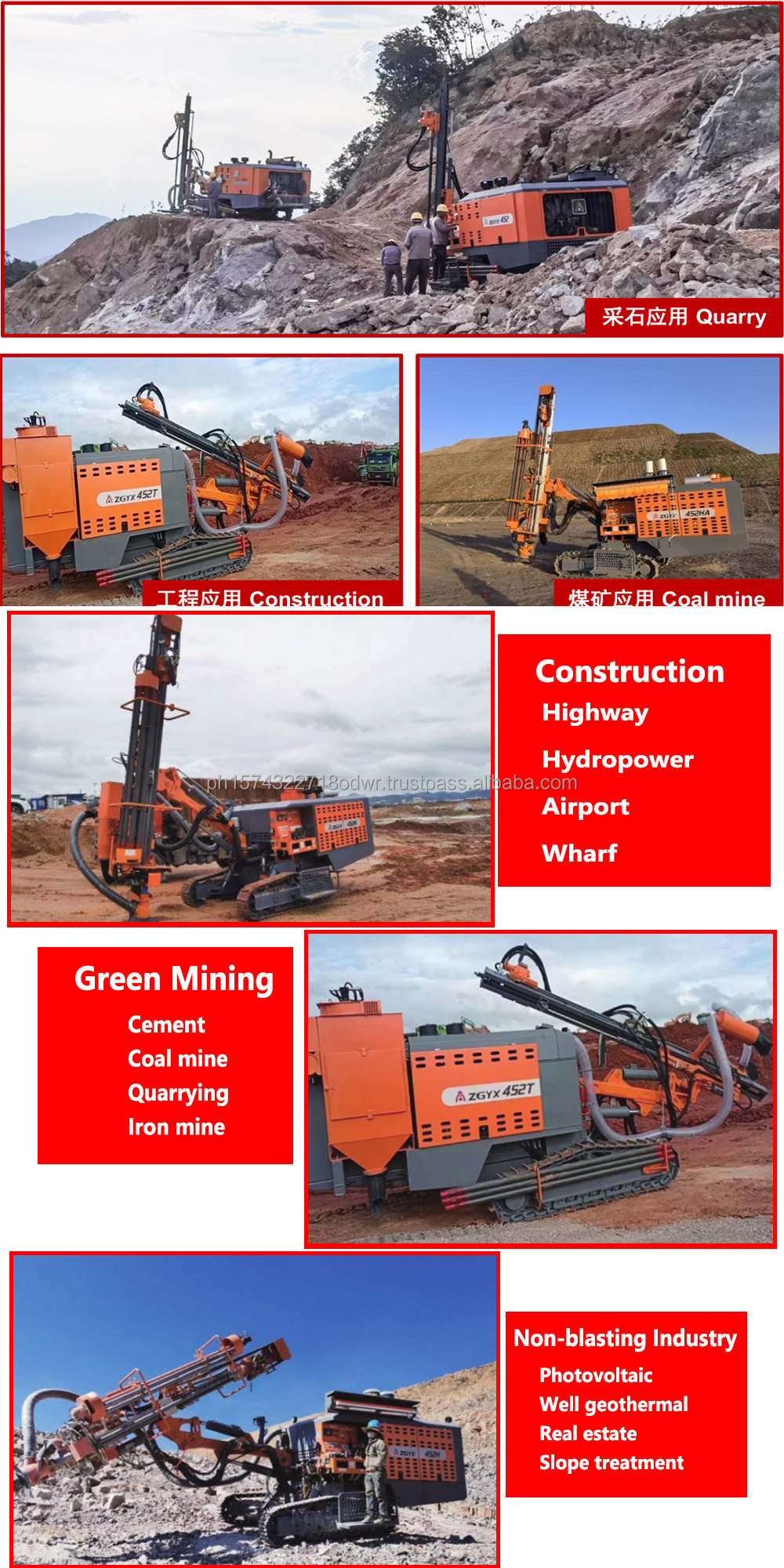

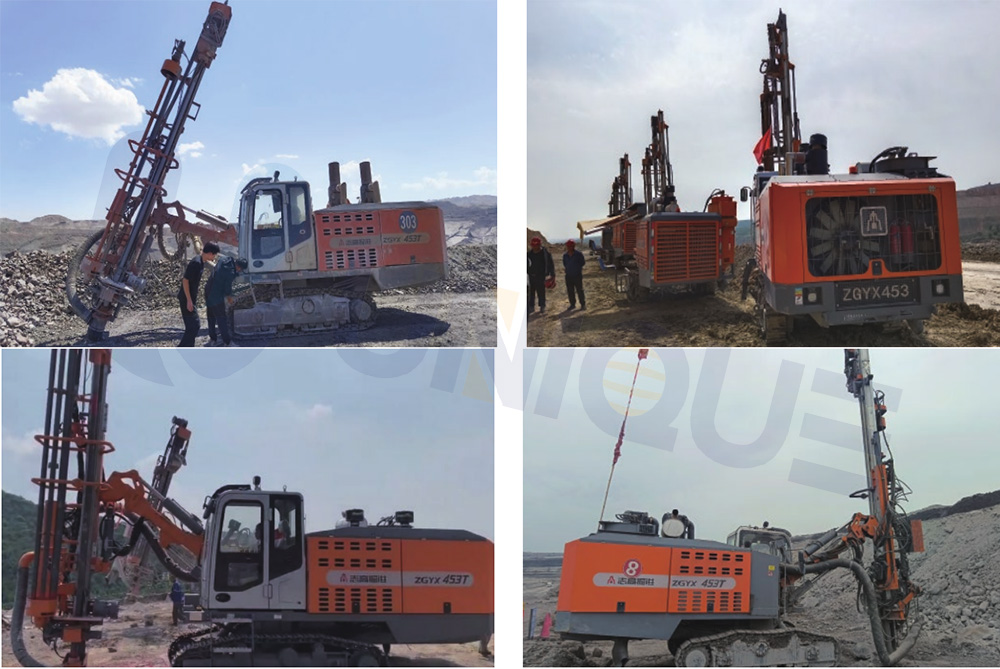

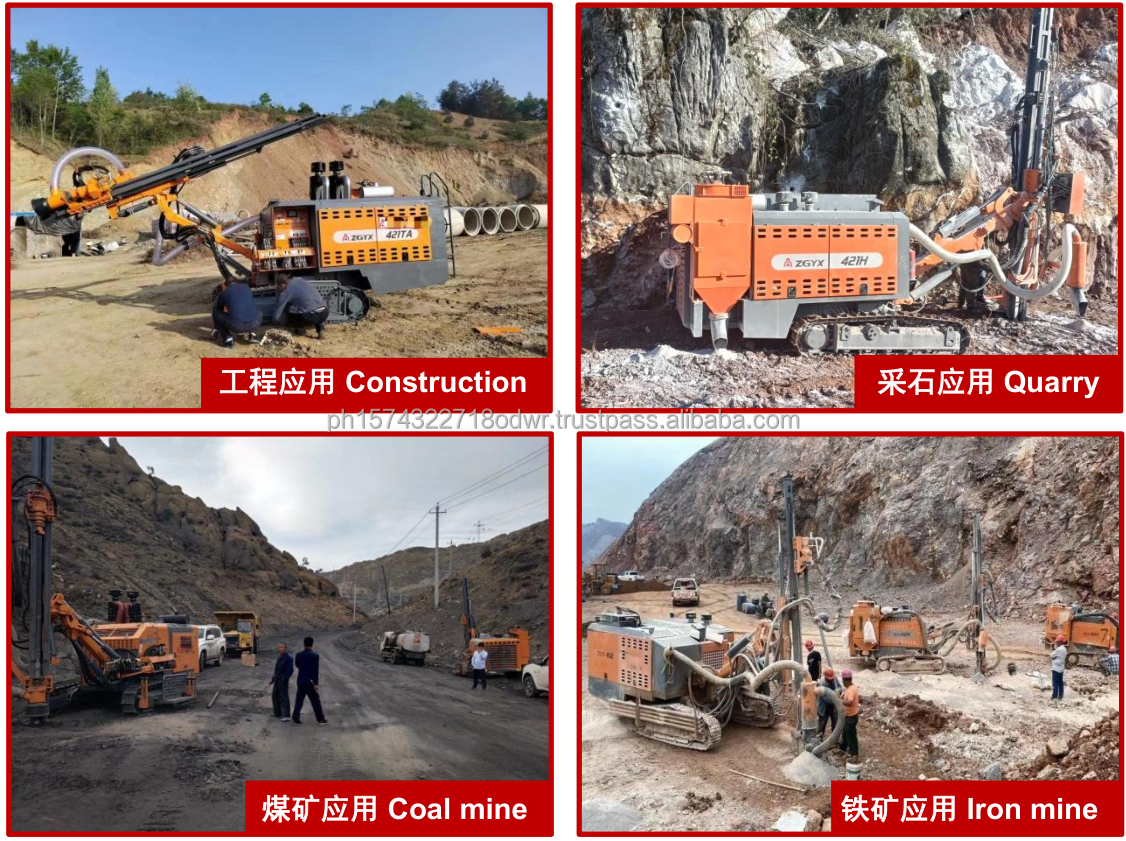

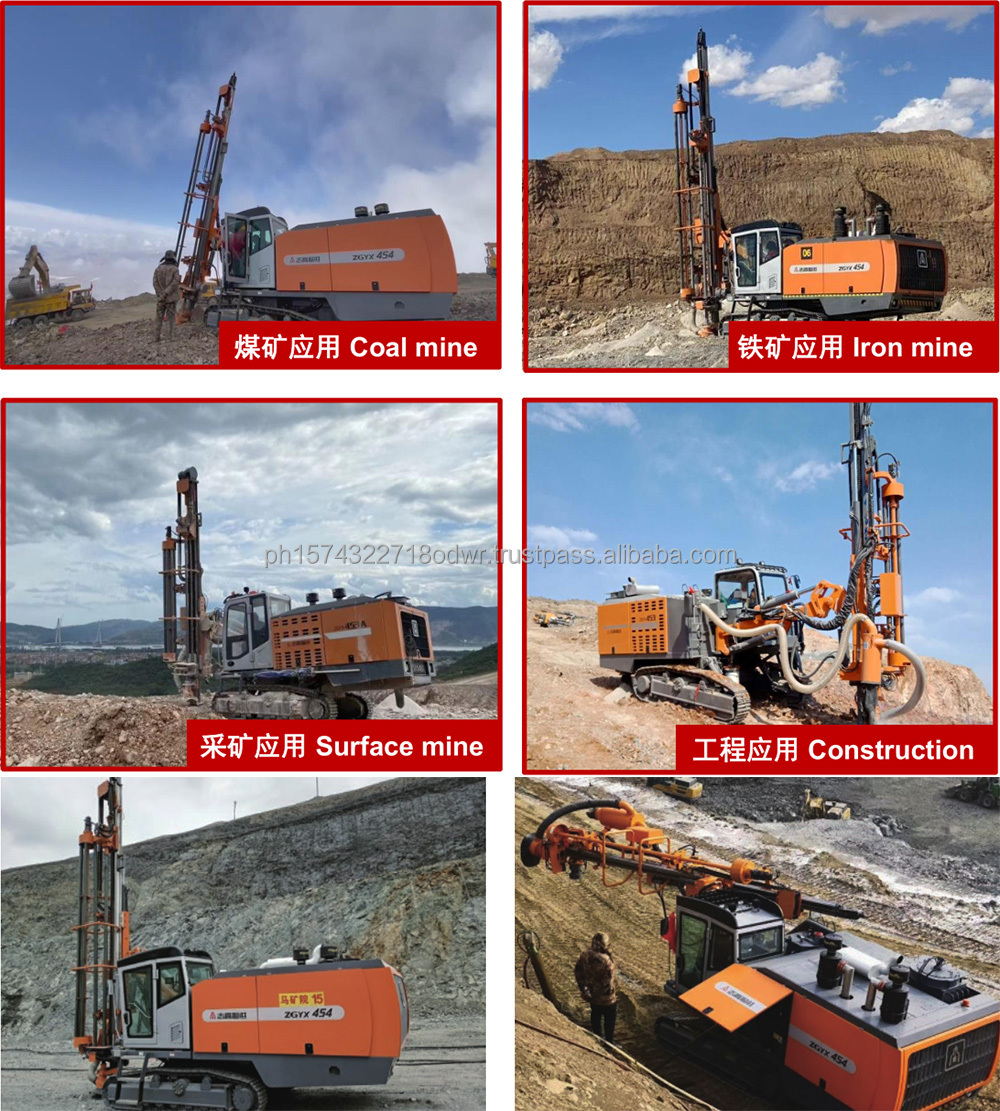

Working Application Scenario 1 Working Application Scenario 2 Working Application Scenario 3 Working Application Scenario 4

Product Packaging

Packaging: standard Container, standard Packs or in Bulk. The electrical motor or spare parts will be packed by wooden case or steel frame. Shipping: we deliver the cargo to China's main sea ports, such as Qingdao, Tianjin, Shanghai etc. And then the container will be transported to your country by sea.
Drilling Rig Standard Packaging

After-sale service of water well drilling machine

  • Warranty: More than 12 months' warranty period.
  • Erection & Commissioning: On-site system configuration and support.
  • Operator Training: Full instructional training for operations.
  • Spare Parts Supply: Equipment spares will be offered with manufacturing cost for at least 10 years.
To establish long-term cooperation, we will regularly contact clients to check the equipment working condition, offer maintenance suggestions, and if necessary, pay visits to solve problems caused during operation.

Exhibition

Exhibition Presence

Company Profile

A reliable and professional supplier of Bore Hole Drilling Machine for Marble. Since founded more than 10 years ago, the company has accumulated much experience in the business of air compressors and drilling rig machines.

Dedicated to producing Mining machinery for many years, the company is not only a professional manufacturer of mining equipment in the R&D manufacture, but also a leader manufacturer and distributor of Mining Machinery. The brand is recognized worldwide for high quality, reliability, and excellent customer service. The facility is always open for domestic and international client visits.

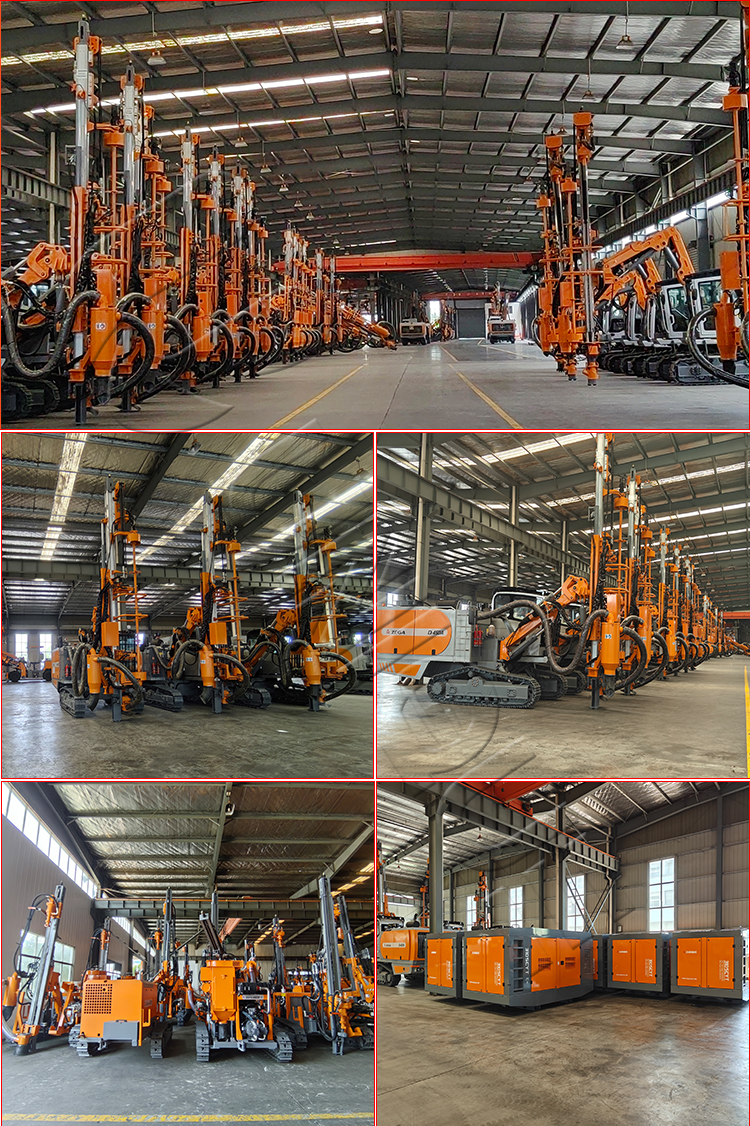

Manufacturing Factory Facility 1 Manufacturing Factory Facility 2

Frequently Asked Questions

Q1 Are you a manufacturer?
Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2 How can we guarantee quality?
We control and monitor quality rigorously adhering to ISO and CE standard requirements.
Q3 What can you buy from us?
Drilling rig machine, Stone Crusher Plant, Mobile Stone Crusher Plant, Air Compressor, Diesel Generator Set, and Crawler Crane.
Q4 Do you offer any deals or discounts?
Yes, the final pricing depends on the order volume. Different quantities qualify for different pricing structures.
Q5 Do you have after-sale service and warranty service?
Yes, we supply operations and maintenance instructions. If required, we can send engineers on-site to assist with machine repair. The machine is backed by a one-year warranty.
