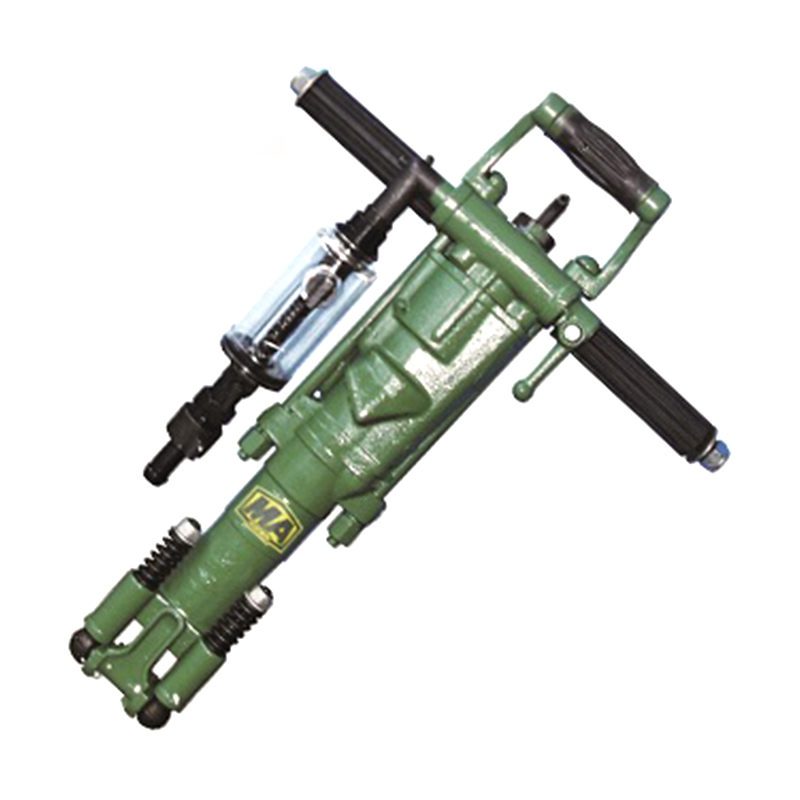

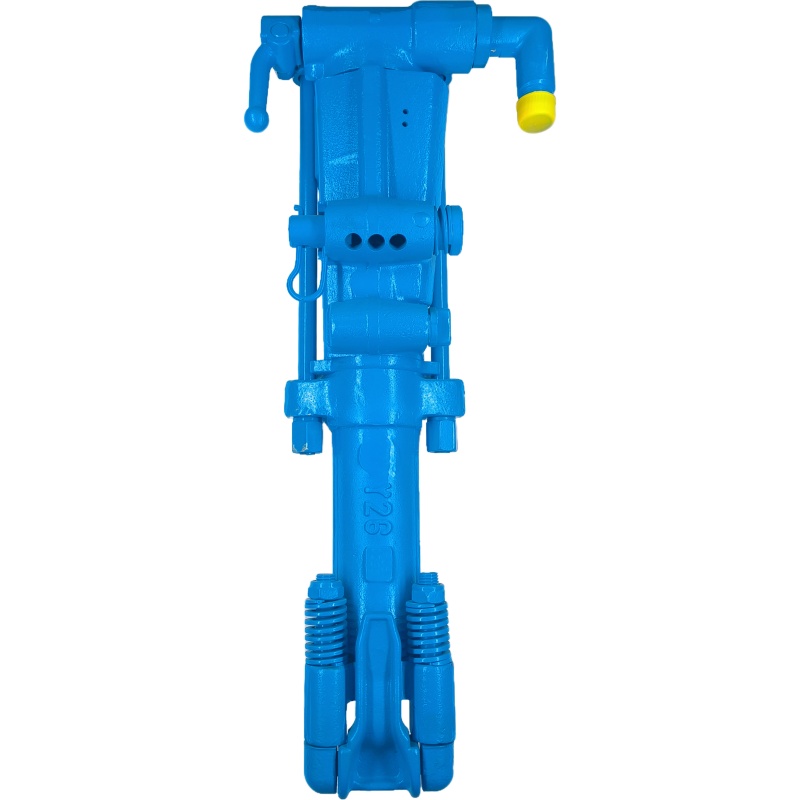

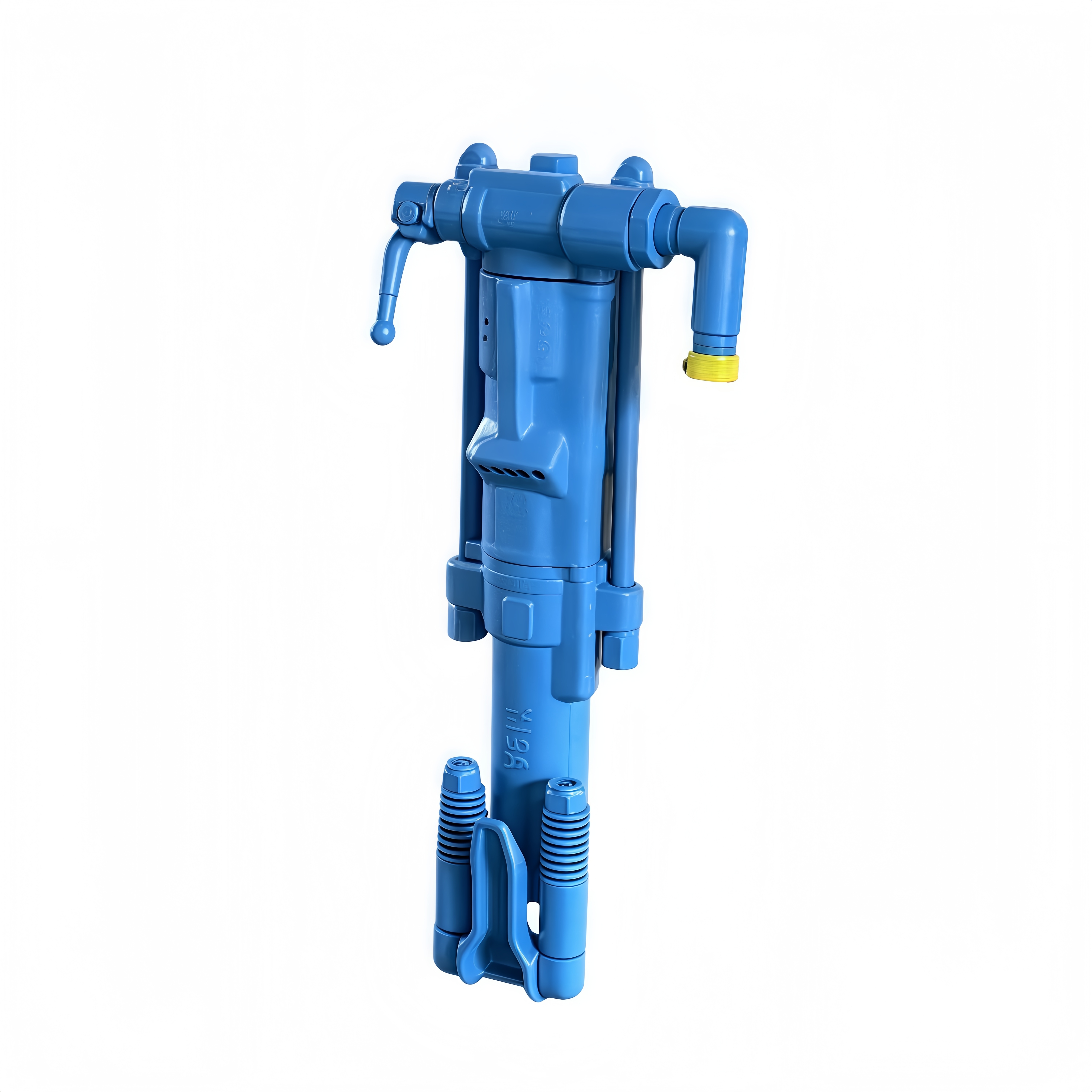

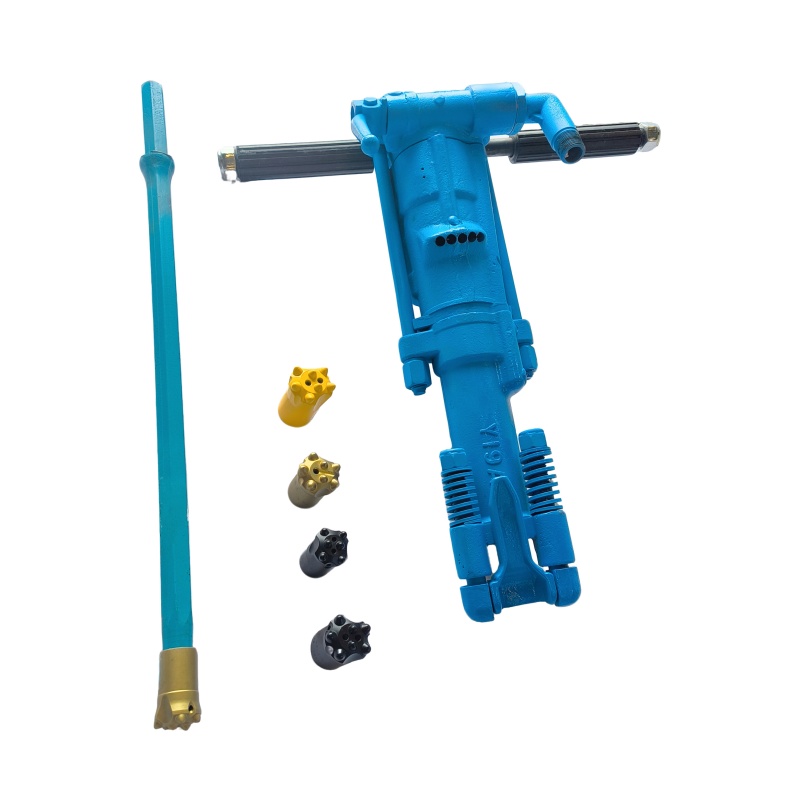

This machine is mainly used in small quarries, small coal mines and limestone mines for drilling, blasting for construction roads in mountain areas, also in the capital construction for water conservancy works.

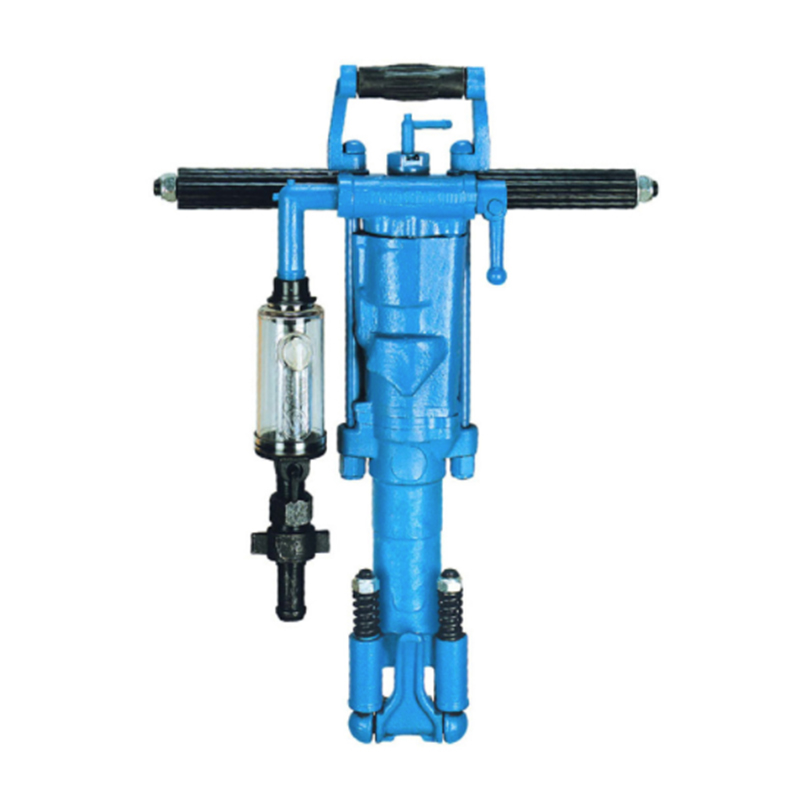

| Y19A Hand-held Pneumatic Rock Drill Technical Specifications | Unit | ||
|---|---|---|---|
| Weight | 19 | kg | |
| Dimension (L*W*H) | 600*534*157 | mm | |
| Cylinder Diameter | 65 | mm | |
| Piston Stroke Length | 54 | mm | |
| Air Hose Inner Diameter | 19 | mm | |
| Water Hose Inner Diameter | 13 | mm | |
| Drill Hole Diameter | 34 - 40 | mm | |
| Max. Drilling Depth | 5 | m | |
| Shank Adapter | H22×108±1 | mm | |
| Performance Under Air Pressure | 0.4 Mpa | 0.5 Mpa | Unit |
| Impact Energy | ≥28 | ≥40 | J |
| Impact Frequency | ≥28 | ≥35 | Hz |
| Idling Speed | ≥180 | ≥200 | r/min |
| Air Consumption | ≤37 | ≤43 | L/s |

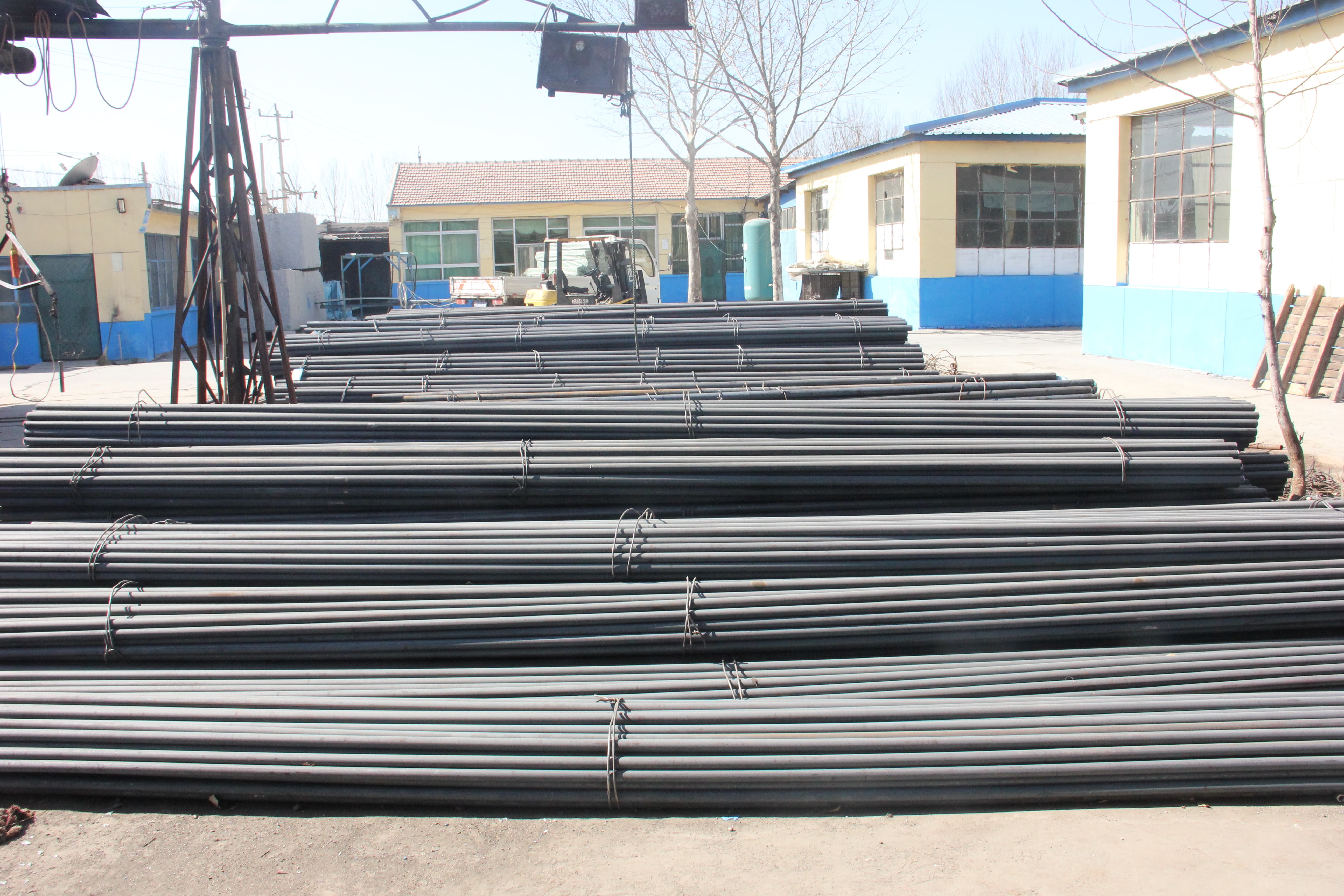

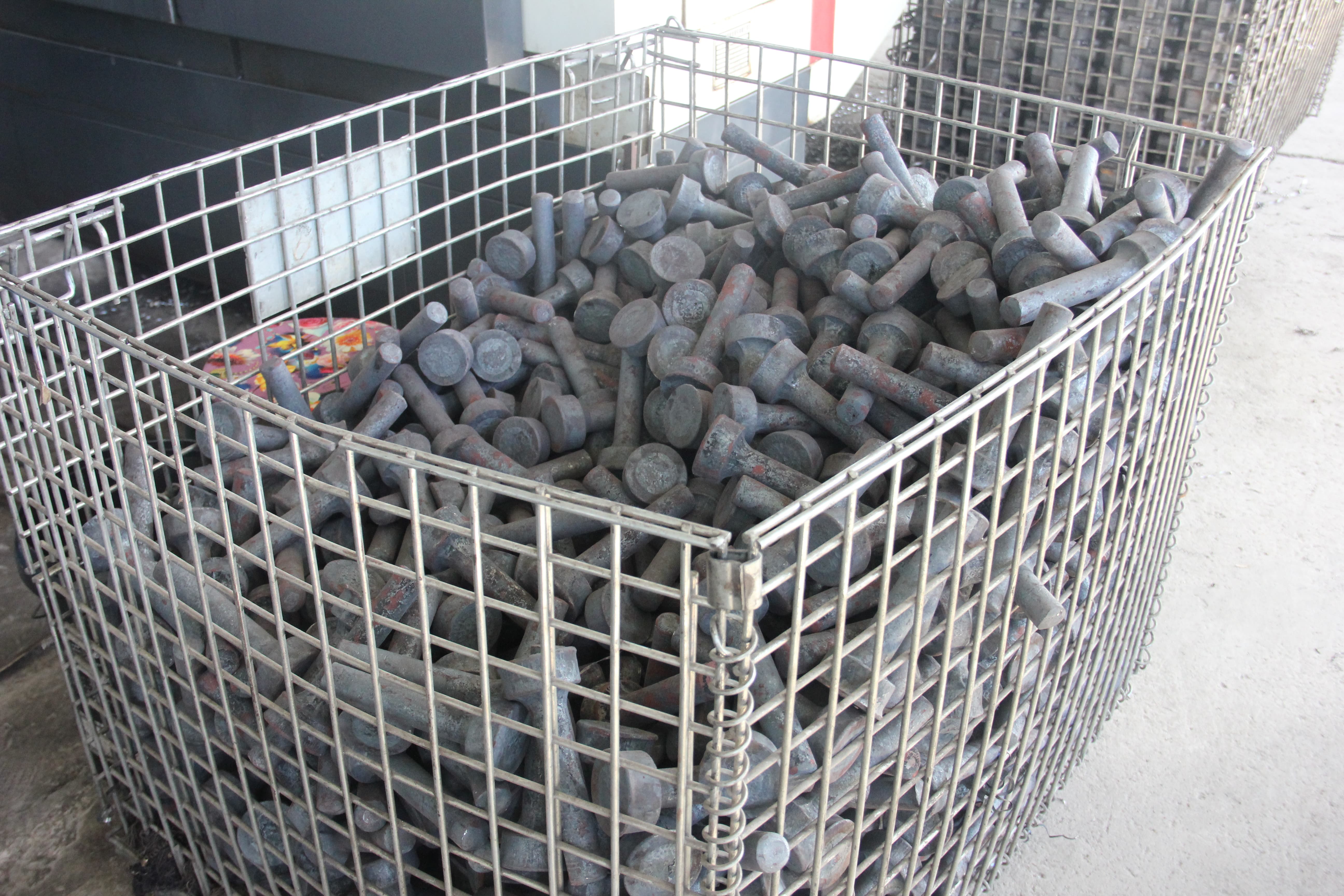

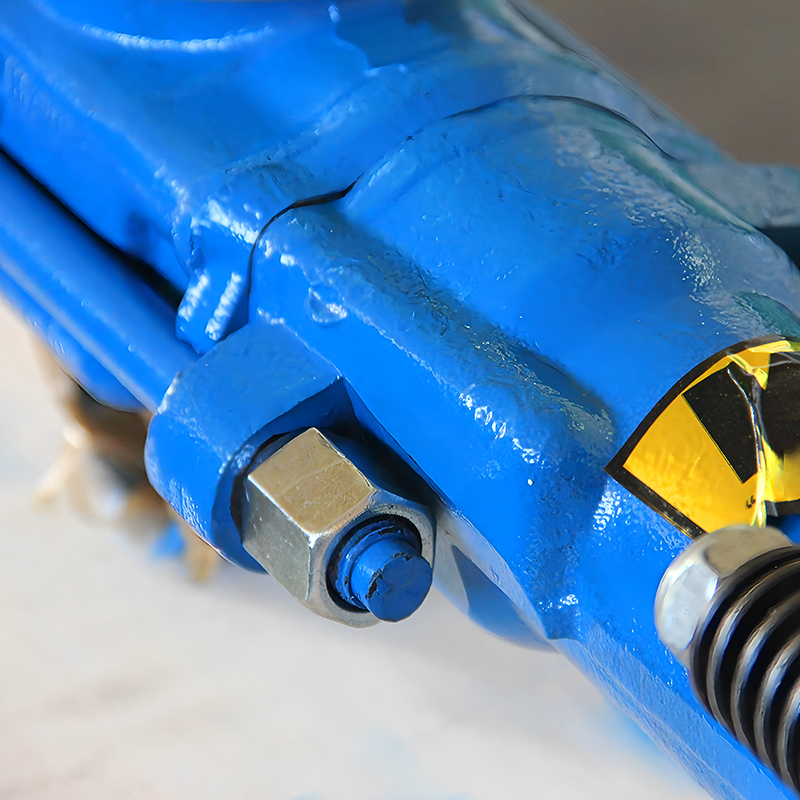

The cylinder body utilizes forging instead of casting, effectively eliminating casting defects such as cracks and pores to enhance overall structural integrity. This results in superior strength and toughness, greatly extending operational service life.

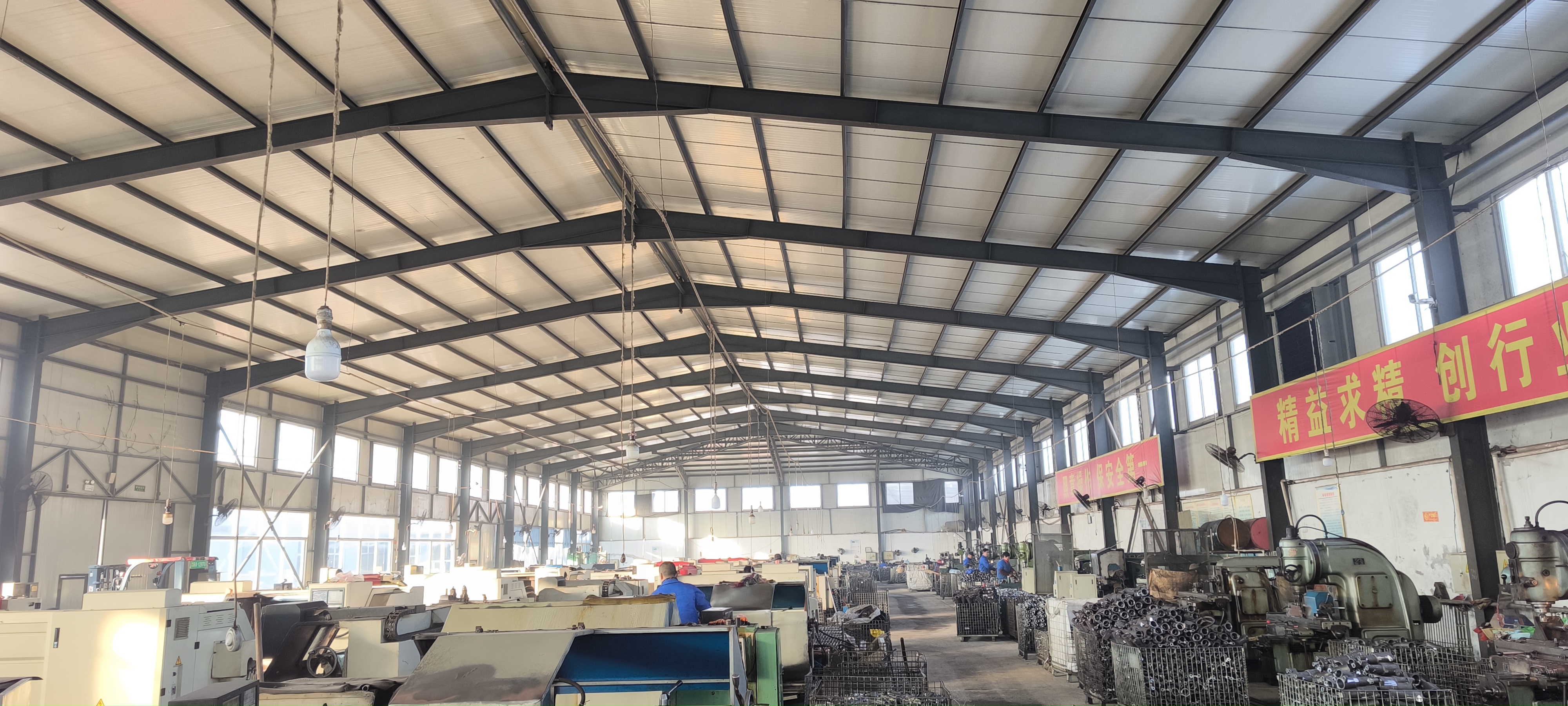

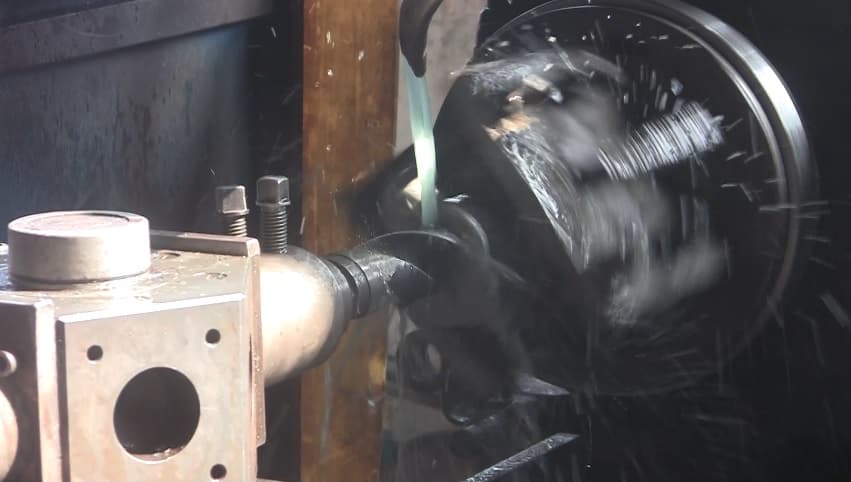

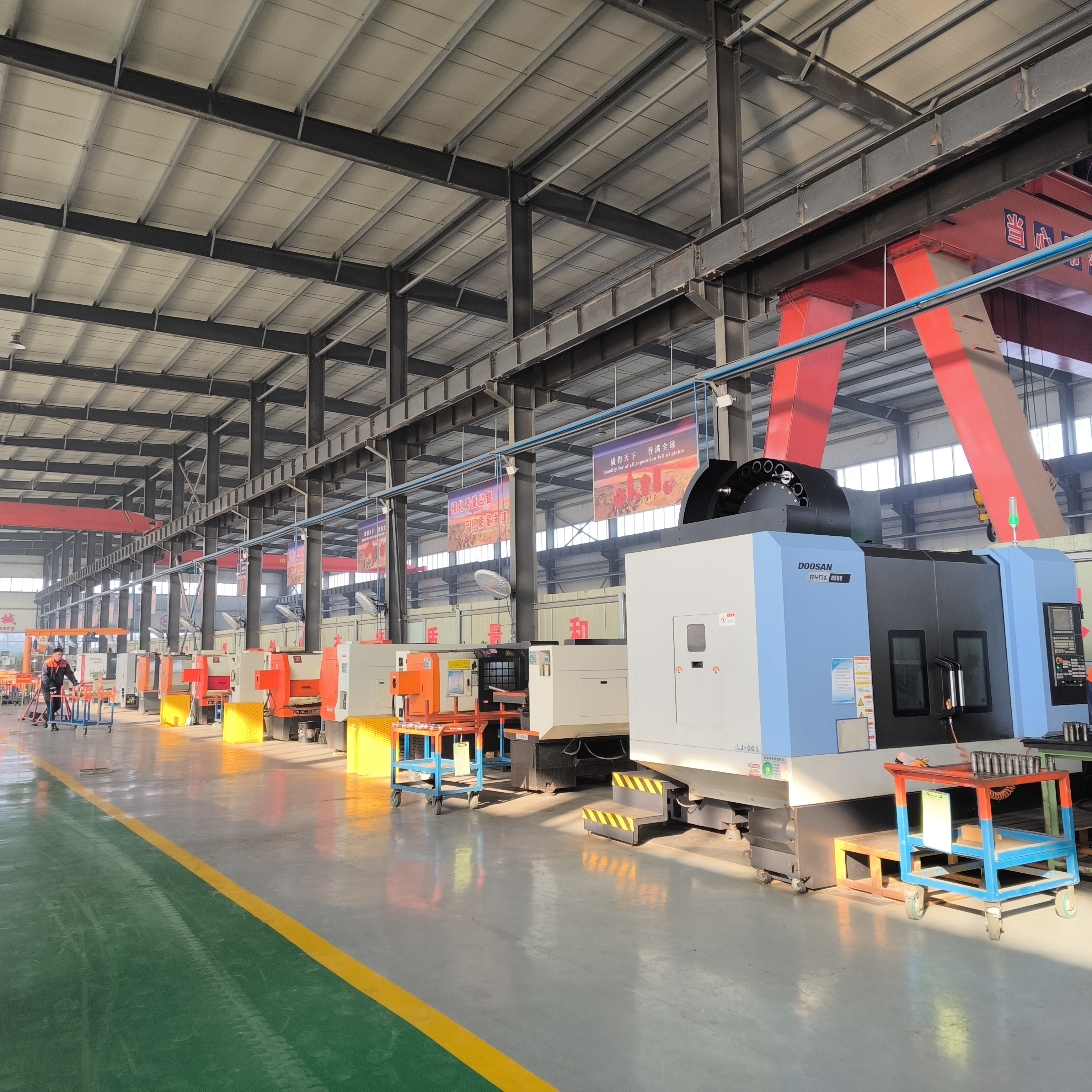

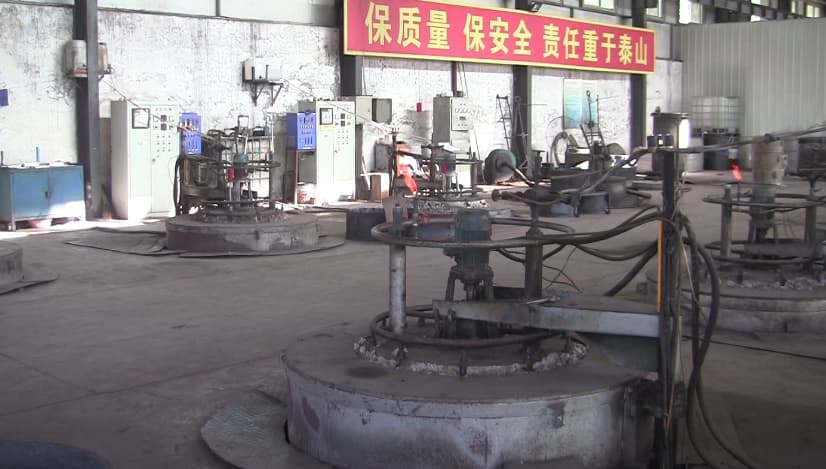

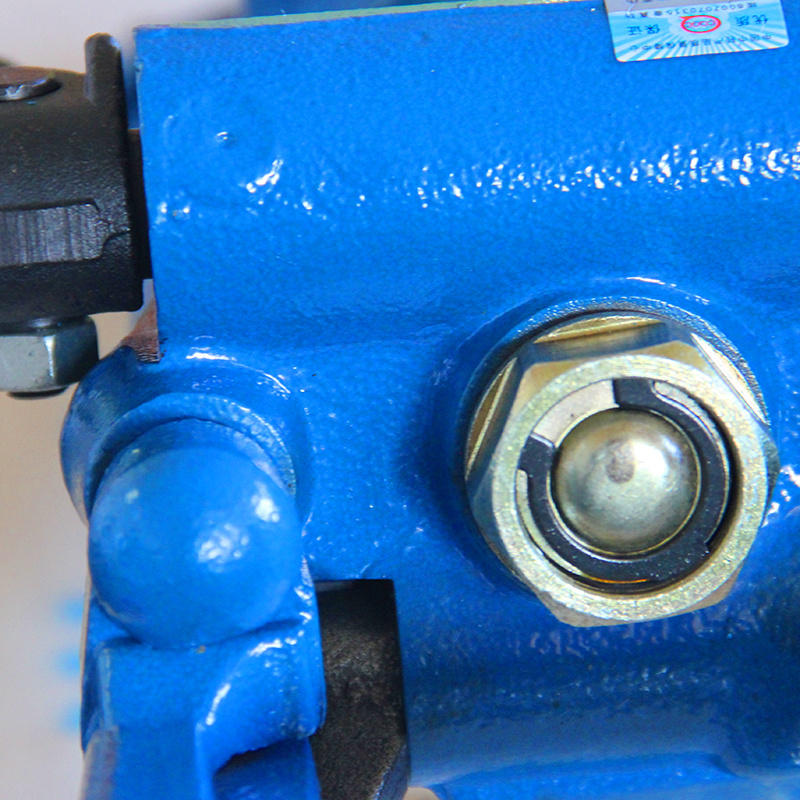

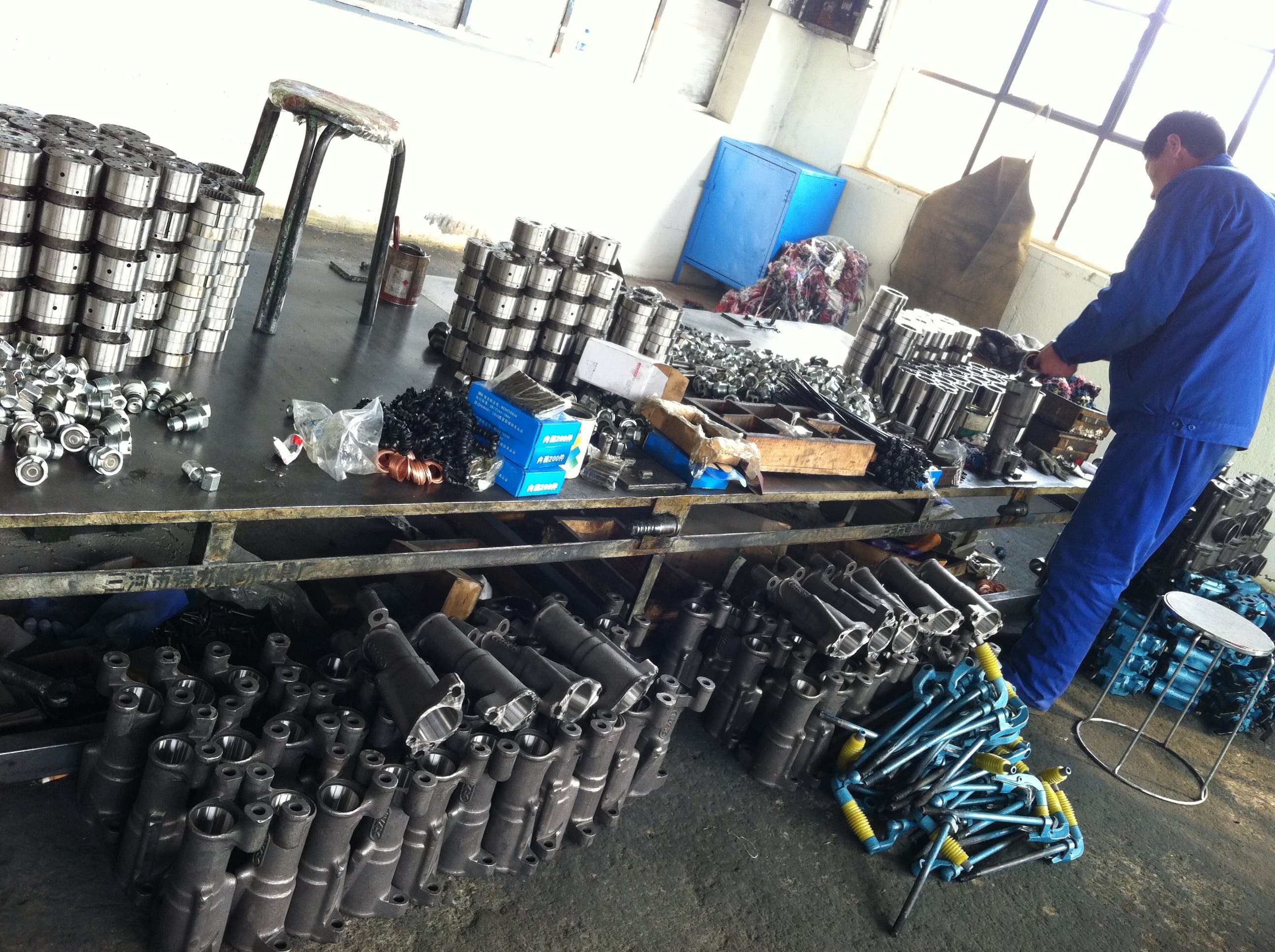

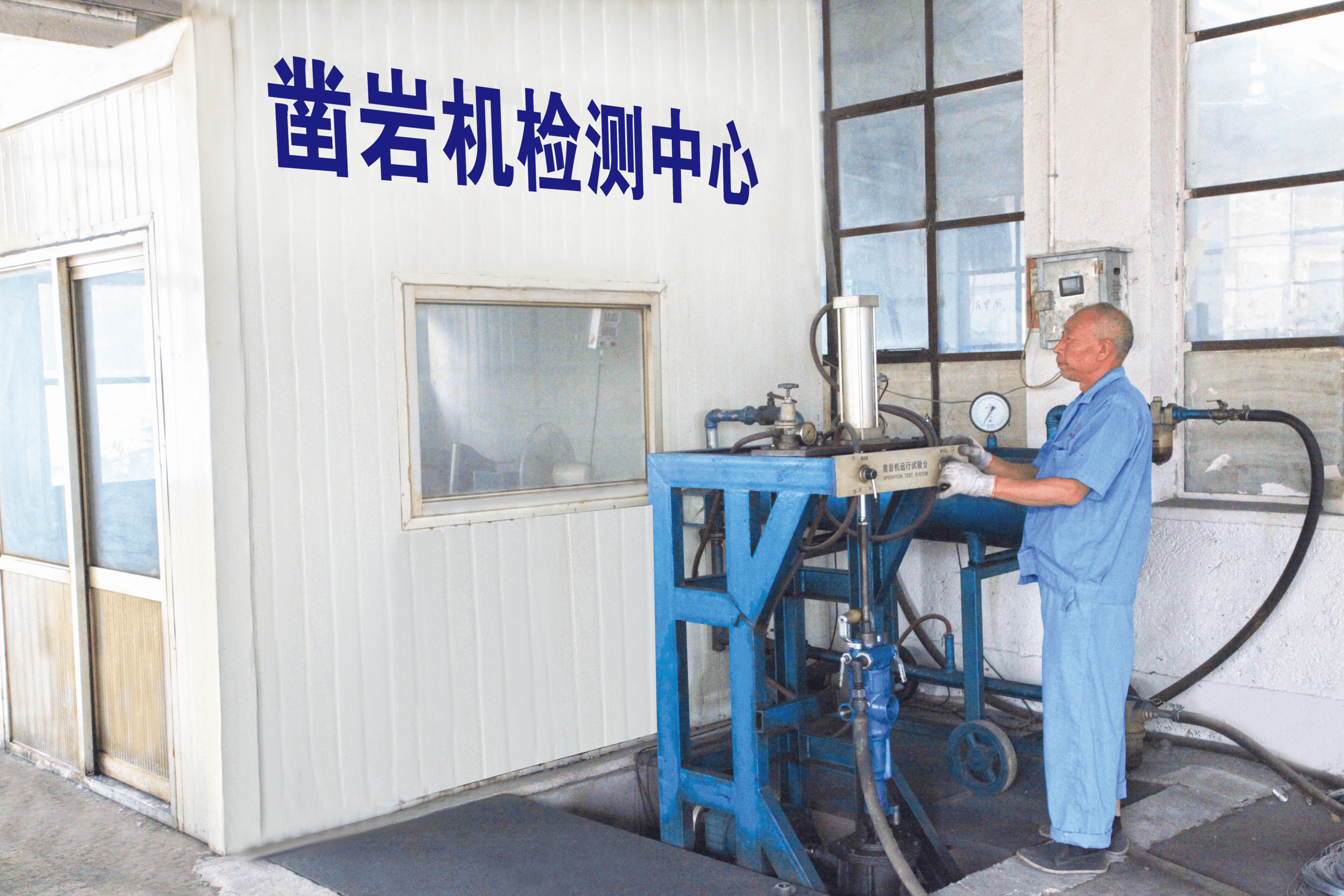

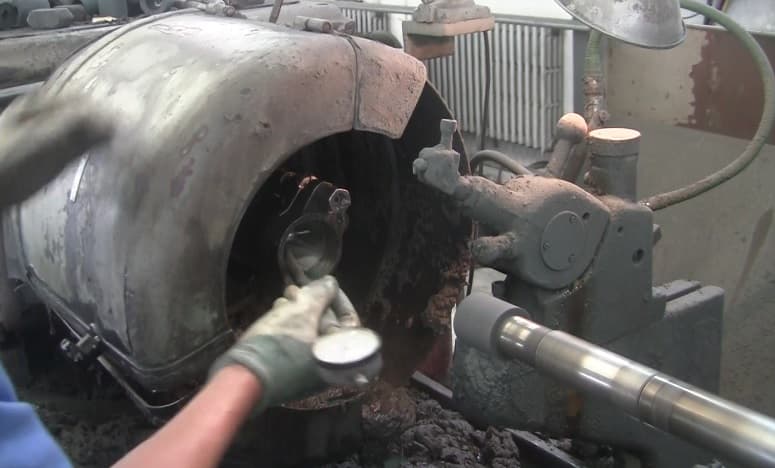

In-house heat treatment furnaces ensure stable, batch-consistent quality. Every unit undergoes two strict operational tests pre-shipment. Robotic machining maintains tight manufacturing tolerances. With 95% of components self-manufactured, strict quality control enables seamless assembly for maximized power transmission.

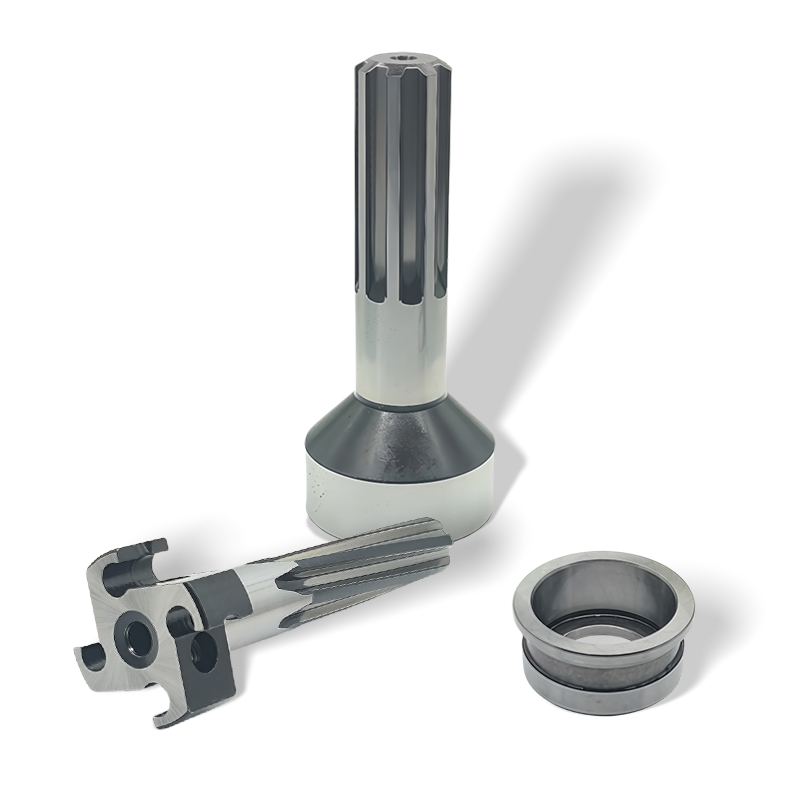

Critical parts undergo normalization heat treatment. This optimizes grain structure for enhanced machining adaptability and long-term durability.

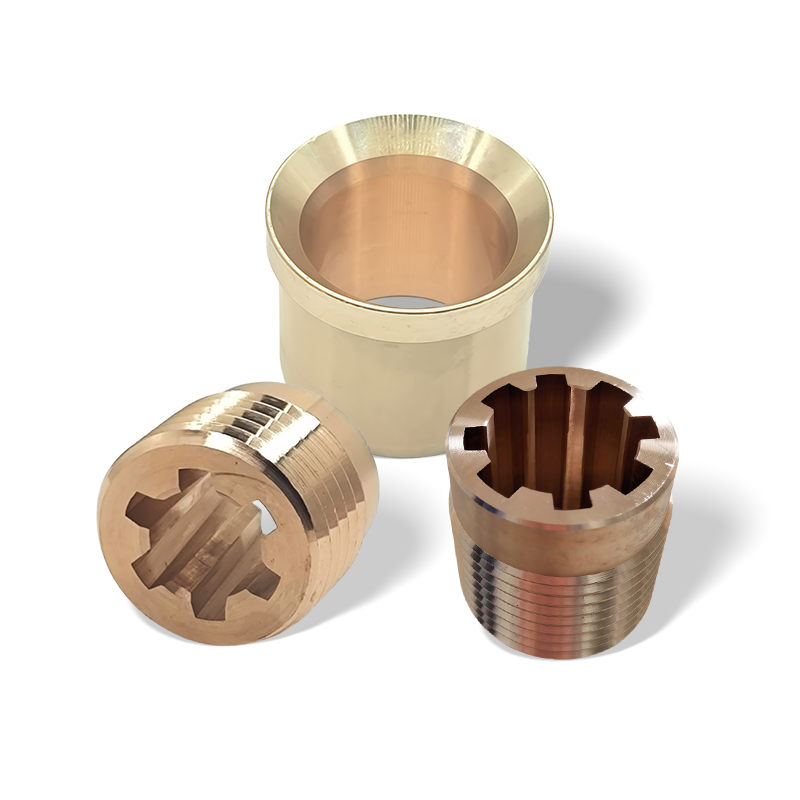

Consumables last significantly longer. Copper core components provide efficient heat dissipation, enabling 2,000-3,000-meter drilling without replacements.

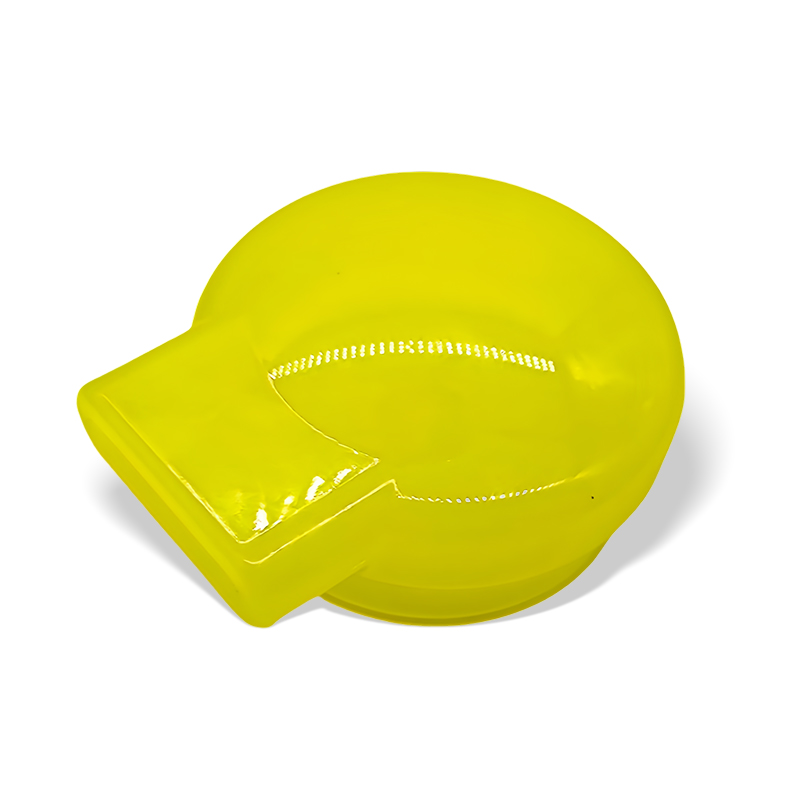

The upgraded muffler design decreases operational noise levels, significantly improving worksite conditions and operator compliance.

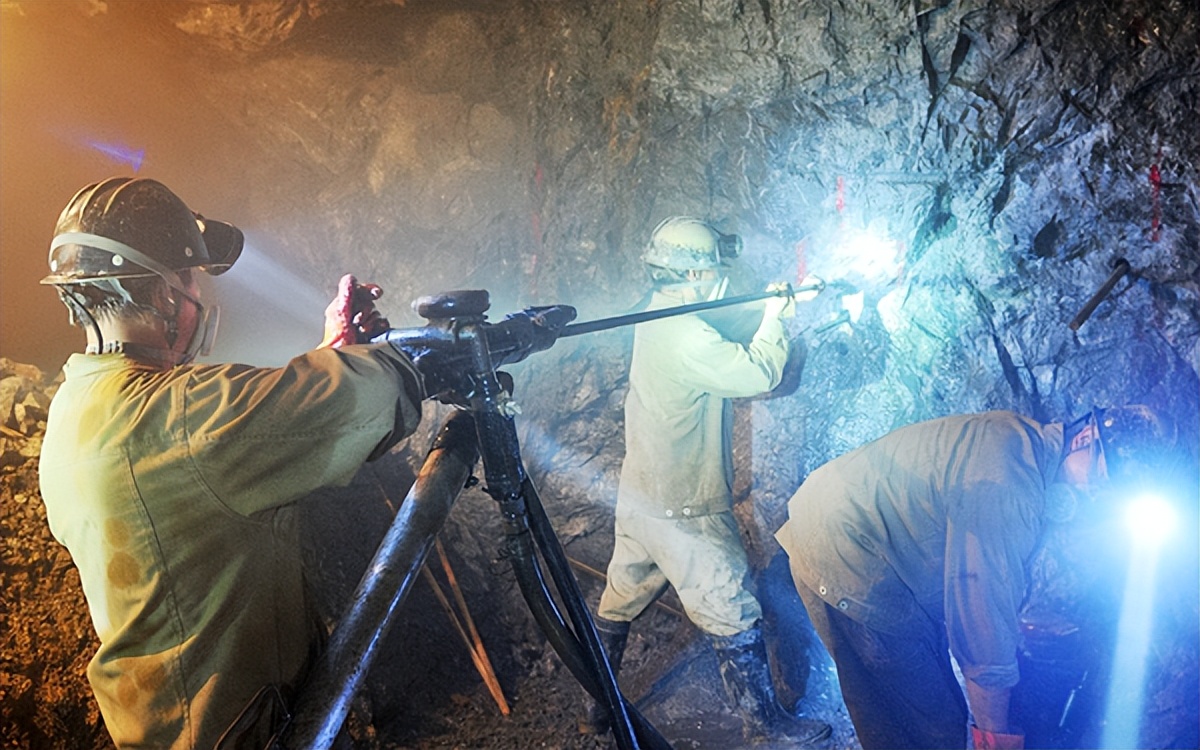

Safe to use, fully pneumatic and can be deployed in closed environments without any risk of sparks.

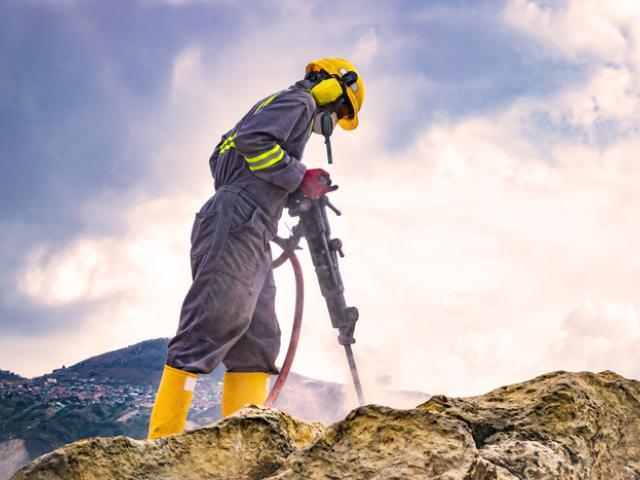

Breaks rock and ore in excavation and tunnel construction with high-impact efficiency.

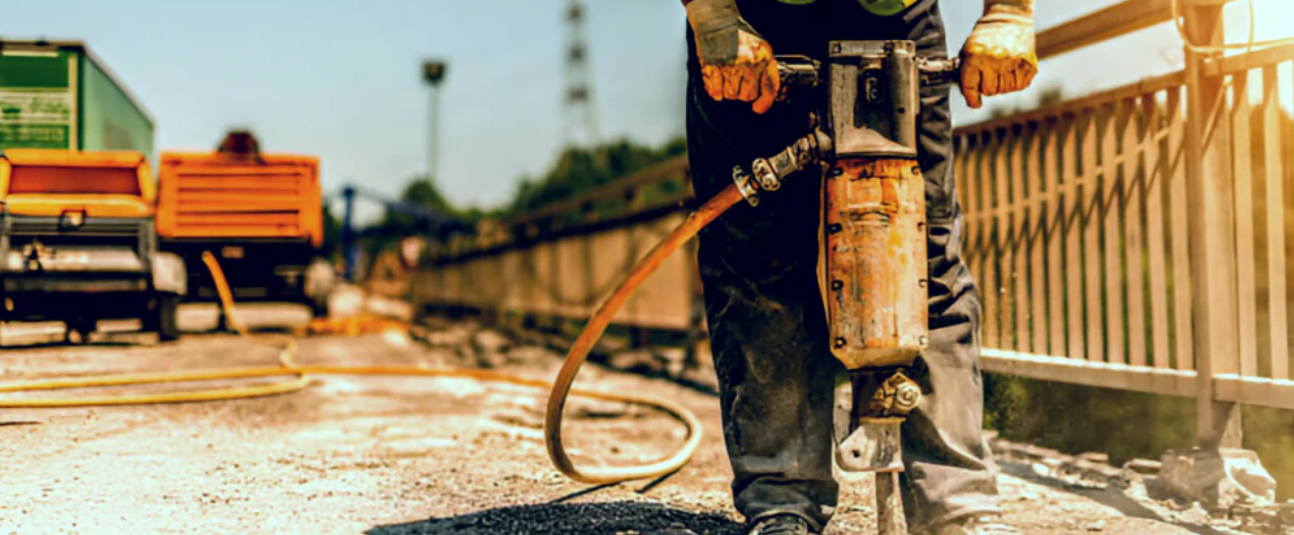

Demolishes concrete structures and breaks up road surfaces for maintenance and rebuilding.

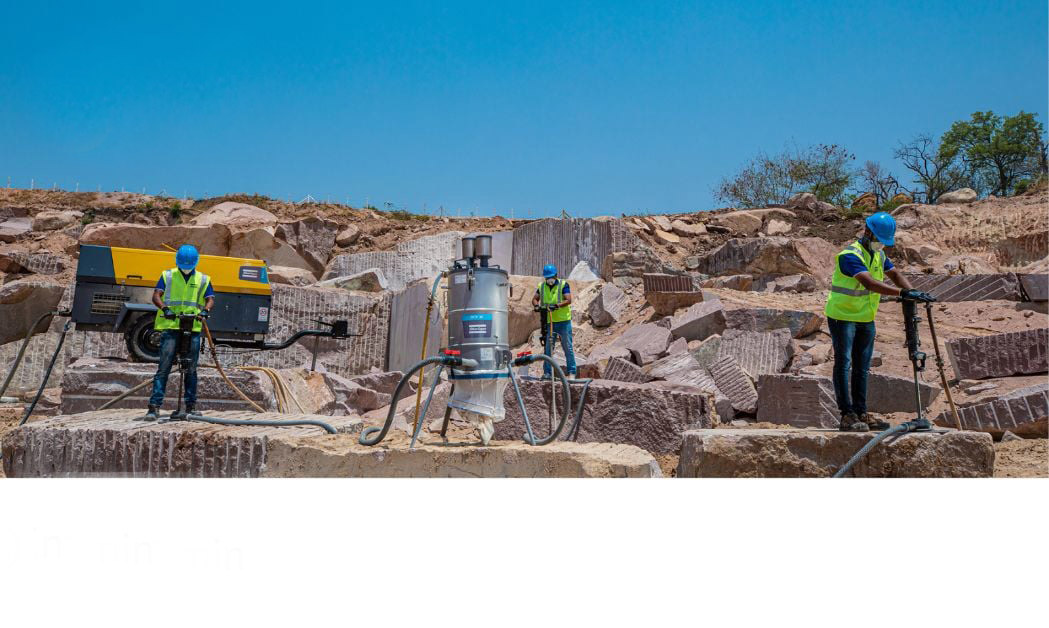

Fragments large stones into manageable sizes for aggregate extraction and processing.

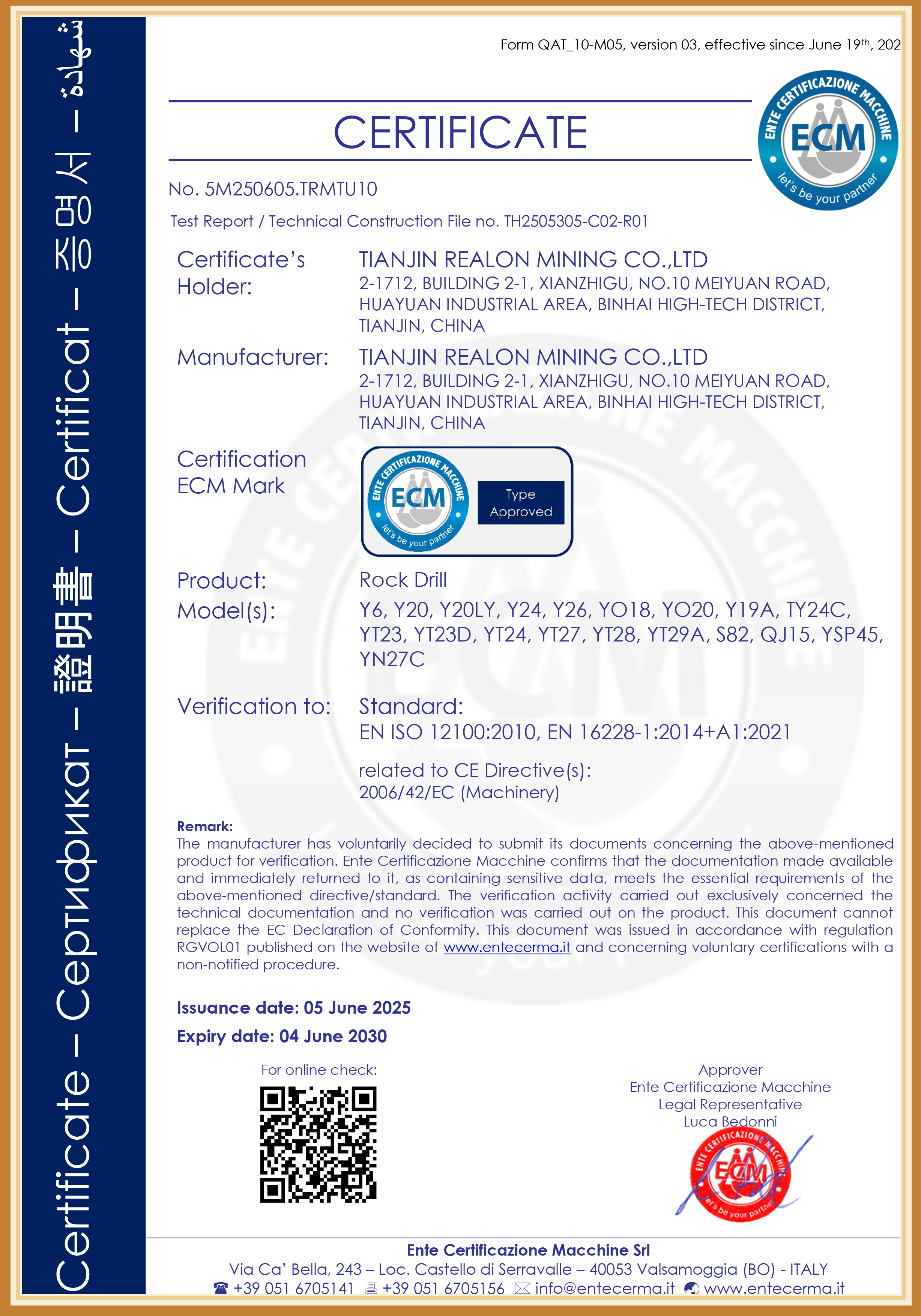

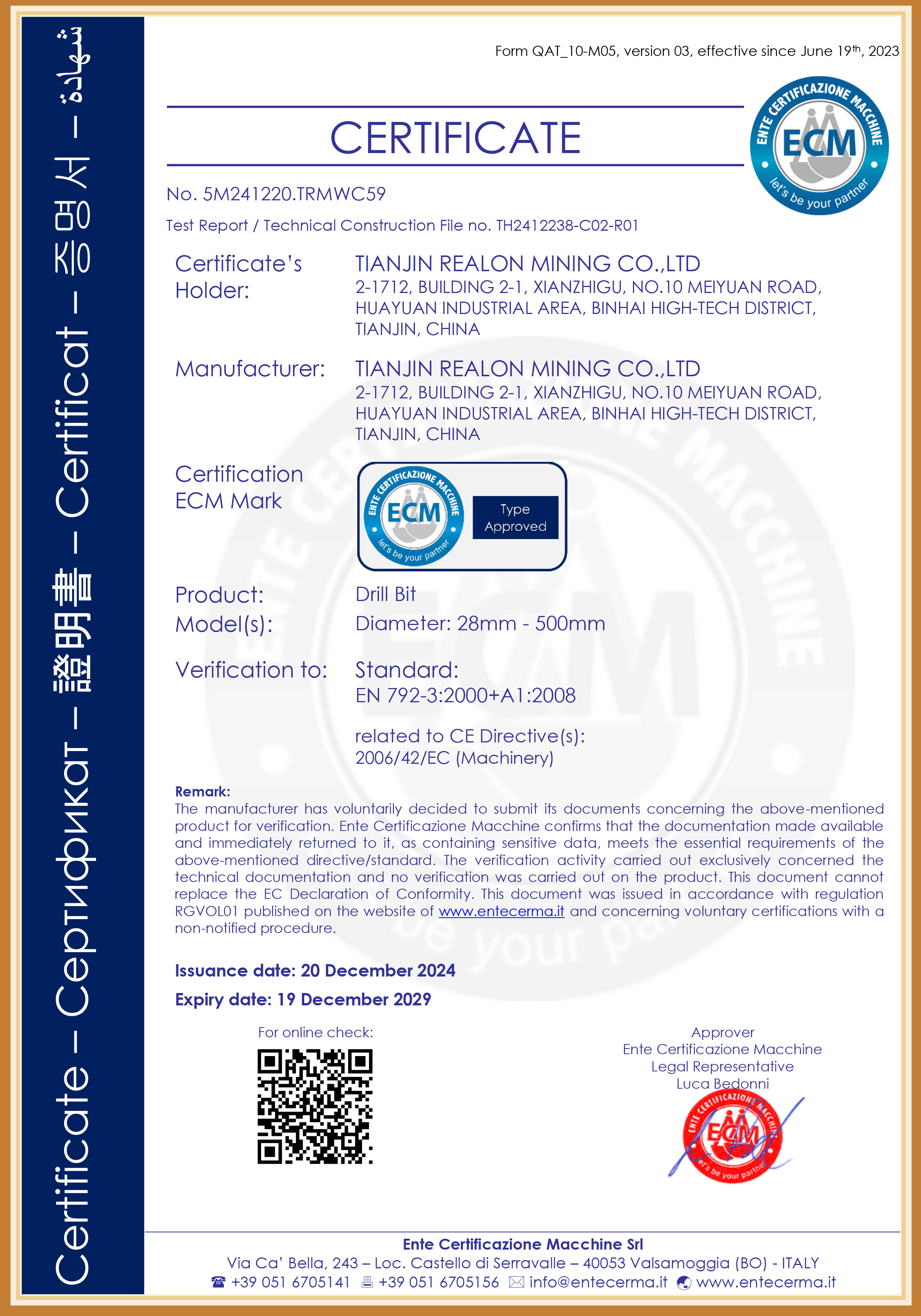

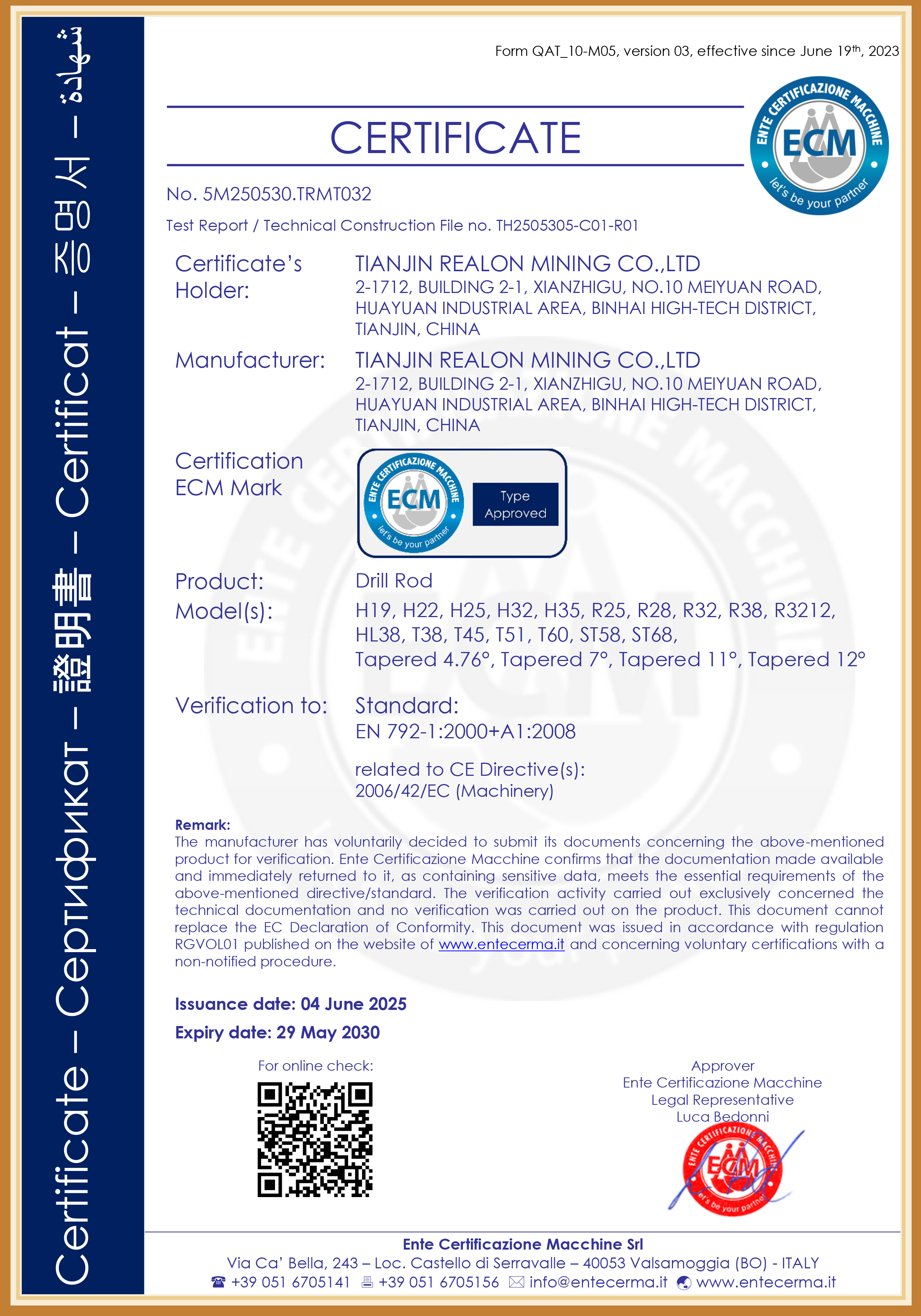

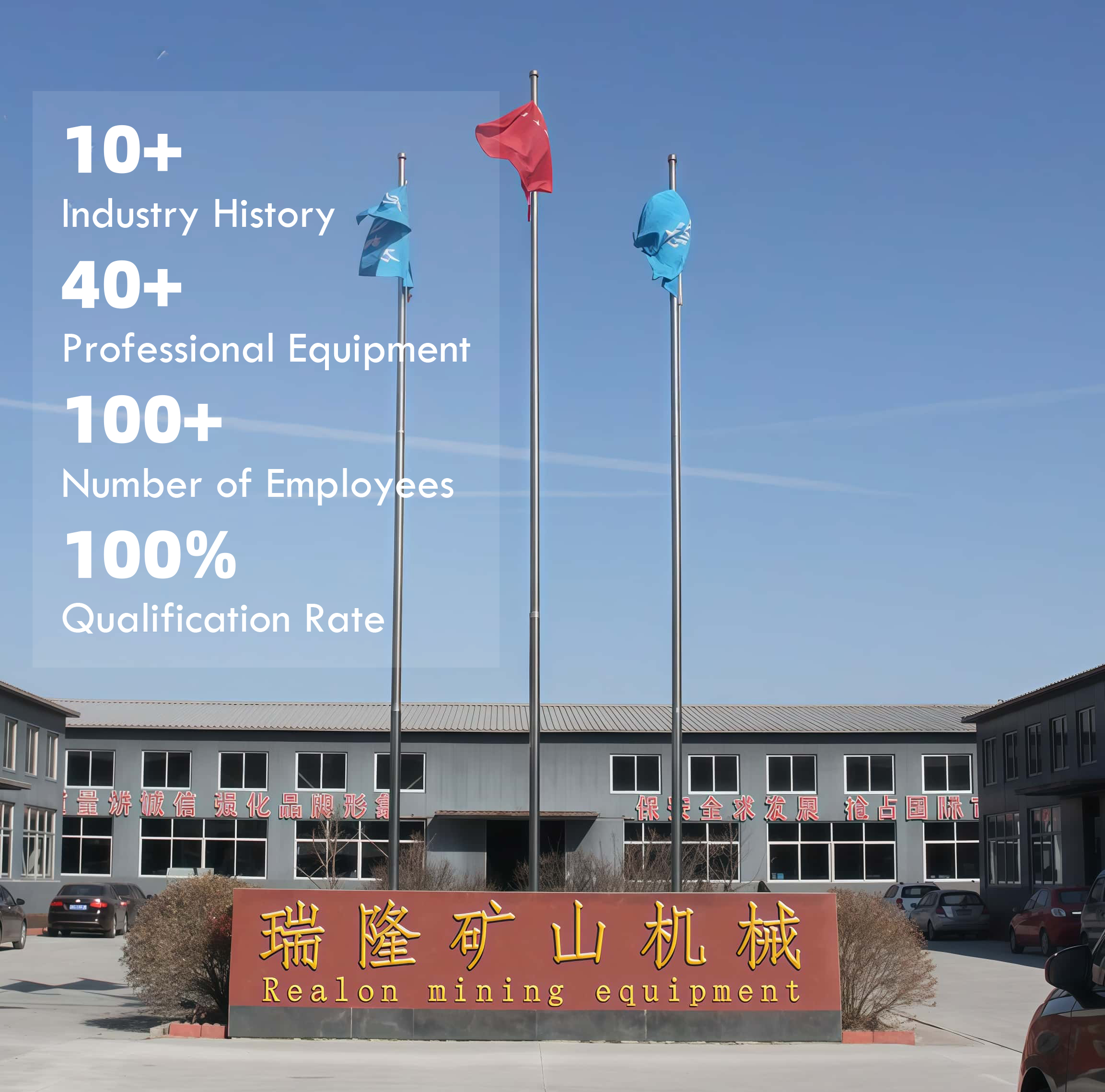

With 20+ years of industry expertise, our team manufactures and exports high-performance, CE-certified mining equipment including pneumatic rock drills, drill rods, drill bits, pneumatic hammers, PDC bits, DTH hammers, DTH bits, mining lamps, and related accessories.
Serving the mining, quarrying, and construction sectors across South America, Europe, Southeast Asia, and Africa with over $50M+ in global sales, we provide stable pricing structures, rigorous quality control checkpoints, and responsive technical assistance.
