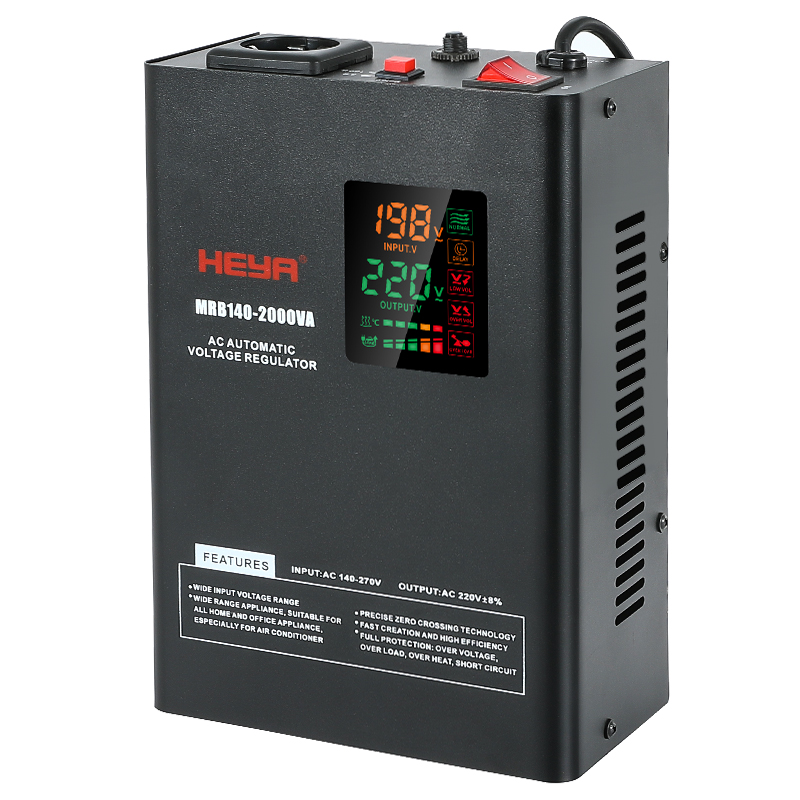

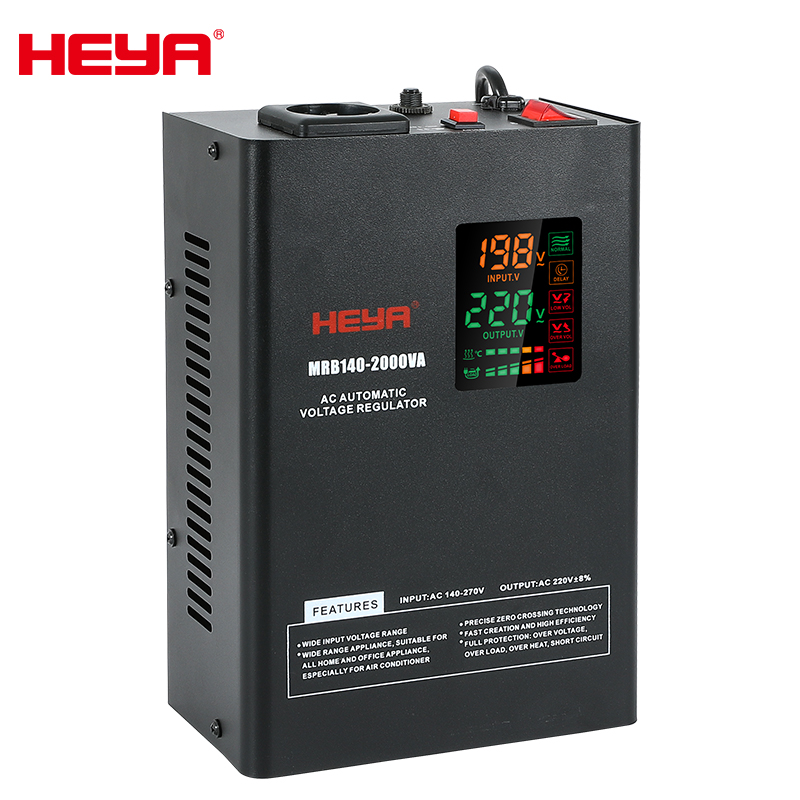

Home 1KVA AC Digital Single Phase AVR Electric Wall Hanging 220V 80/100-270V Automatic Voltage RegulatorsStabilizers 800W 1000W

Product Description

Parameters
Technology Relay type & Digital CPU Control
Transformer Toroidal Transformer
Input voltage (80-270V, 100-270V, 140-260V) / (45-280V, 60-280V, 90-280V)
Output voltage 220V±8%
Frequency 50-60Hz
Phase Single-Phase

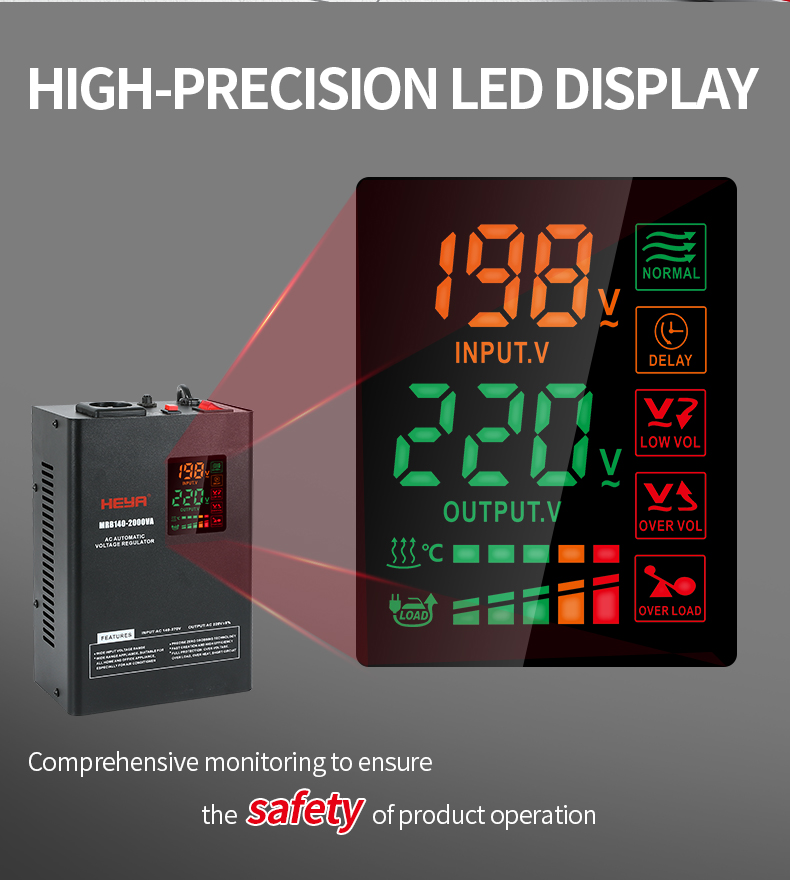

Display Full information graphic led display

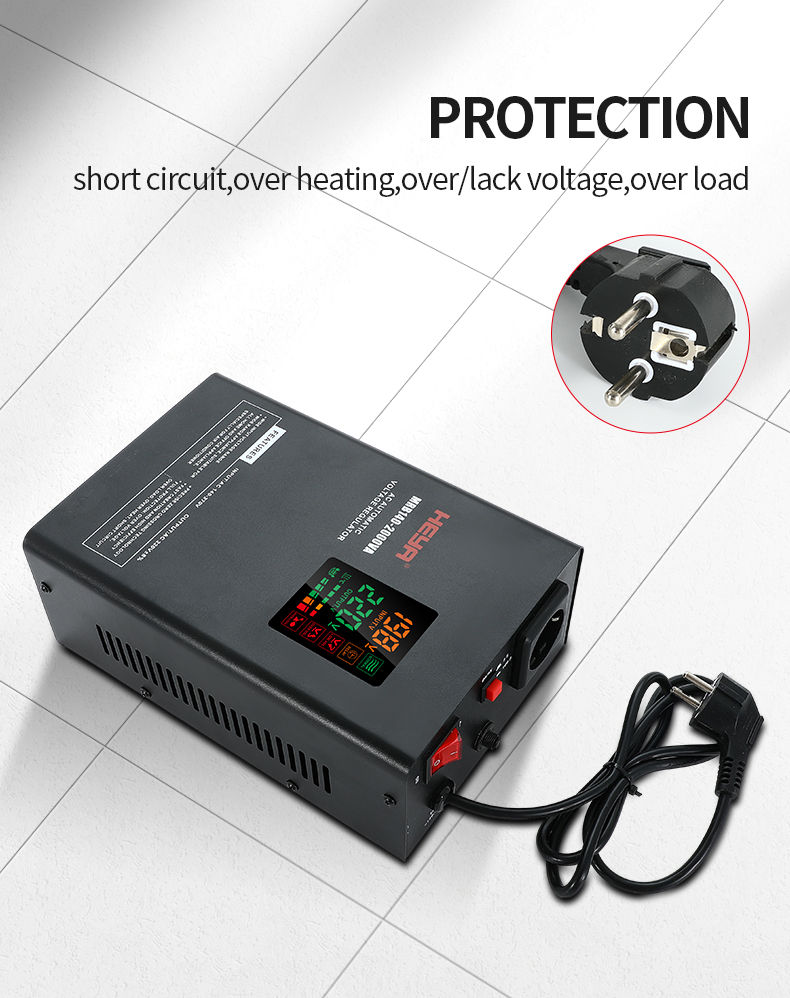

Protection Over voltage output: 252V
Low voltage output: Options
Over Temperature: 110℃
Short Circuit: Yes
Overload: Yes

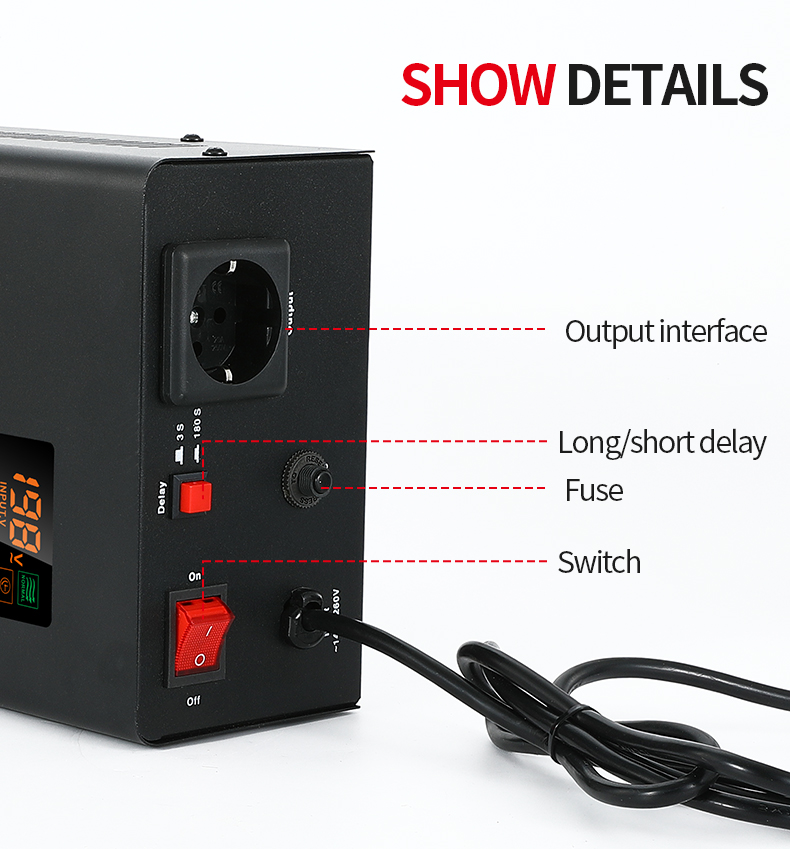

Delaying 3S/180S
Cooling System Vents/Fan (Automatic Start up at 60°C)
Connection Type-IN 0.5~3KVA (Power cord with plug), 5~12KVA (Input terminal block)
Connection Type-OUT 0.5-3KVA (Output socket), 5~12KVA (Output terminal block)
Adjust time <1sec. (against 10% input voltage deviation)
Ambient temperature -10~+45℃
Relative humidity <90%
Wave form distortion No additional wave form distortion
Packing Information
Model Power Output (VA) Qty/Carton (pcs) Product Size (MM)/PC Carton Size (MM)/CTN
MRB-500 500VA 6 155*230*75 540*283*213
MRB-1000 1000VA 6 155*230*75 540*283*213
MRB-2000 2000VA 4 272*183*120 395*325*325
MRB-3000 3000VA 4 272*183*120 395*325*325
MRB-5000 5000VA 2 300*170*330 430*340*235
MRB-10000 10000VA 1 330*190*360 460*370*255
MRB-12000 12000VA 1 330*190*360 460*370*255
MRB-15000 15000VA 1 335*290*457 355*400*505
MRB-20000 20000VA 1 335*290*457 355*400*505
MRB-30000 30000VA 1 337*400*555 400*465*620
Product Details

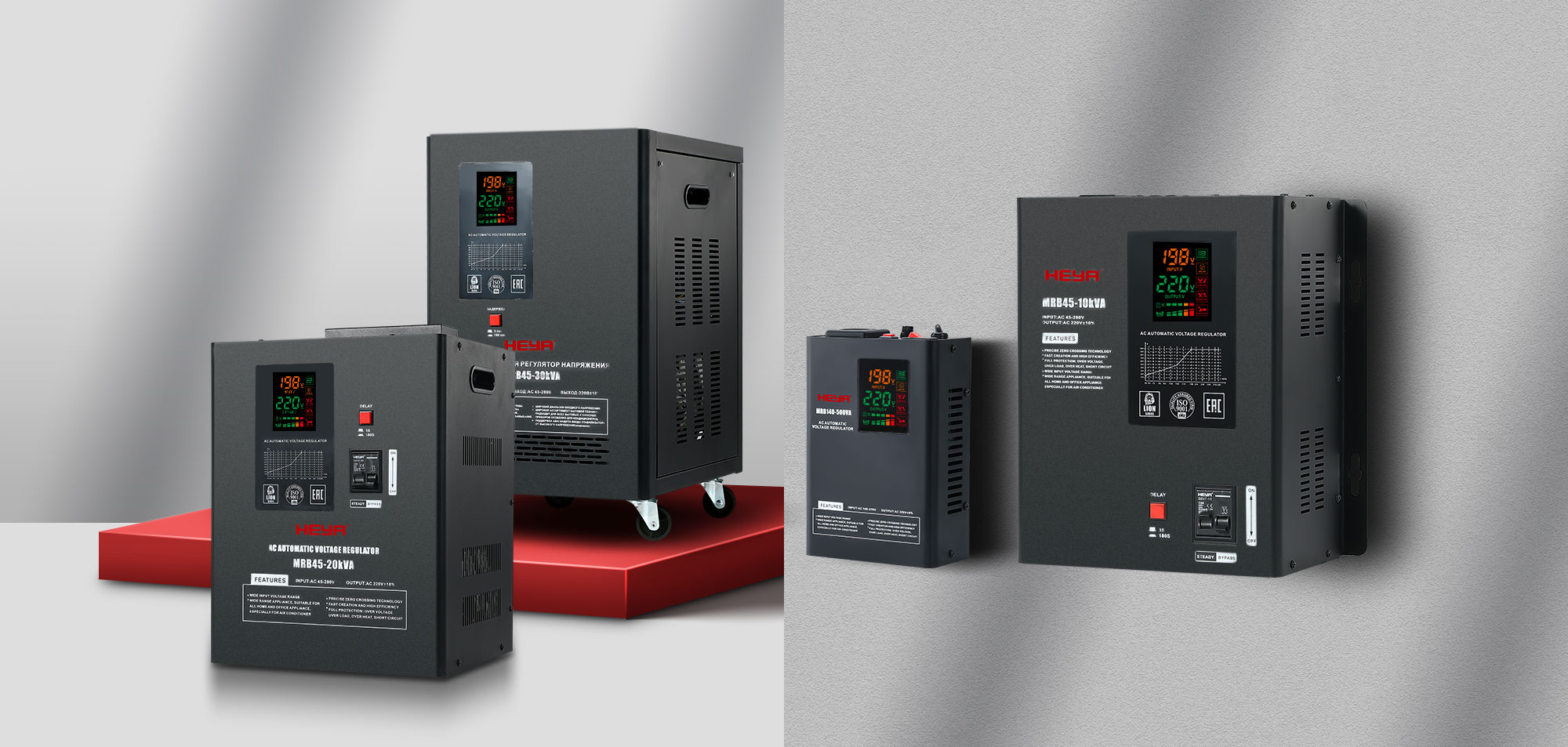

Product Image 1

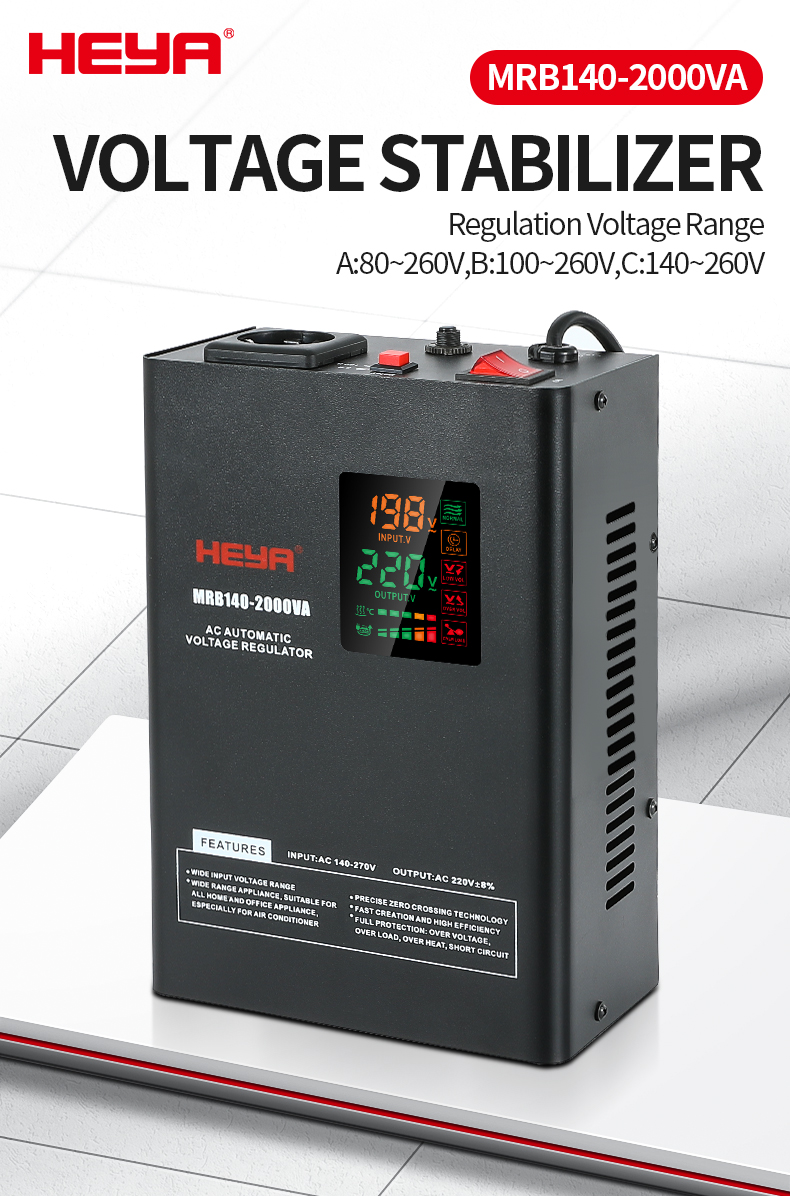

Product Image 2
Product Image 3
Product Image 4
Product Image 5

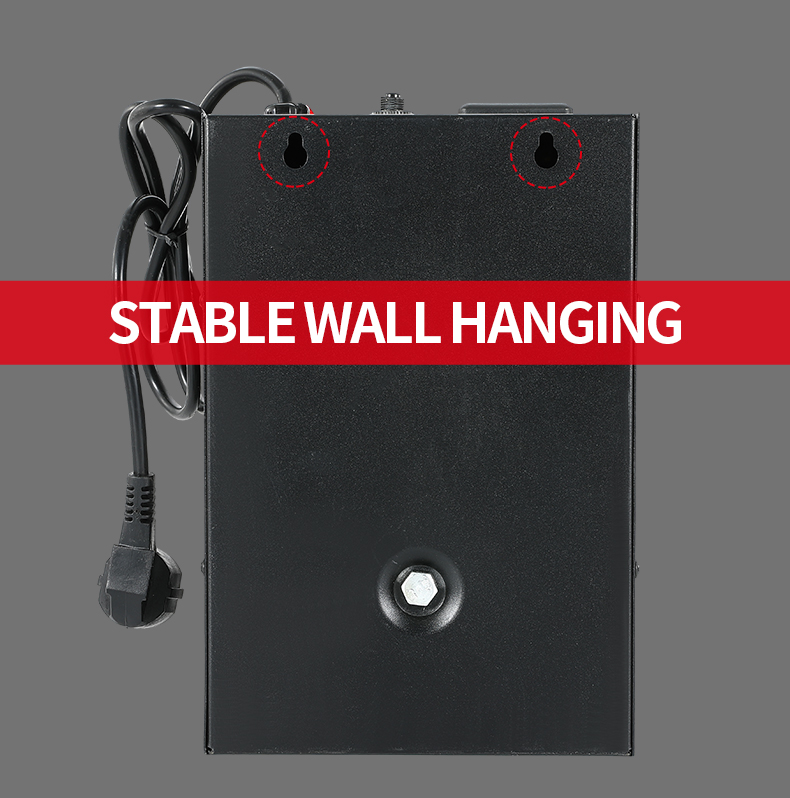

Product Image 6

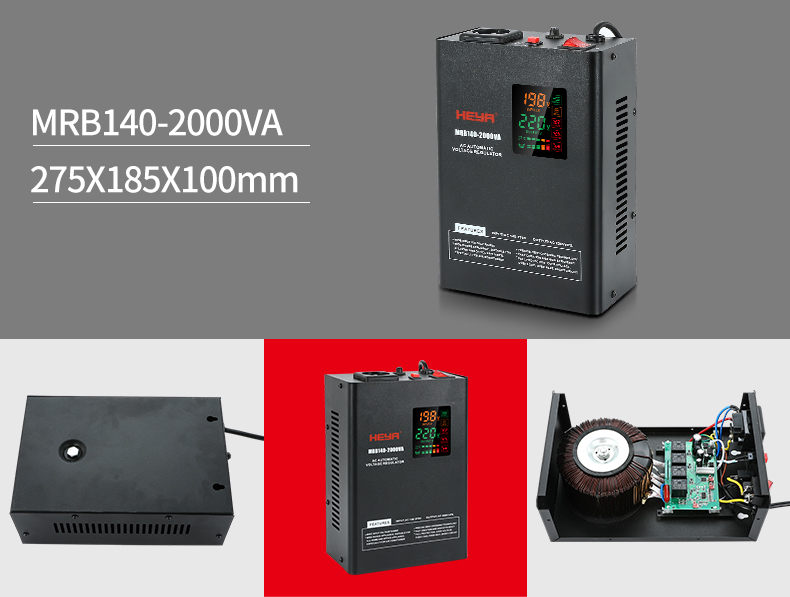

Product Image 7

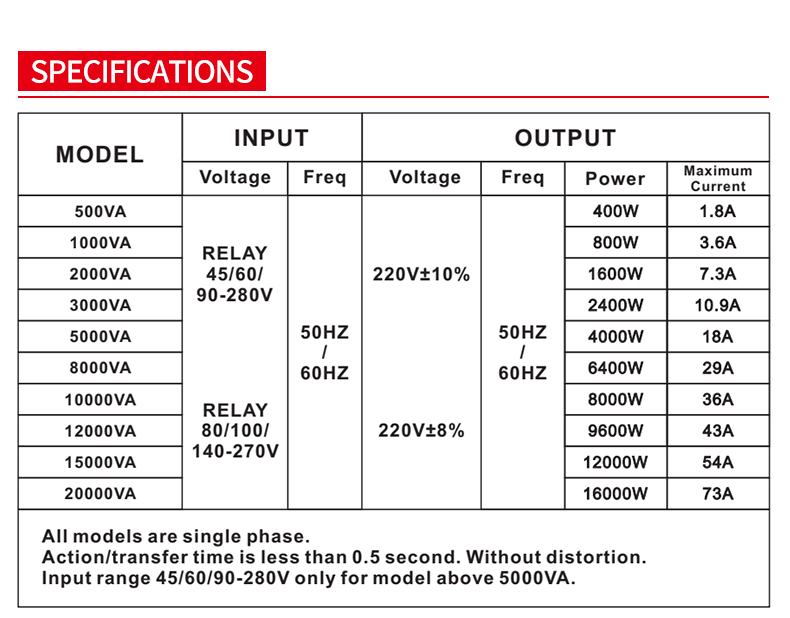

Product Image 8
Production Showcase
Production Process 1

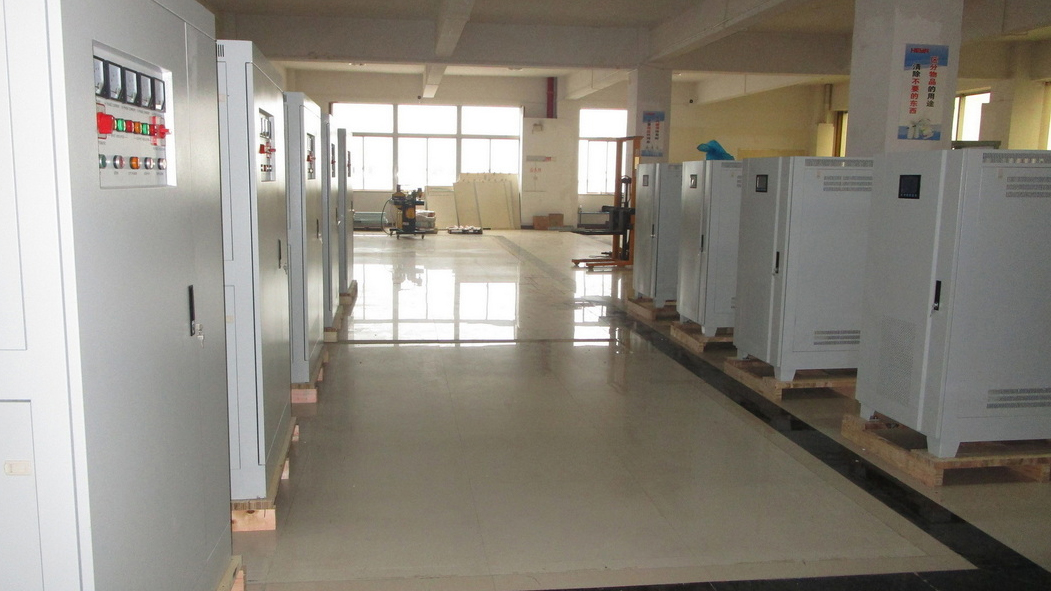

Production Process 2

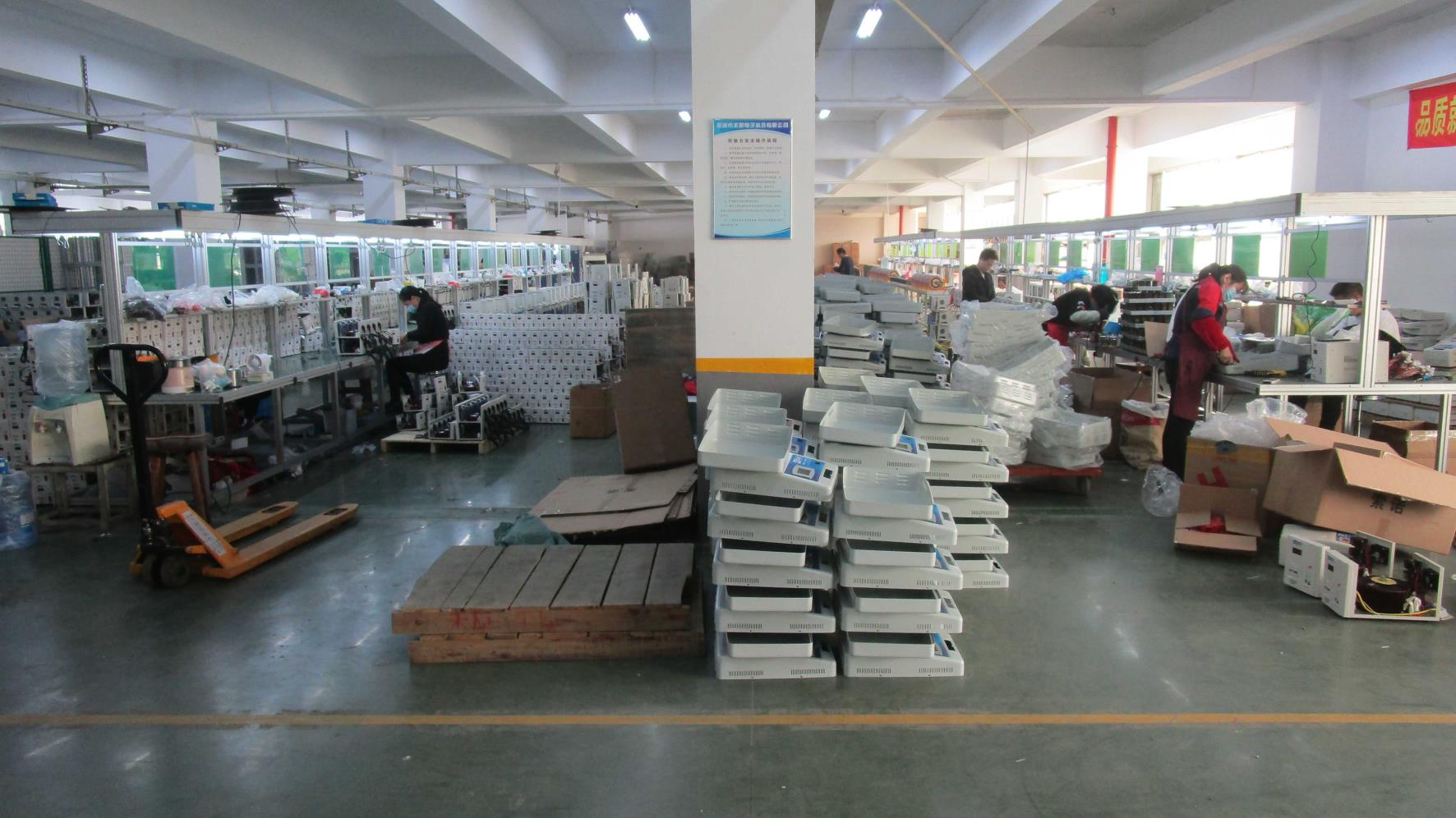

Production Process 3

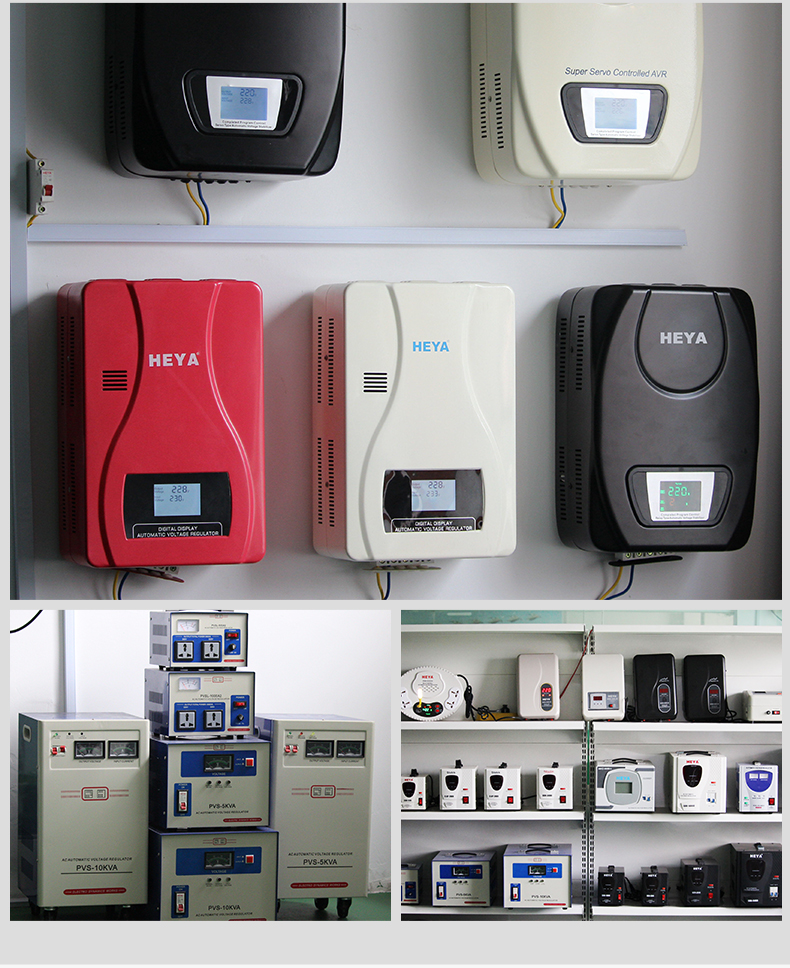

Production Process 4
Production Process 5
Certifications
Certificates
Packing & Shipping
Packing and Shipping details
Frequently Asked Questions
Q1. What is the standard payment term?
We accept TT, 30% deposit and 70% balance against the copy of BL.
Q2. How is the delivery time?
Usually, it will take about 10-25 days for production. For samples, it typically takes 1 week.
Q3. What is the package standard?
For the small capacity, a color box is used as the inner package and a carton as the delivery package. For big capacity, a strong wooden case is used for protection.
Q4. What kind of material is used in the transformer?
For servo type stabilizers, we have two options: 100% copper or copper with aluminum, depending on your requirement. Copper is more durable and carries a higher price. For relay type stabilizers, we use toroidal coils made of aluminum, which offer high efficiency compared to square coils.
Q5. Could you offer Form A or Certificate of Origin (C/O)?
Yes, we can prepare all relevant documentation to apply at the foreign affairs office or other authorized offices.
Q6. Which markets are your products popular in?
Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, and Western Europe.
