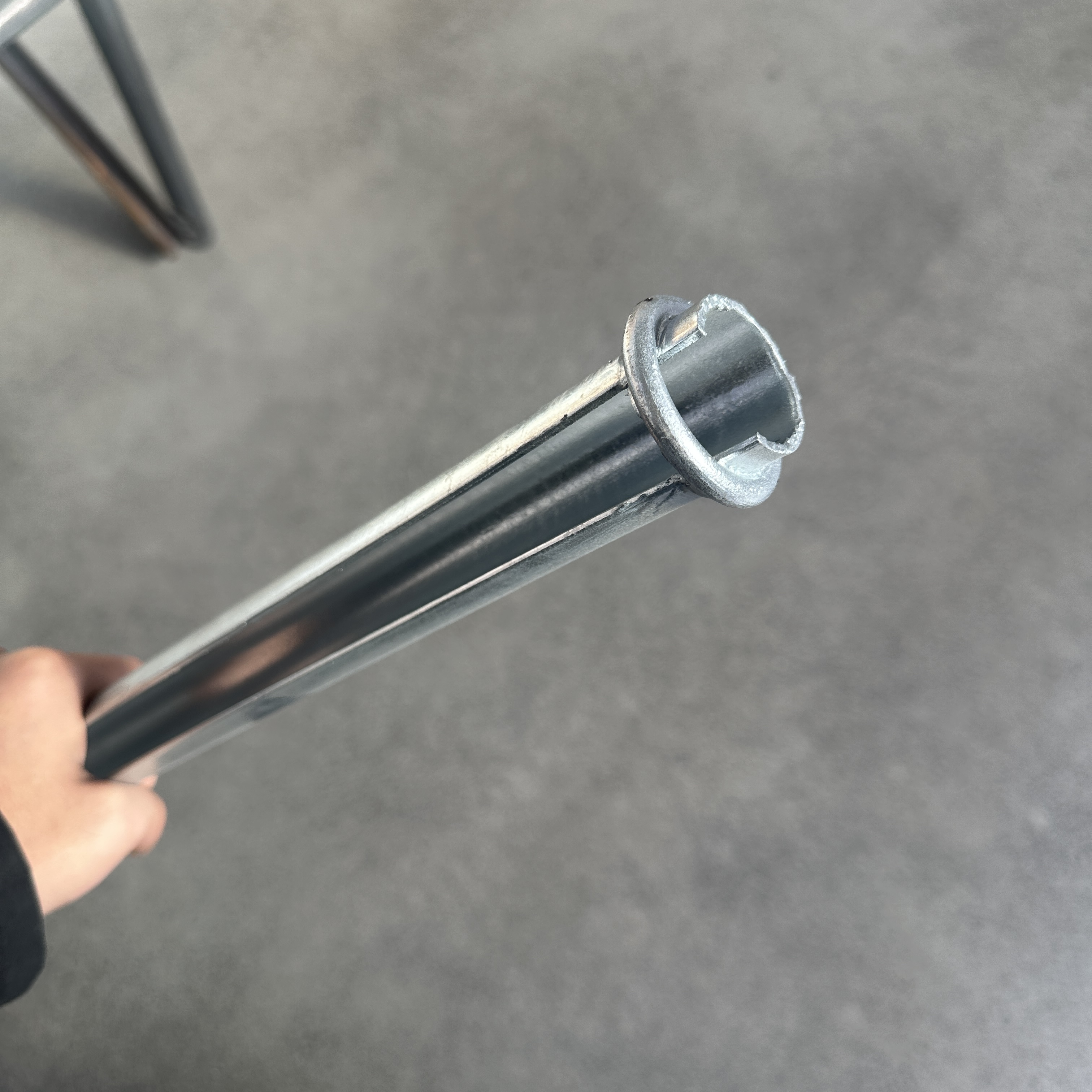

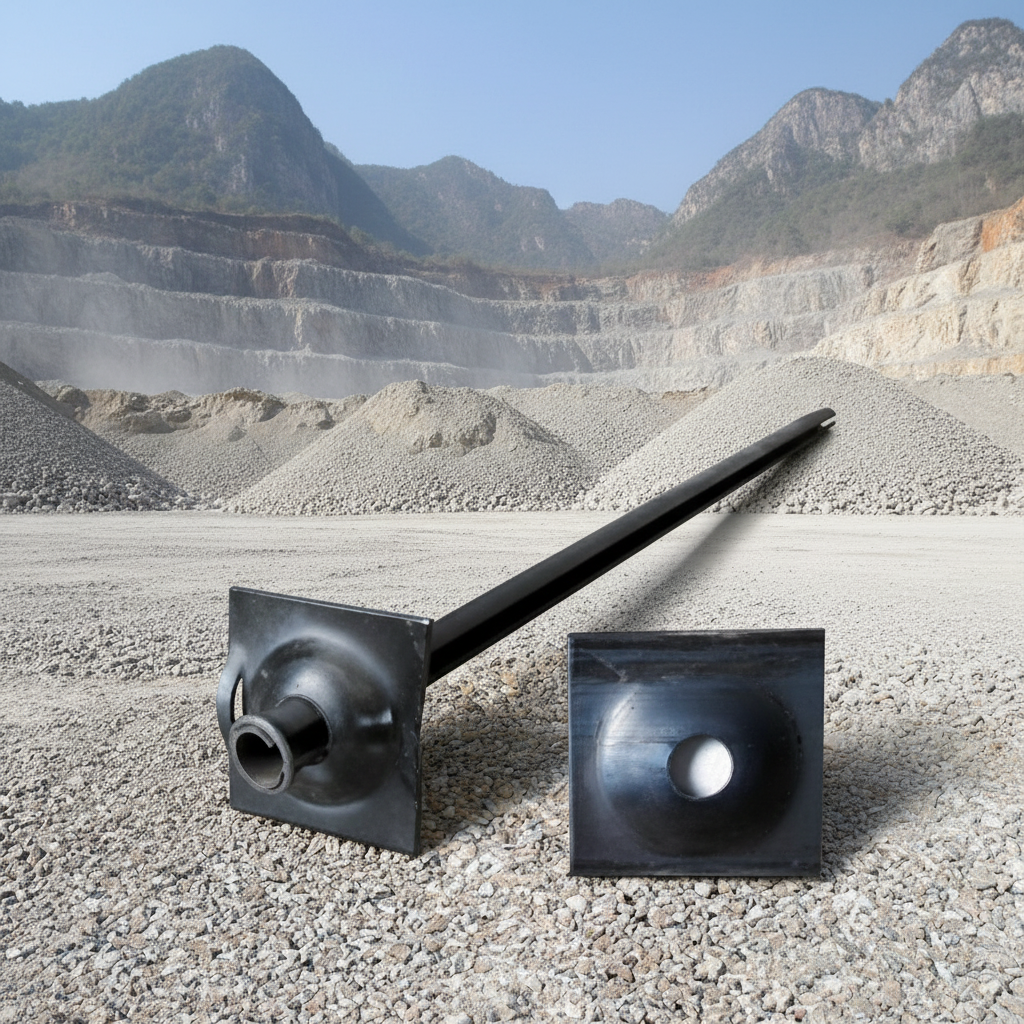

Easy Installation Friction Stabilizer Split Set for Fast Tunneling Support

Product Description

Specification

Item	Value
Color	Brown, silver
Finish	Bright(Uncoated), Longer Life TiCN
System of Measurement	Metric
Material	Q235
Diameter	5/16IN, 12mm
Capacity	Strong
Standard	GB
Product name	Split set rock bolt

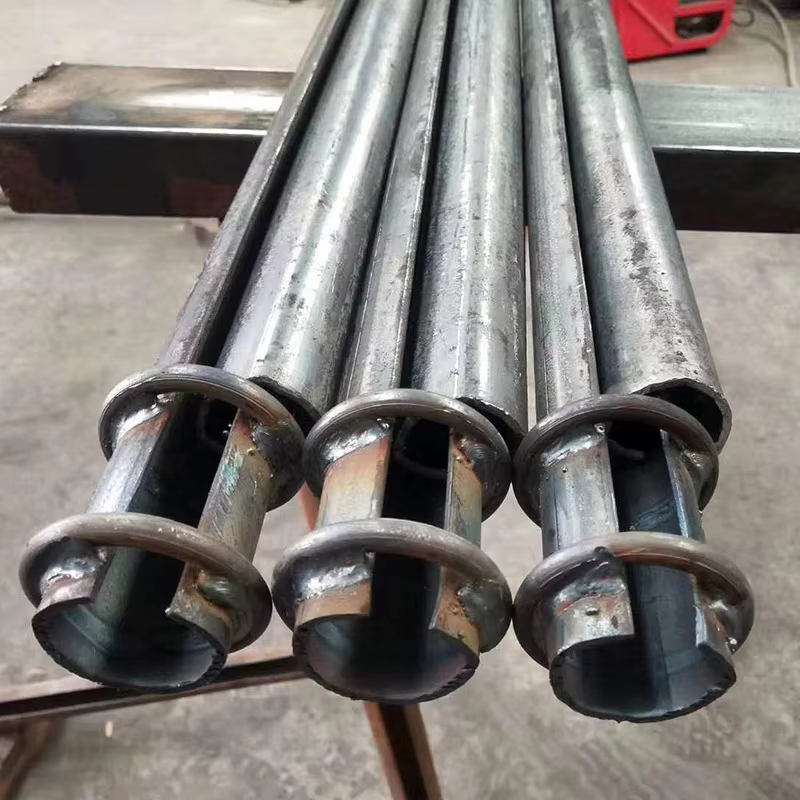

Ring	Spot welding and full welding
Thickness	1.2mm, 1.5mm, 1.7mm, 1.8mm, 2.0mm, 2.2mm, 2.3mm, 2.5mm, 2.75mm, 3.5mm
Outside diameter	30mm, 33mm, 40mm, 42mm, 43mm, 46mm, etc
Length	1.2m, 1.5m, 1.8m, 2.0m, 2.5m, etc
Application	Coal mining, roadway support, etc
Advantage	Has high alkali resistance and tensile strength

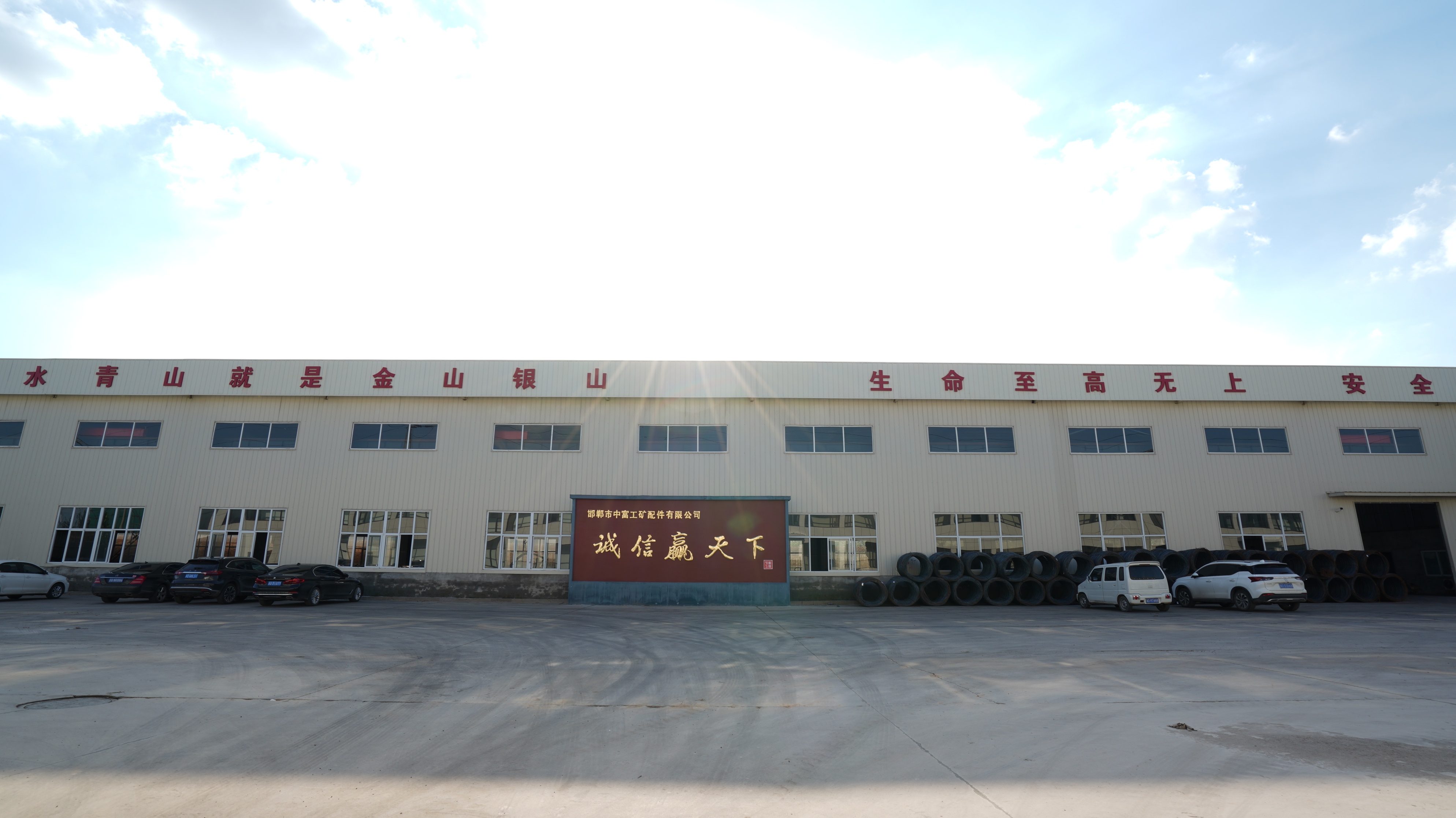

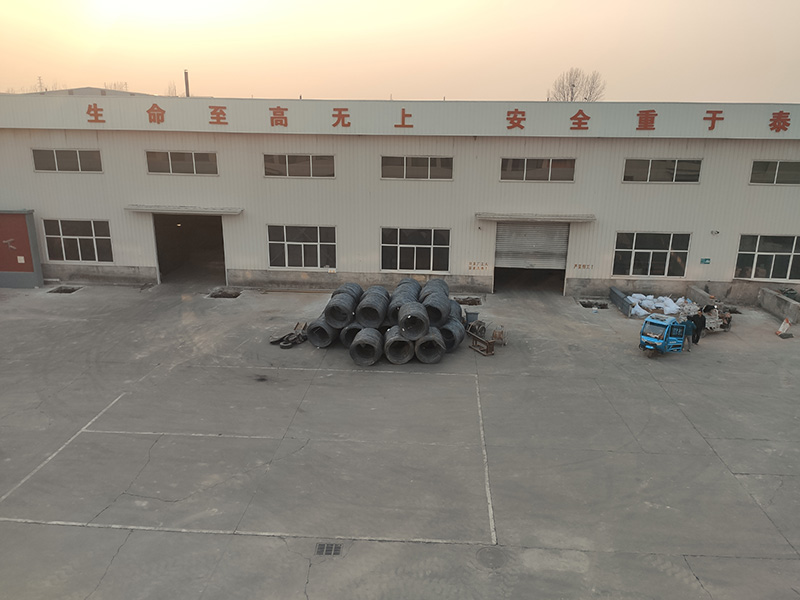

About Us

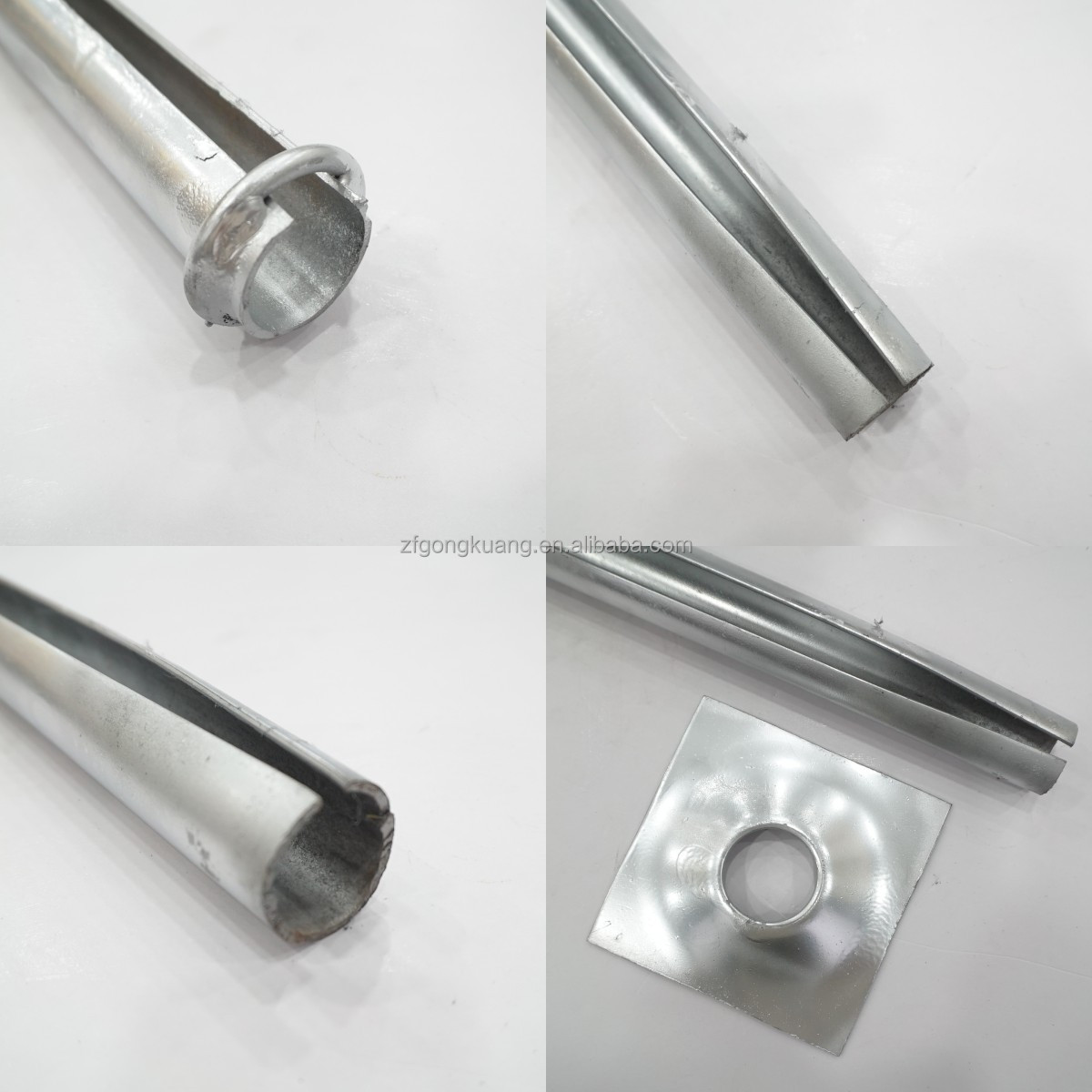

Product Usage

Installation Steps

Determine the anchor bolt hole position according to design requirements and drill holes using drilling tools.
Blow out the rock powder inside the hole with compressed air.
Install an anchor plate on the rod and use an impact drill to drive the anchor rod into the hole.

Calculation Method for Drilling Hole Diameter

In rock layers:
Borehole diameter = (0.9-0.95) x anchor rod diameter
Anchor rod drilling depth: Anchor rod length + 100mm, drilling deviation rate < 1%

In coal seams:
Borehole diameter = (0.9-1.00) x anchor rod diameter
Anchor rod drilling depth: Anchor rod length + 200mm, drilling deviation rate < 1.5%

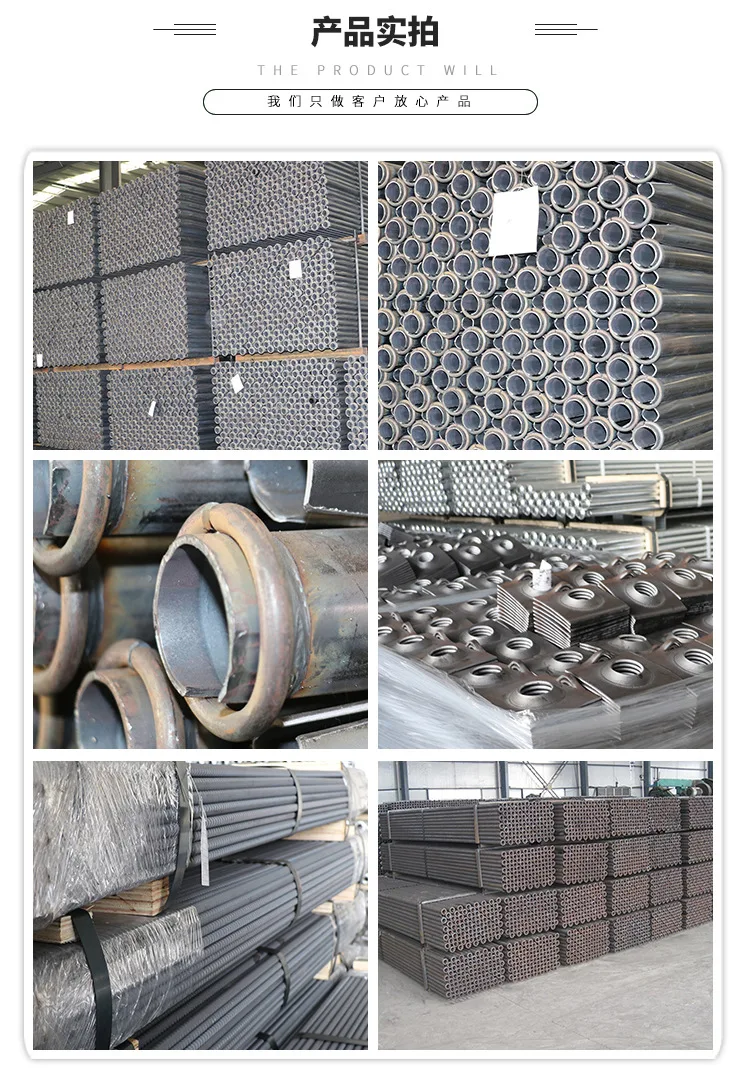

Product Application

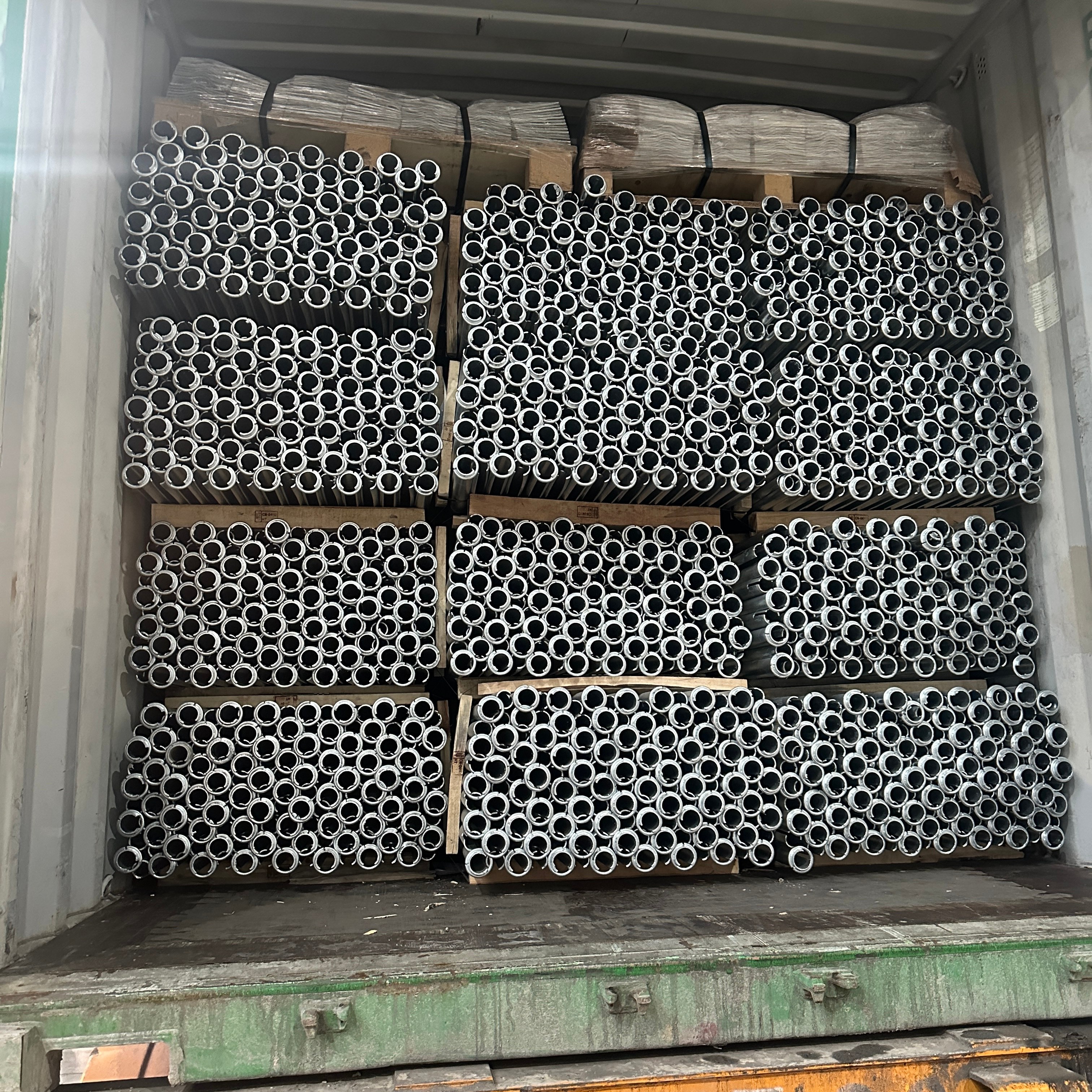

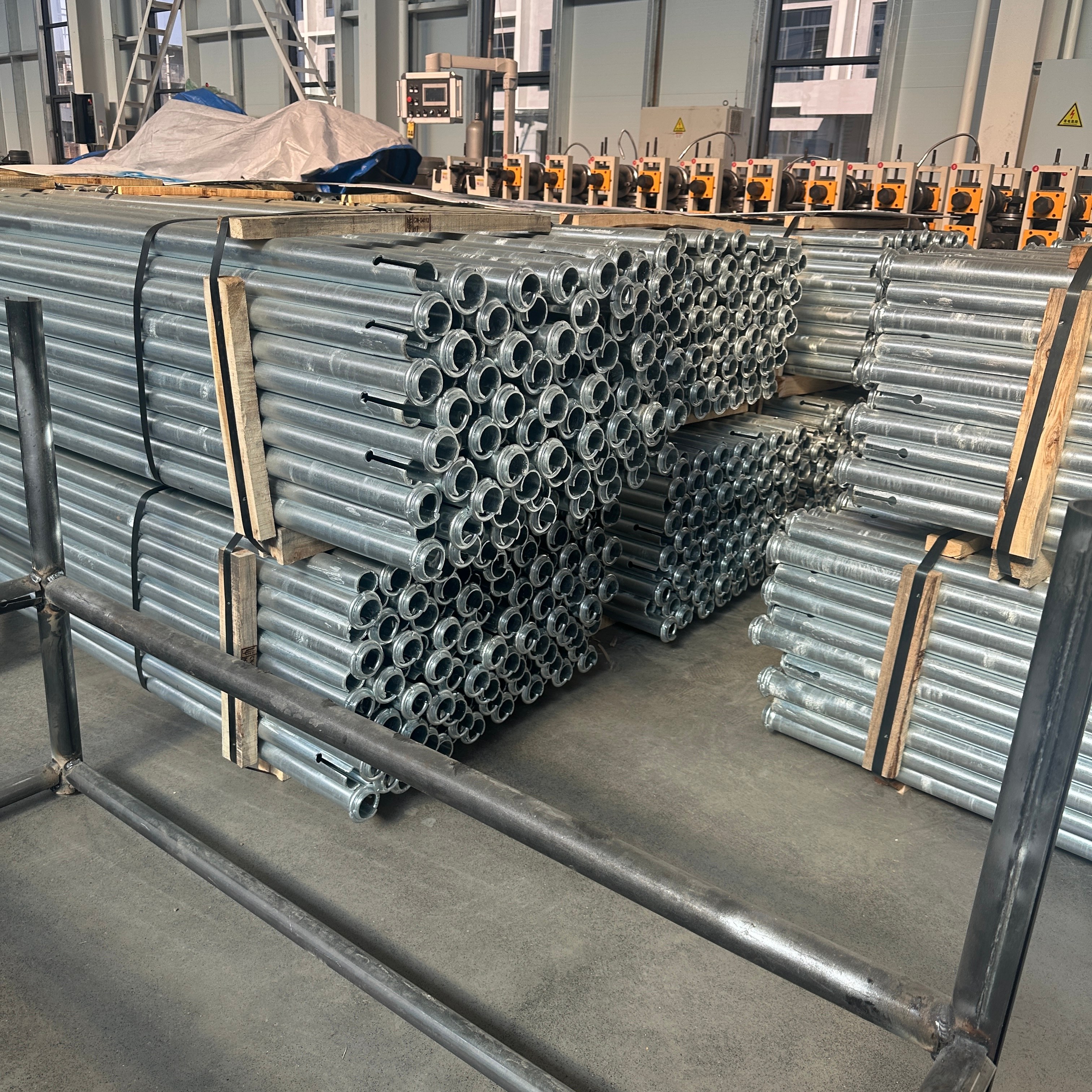

Packaging & Delivery

Details

Packing: 25kg/bag with pallet

Delivery time: 5-30 days (according to the order details)

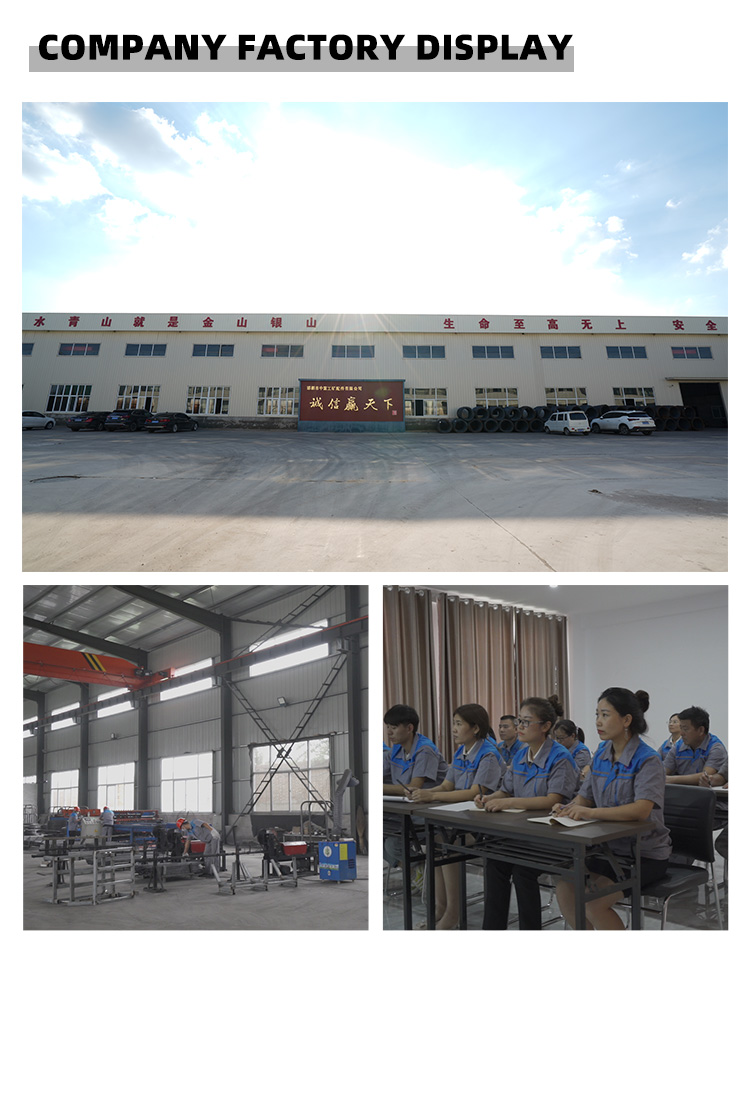

Why Choose Us

Our Strengths

More than 10 years of experience in the steel industry ensuring the best solutions on goods design, processing, transportation, and cost control.
Abundant ready stocks and sizes ensuring the shortest delivery time.
Quality assured. An MTC sheet will be presented with other shipment documents. We accept quality claims raised within one year.
Customized service to help avoid complex follow-up work, offering a professional one-stop purchasing experience.

Customer Photos & Comments

Certifications

Frequently Asked Questions

1. What are your primary product offerings?

Our primary product offerings include Friction Bolts (Split Set Rock Bolts), Solid Deformed Bars, Resin Capsules, Welded Wire Mesh Sheets, and Domed Plates designed for underground support.

2. How is the quality of the products guaranteed?

We ensure quality by providing a pre-production sample before mass production and conducting a final inspection before shipment. We also provide a Material Test Certificate (MTC) and accept quality claims within one year.

3. What is the typical packaging and delivery time?

Products are typically packed in 25kg bags with pallets. The delivery time ranges from 5 to 30 days depending on the specific order requirements.

4. What delivery terms and payment methods do you accept?

We accept FOB delivery terms. Payments can be made via USD currency using T/T, L/C, or D/P D/A transaction types.

5. Why choose your rock support products over other suppliers?

With over 10 years of experience in the steel and mining support industry, we offer direct factory production capabilities, optimized logistics, a robust supply chain, and customizable manufacturing services.

6. Do you support custom dimensions for split set bolts?

Yes. We supply split set bolts in various thicknesses (from 1.2mm to 3.5mm) and outer diameters (such as 30mm, 33mm, 40mm, 42mm, 43mm, 46mm, etc.) to meet different engineering requirements.
