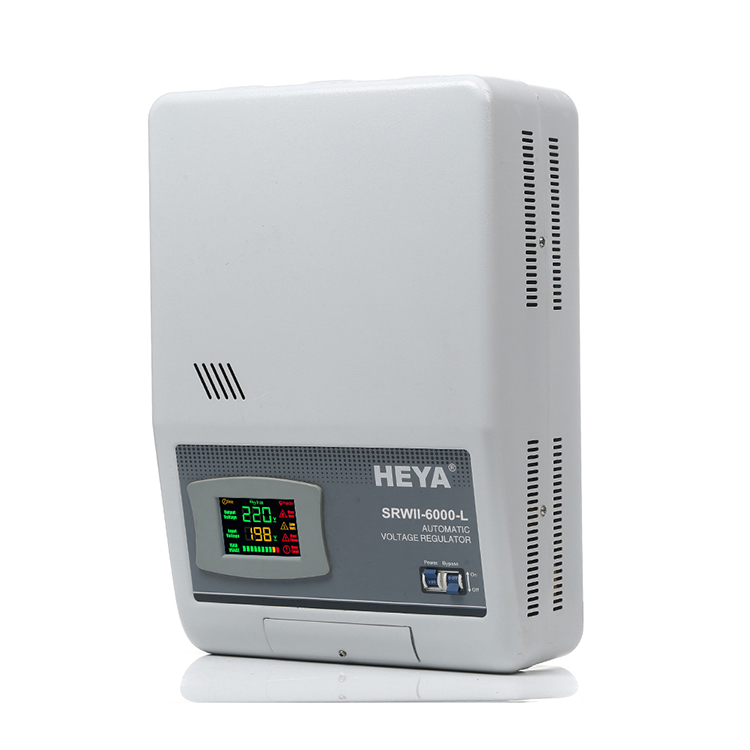

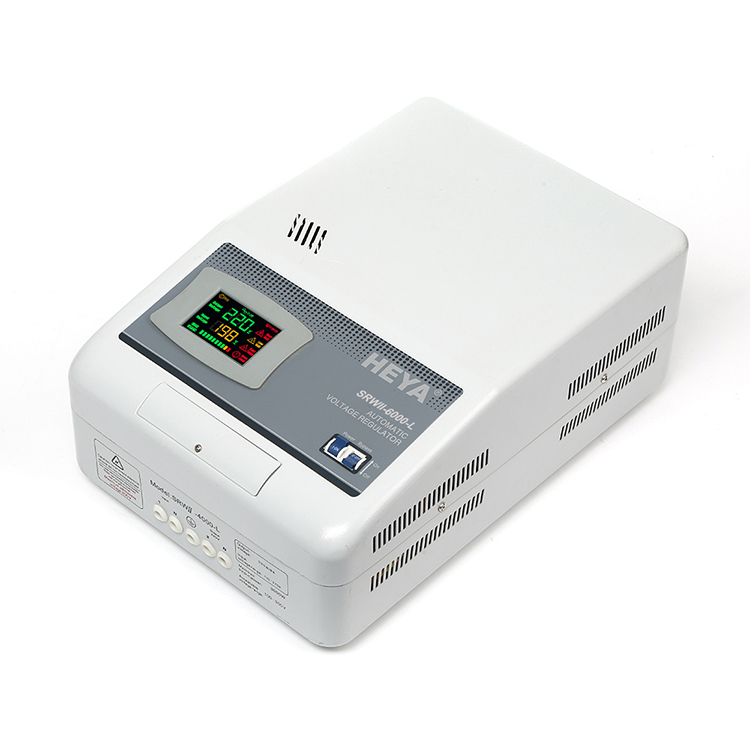

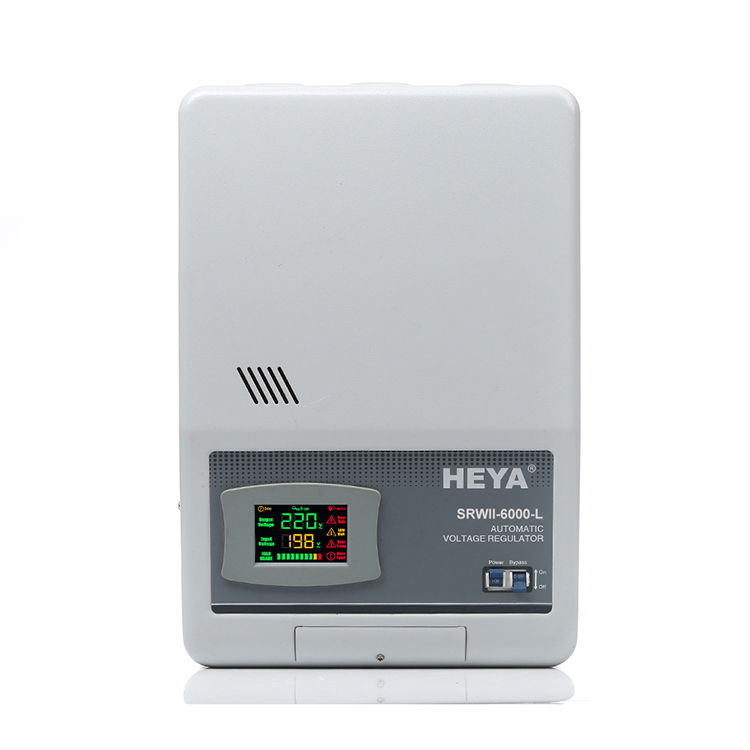

| Model | SRWII-6000-L | ||
| Nominal Power | 6000VA | ||
| Power Factor | 0.6-1.0 | ||
| Input | |||
| Operating Voltage Range | 95~285V | Regulation Voltage Range | 110~275V |
| Frequency | 50HZ | Connection Type | Input terminal block |
| Output | |||
| Operating Voltage | 180~255V | High Cut Voltage | 255V |
| Low Cut Voltage | 180V | Safety Cycle | 8 Seconds / 180 Seconds (Optional) |

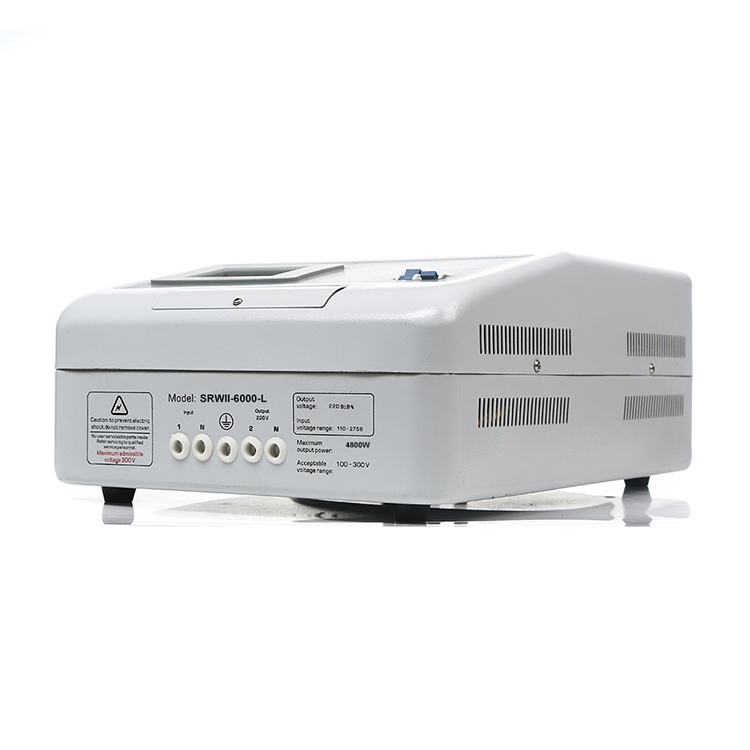

| Frequency | 50HZ | Connection Type | Output terminal block |
| Regulation | |||
| Regulation % | 8% | Number of Taps | 7 |

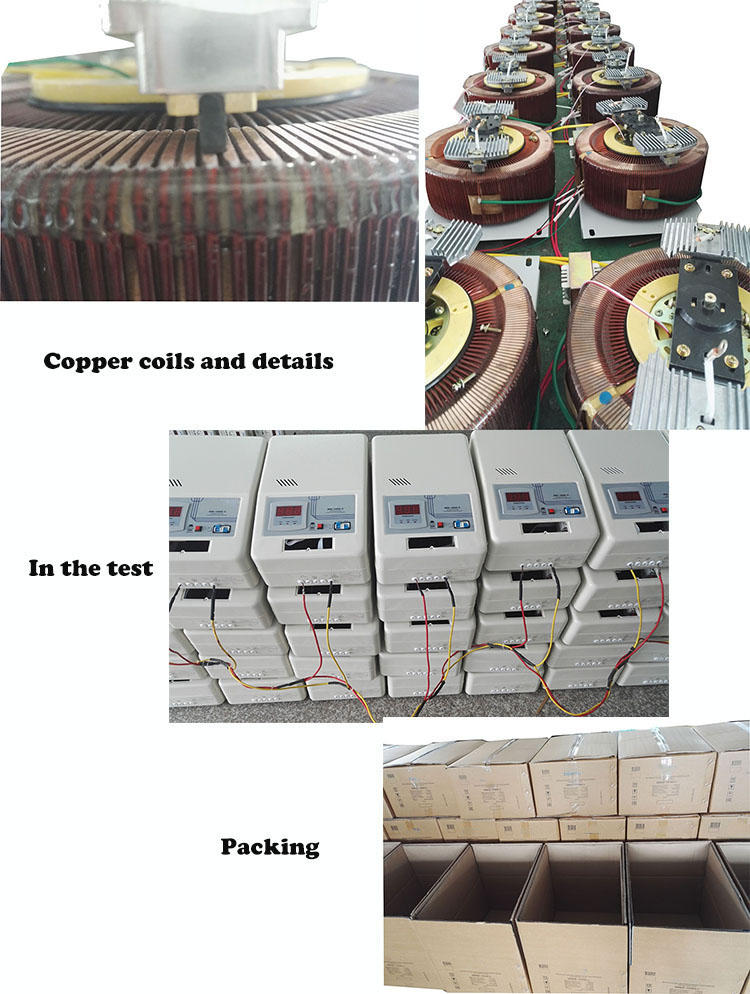

| Transformer Type | Toroidal auto transformer | Regulation Type | Relay type |
| Indicators | |||

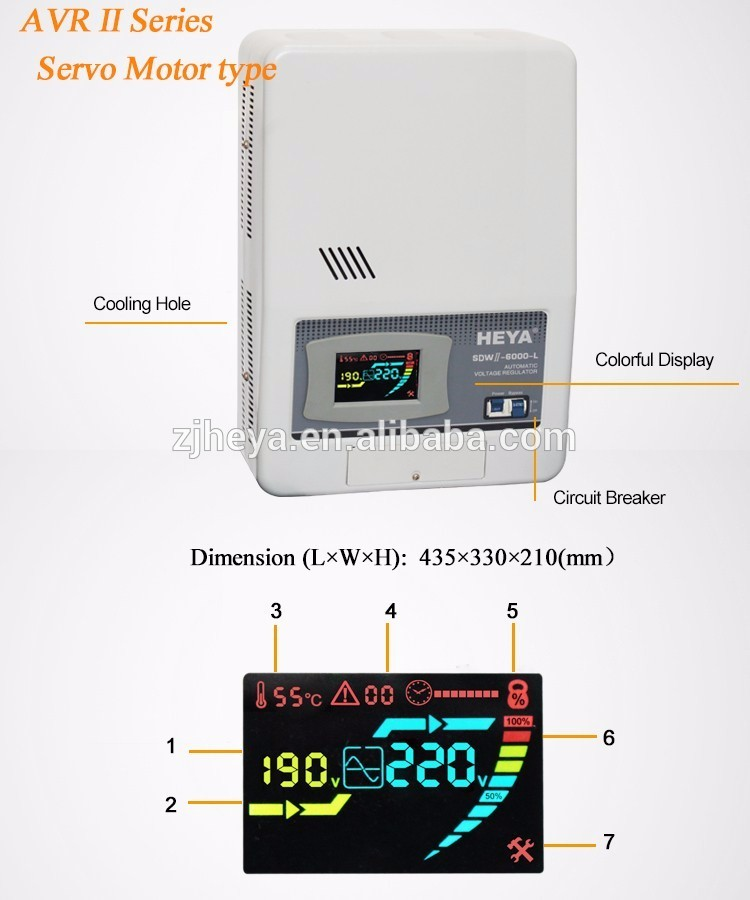

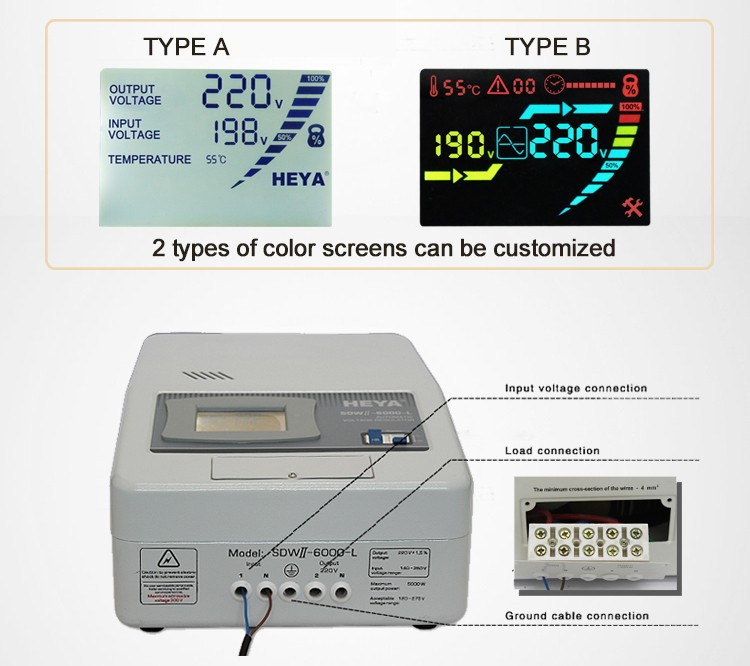

| LED display | Input voltage, Output voltage, Delay time, Load usage, Normal working | ||
| Protection | |||
| Over Temperature | Auto Shutdown at 120 ℃ | Protection | Auto Shutdown |
| Overload | Auto Shutdown | Over / Under Voltage | Auto Shutdown |
