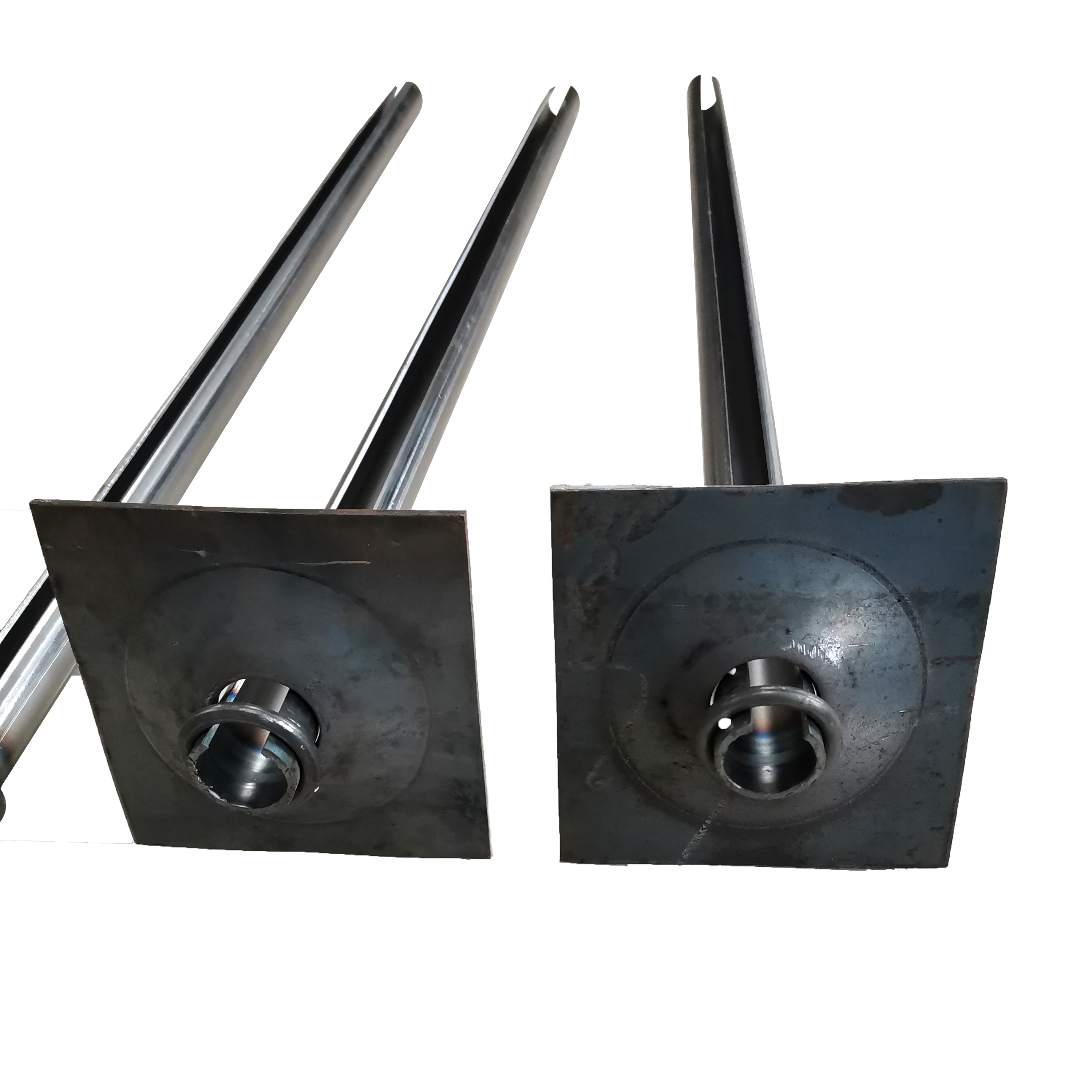

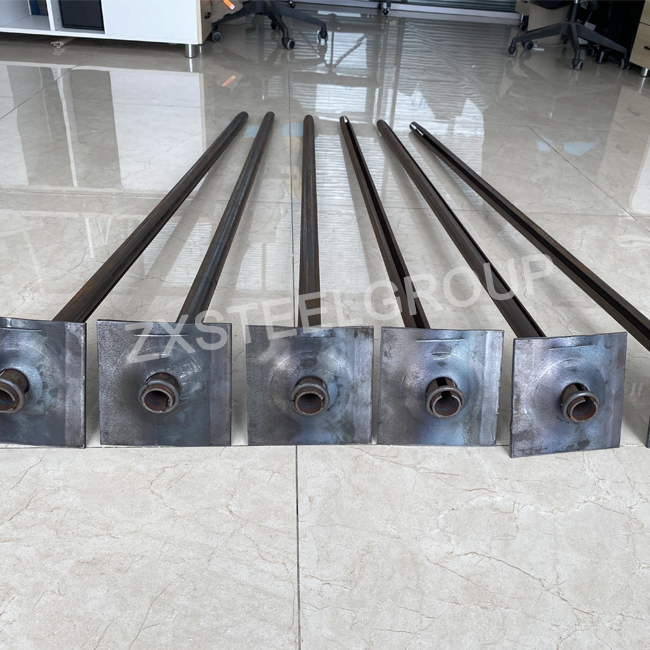

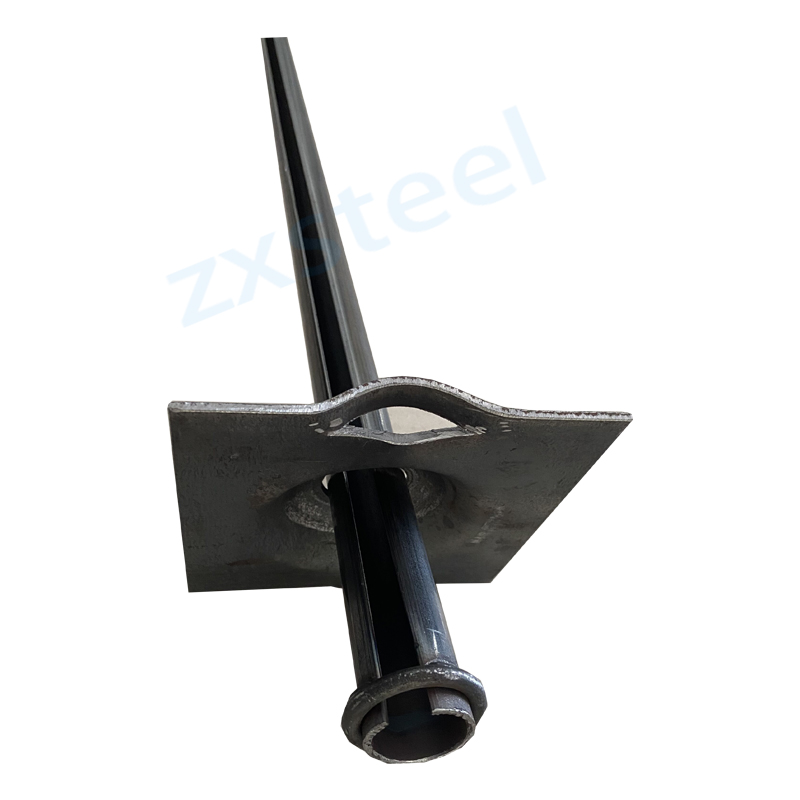

The split bolt is a new type of anchor that fully anchors the rock and actively strengthens the surrounding rock, its three-dimensional part is a longitudinally slit high-strength steel pipe.

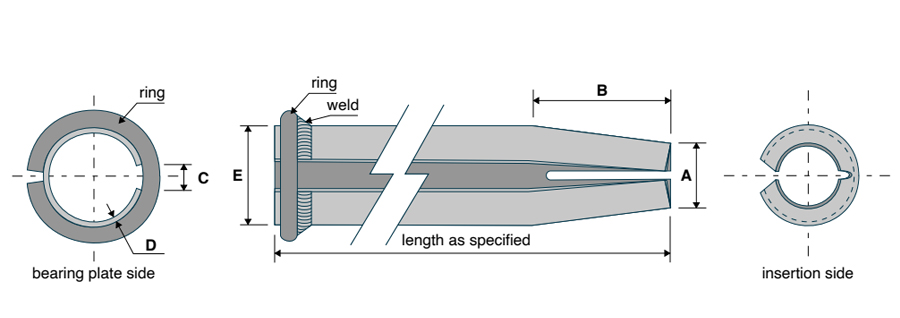

| Code | Specification | SS-33(mm) | SS-39(mm) | SS-42(mm) | SS-47(mm) |
|---|---|---|---|---|---|
| A | Taper Diameter | 28 | 30 | 34 | - |
| B | Taper Length | 60 | 65 | 75 | - |
| C | Slot Width | 12 | 16 | 20 | - |
| D | Steel Thickness | 2.3 | 2.3 | 3 | - |
| E | Bolt Size | 33 | 39 | 42 | - |
| Dia. | 33mm | 39mm | 42mm | 47mm |
|---|---|---|---|---|
| Thickness | 1.8-3.2mm (or as per customer requirements) | |||
| Slot Size | 6-8mm (or as per customer requirements) | |||
| Elongation | >16% | |||
| Anchoring | 3-16 Tons | |||
| Min. Yield Strength | 78kn | 88kn | 95kn | 124kn |
| Min. Breaking Strength | 103kn | 116kn | 123kn | 160kn |
| Max. Breaking Strength | 117kn | 132kn | 140kn | 186kn |

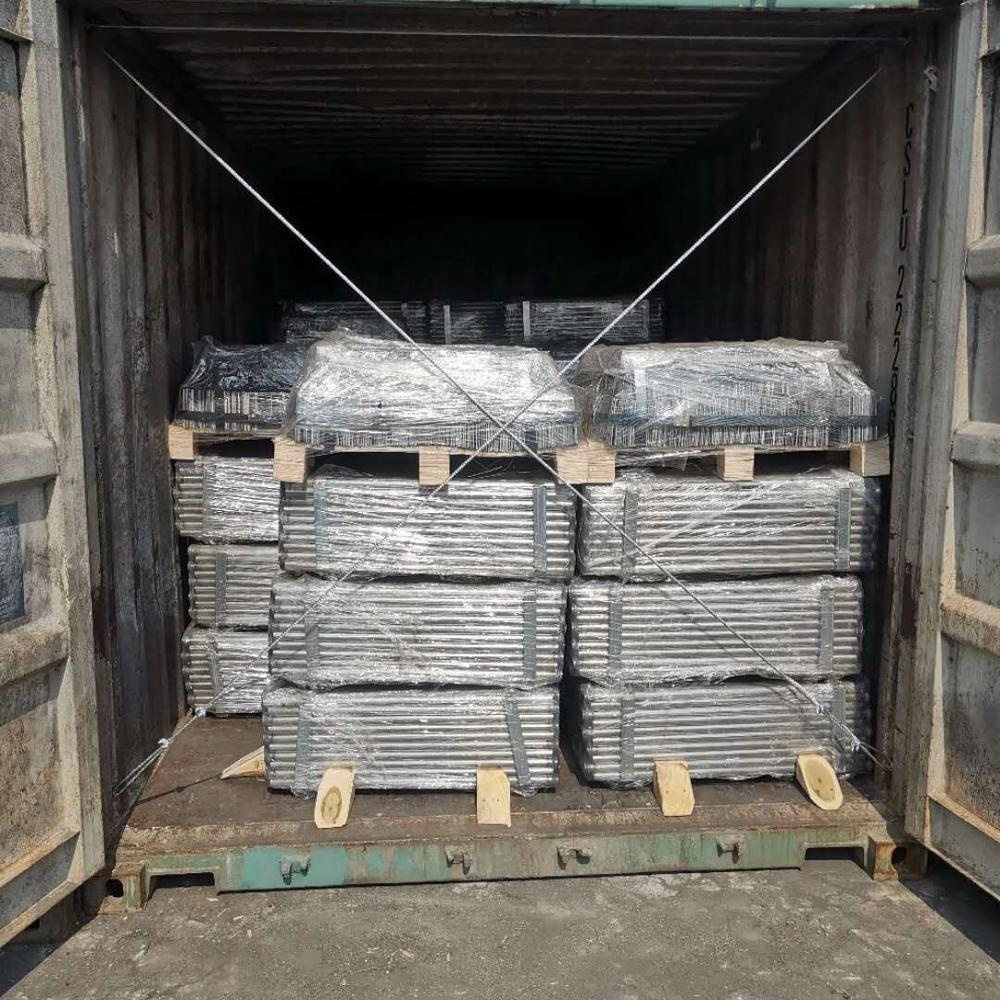

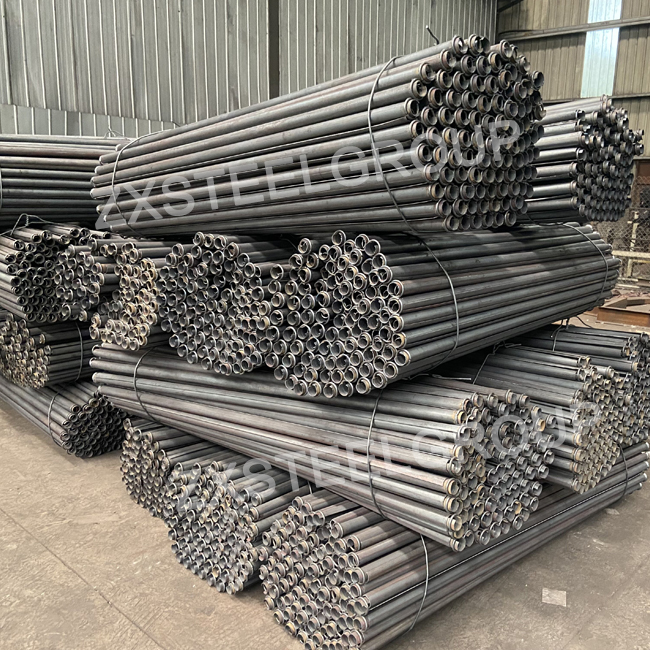

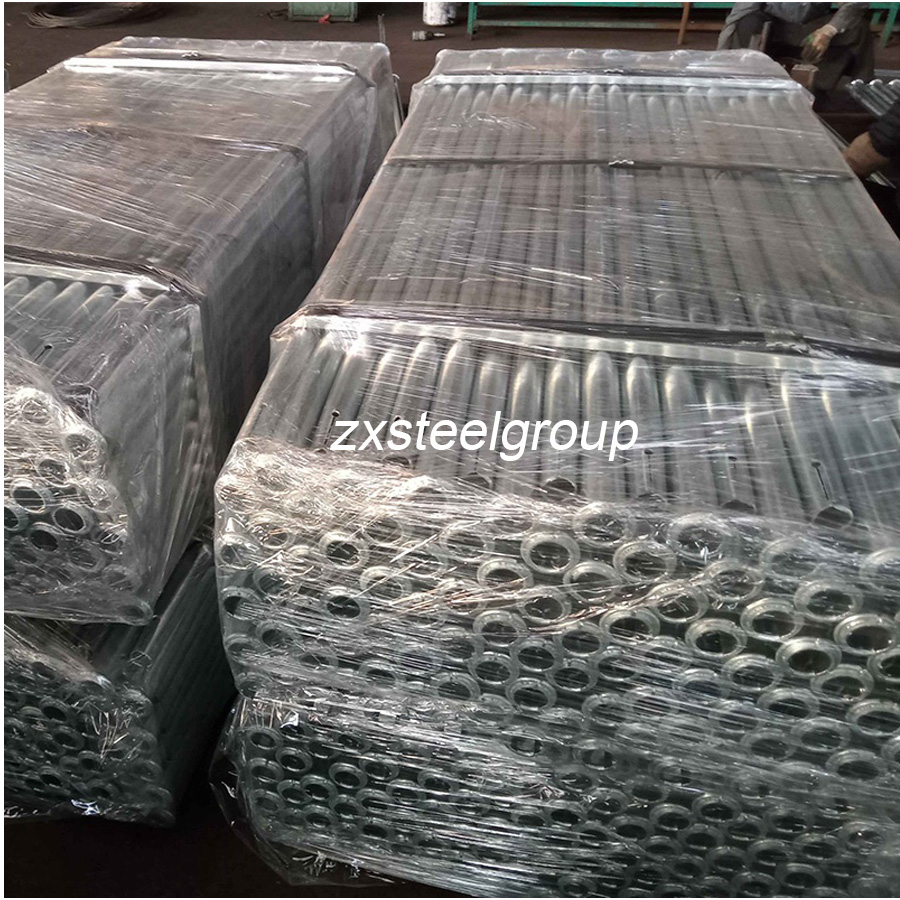

Packaging Details: Packed in bundle with iron wire or as your request
Delivery Details: Within 15-21 workdays after receiving your payment
Our products are shipped to all parts of the world, and will be shipped as soon as possible after receiving your order, and we will promptly tell you about all the movements of the products.

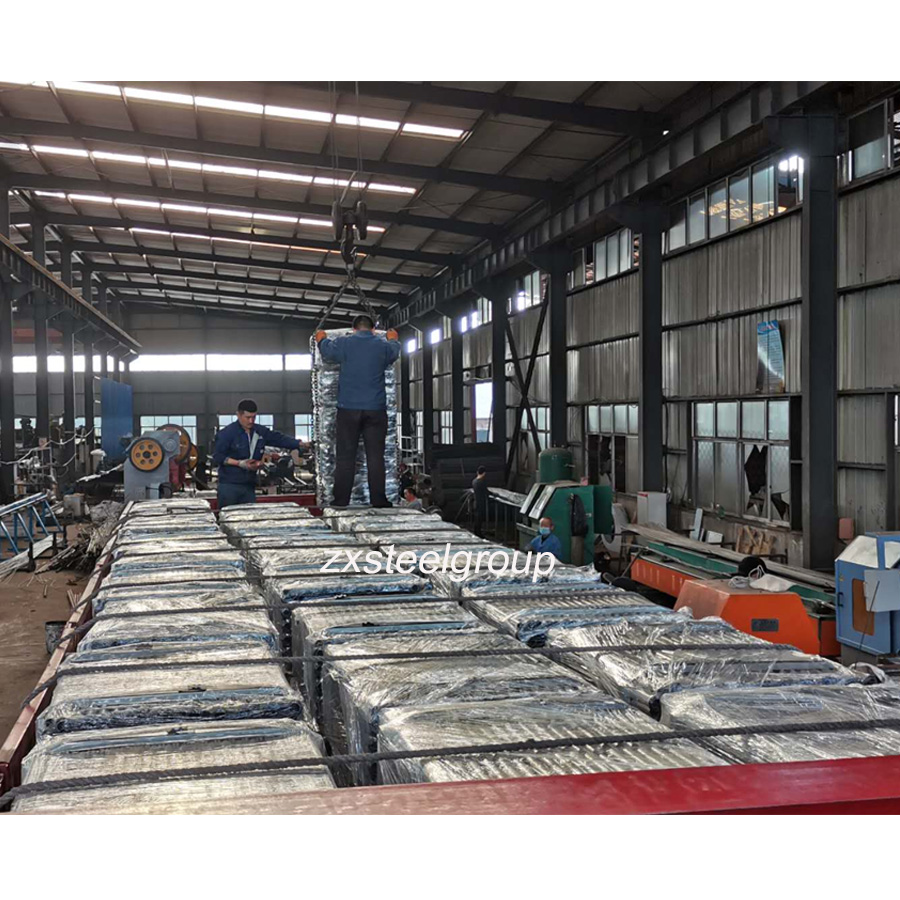

Large inventory, factory direct sales, high processing capacity, quick response around the clock.

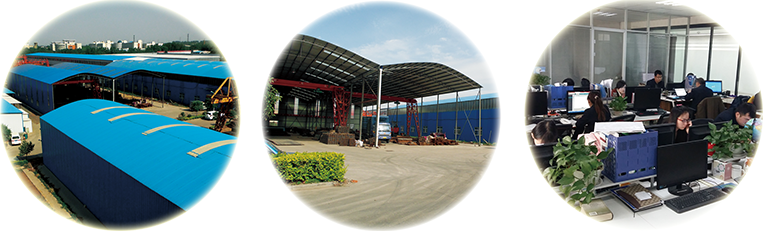

We have been engaged in steel trade plate processing nearly 20 years. We establish branch companies and processing plants. We strive to provide customers with more convenient, thoughtful, high quality service. And our products have been exported to countries and regions over the world, like Russia, India, Pakistan, Thailand, Korea, Brazil, South Asia and so on. We have inventory, resources, and experience to meet your needs.
We adhere to ISO9001-2008 quality control system. We have also obtained the production license of railway products from The Ministry of Railways of China.

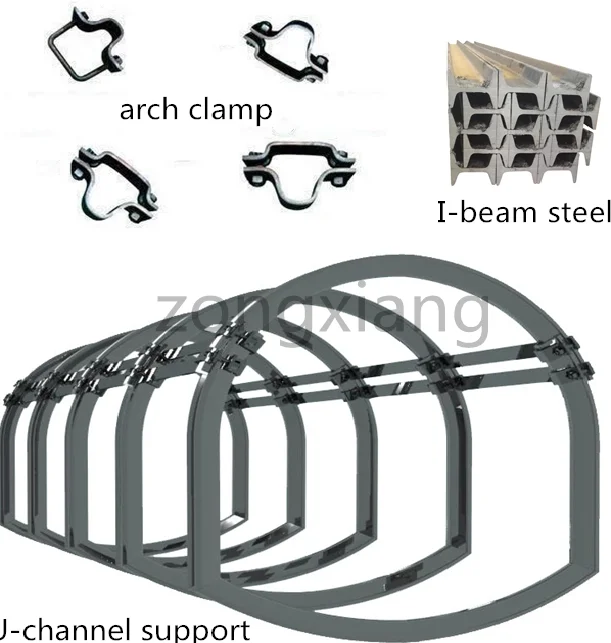

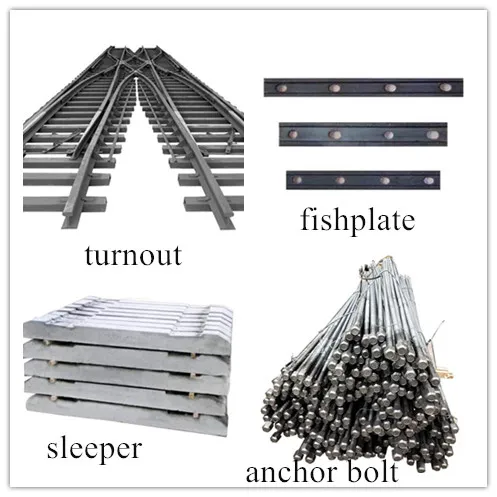

In addition to steel rail, we also have accessories of steel rail (bolts and nuts, fishplate, rail base plate, rail clip, rail spike, turnout and so on.) and u-channel support, arch clamp, i-beam steel.
